Method 11:
• Move at “Faster Speed” in the negative direction
• When the home sensor outputs a rising edge, decelerate and stop.
• Move at “Slower Speed” in the positive direction
• Until the next index pulse is reached

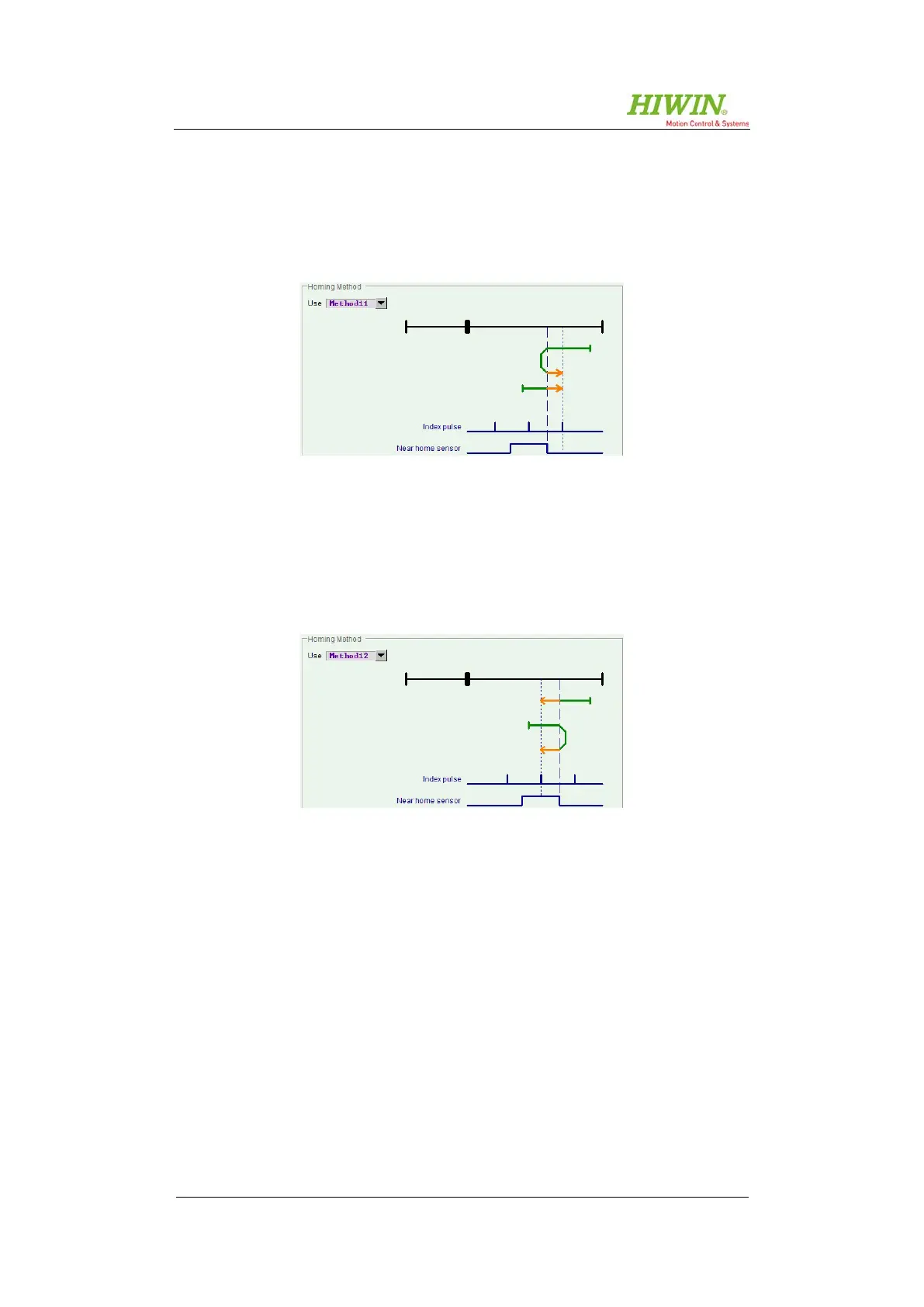

Figure 8.58: Homing method 11
Method 12:
• Move at “Faster Speed” in the negative direction
• Until the home sensor outputs a falling edge
• On reaching this, move at “Slower Speed” in the negative direction until the
home sensor (logical 1) and the next index pulse is reached
Figure 8.59: Homing method 12
