Assembly and Commissioning Instructions Servo amplifier D1-N

15.10.2015
AC servo Hall sensor
The
“Hall Sensor”
tab contains all settings for commutating the motor with Hall
sensors. If this function is activated, there is no commutation finding when the
drive amplifier is restarted.
Both digital and analogue Hall sensors are available.

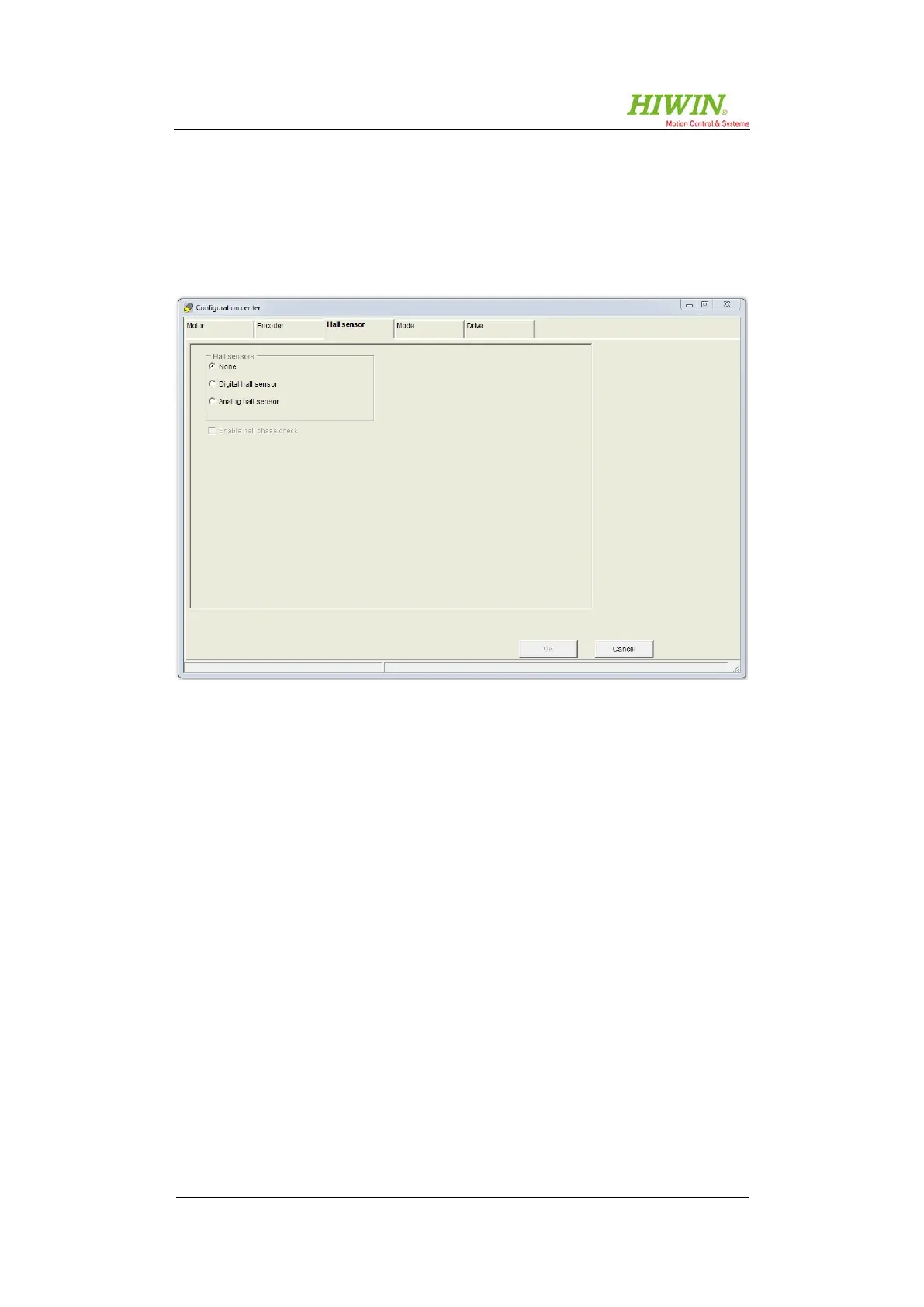

Figure 8.18: “Configuration center” – AC servo Hall sensor without CoE
