Hiwin D1-N Series Assembly And Commissioning Instructions

94 / 183
Assembly and Commissioning Instructions Servo amplifier D1-N

15.10.2015
TM operation mode selection
The drive amplifier operation mode is defined in the
“Mode”
tab.
“Stand-Alone”
mode should be selected for commissioning without an external controller. De-
pending on the device type present, not all operation modes are available. Opera-
tion modes with I/O control are not available for devices with an EtherCAT inter-
face. Vice versa, devices without an EtherCAT interface cannot be taken into Ether-
CAT operation mode.
“Stand-alone mode”:
The nominal values for speed, acceleration and position are generated in the drive
amplifier.

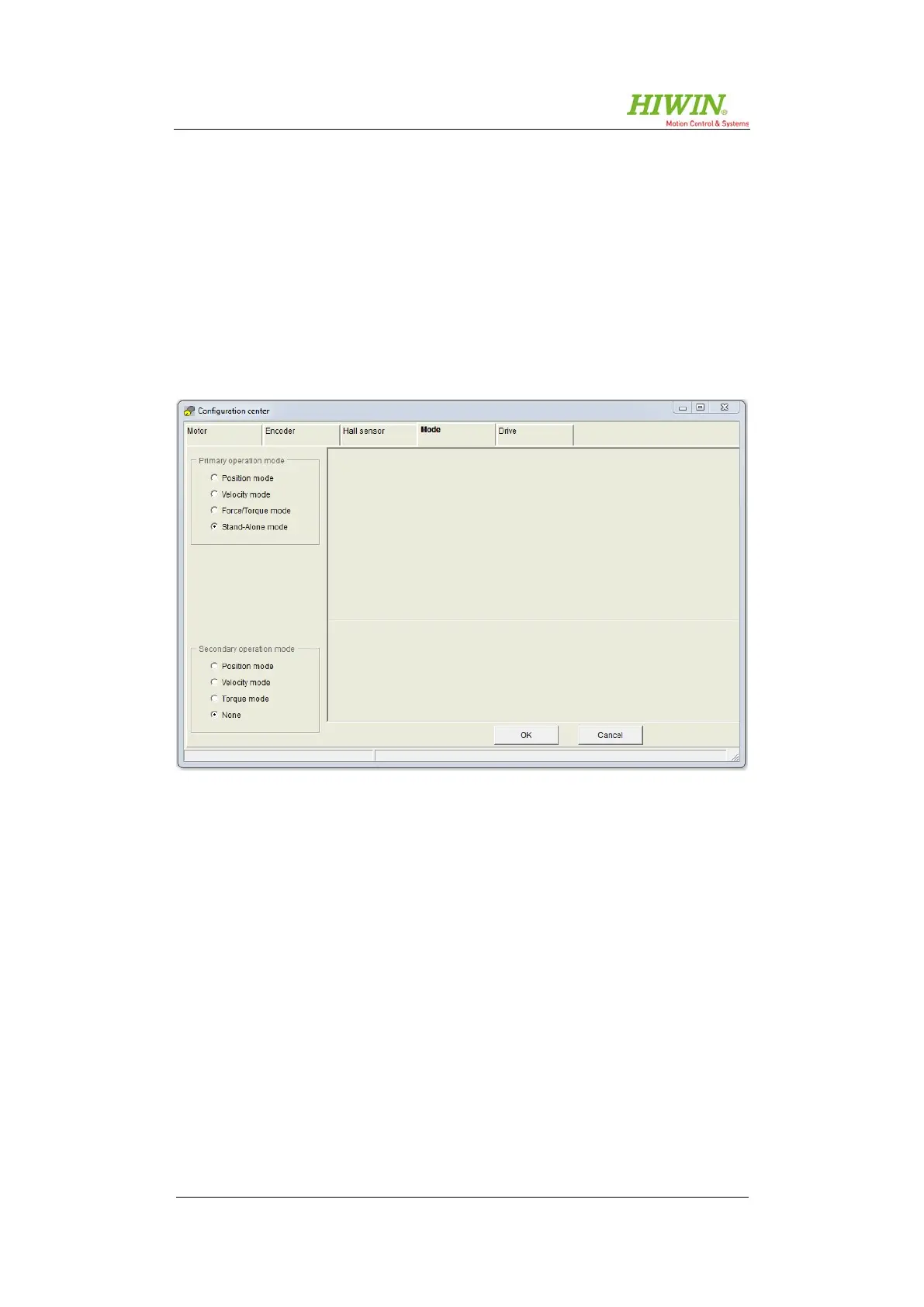

Figure 8.39: “Configuration Center” – stand-alone mode without CoE
