EQUIP
®
Series ACUIX™ IP PTZ Dome Installation and Configuration Guide
Document 800-04194V1 Rev A 15
07/11
Connecting the Field Wiring
Once the housing is installed, you can connect the field wiring. The printed
circuit board, or interface board, inside the housing has inputs for power,
network, and alarm cables. There is also a button for resetting the dome to its
default settings (see Figure 2-10).

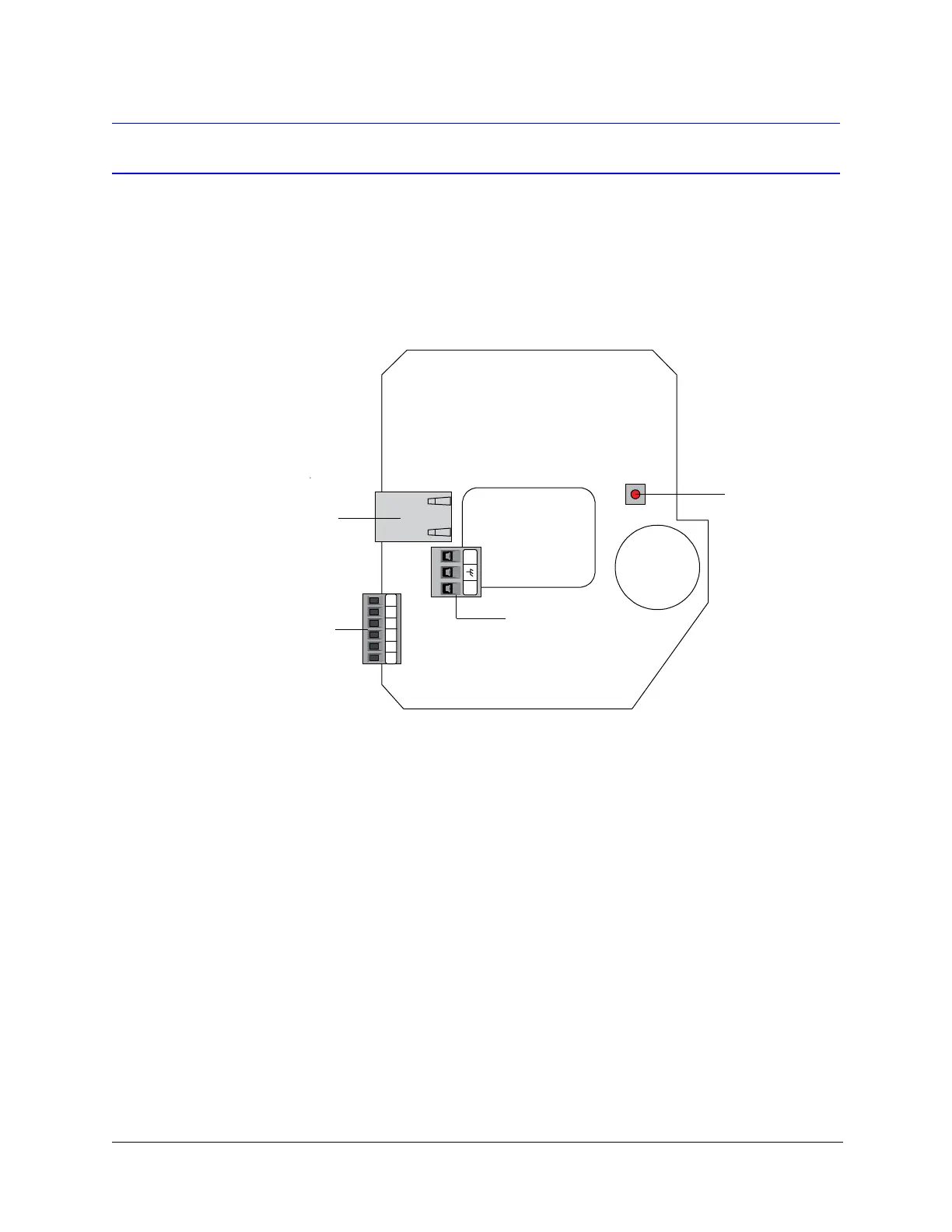

Figure 2-10 ACUIX IP Housing Interface Board Connections
CAUTION
To prevent damage to the interface board, follow
standard industry precautions for electrostatic discharge sensitive
devices.
CAUTION
Surge suppression, electrostatic discharge prevention,
and electromagnetic compatibility will be compromised if the unit is not
connected to a good earth ground.
CAUTION
To make good wire contact and to ensure that wire does
not short to adjacent wires, fully insert wire into terminal block. Ensure
that no bare wires are touching.
A1 CM A2 A3 CM A4
AC AC
J6
J1
J4
SW1
Reset
button
Ethernet
port
Alarms
Power (24 V AC)
