Series ACUIX™ IP PTZ Dome Installation and Configuration Guide
Document 800-04194V1 Rev A 21
07/11
Attaching the Bubble to an In-Ceiling Housing
To attach the bubble to the housing:
1. Attach the safety cable from the bubble to the bracket inside the housing.
2. Align the three hooks on the bubble with the three mounting posts on the
housing.
3. Turn the bubble clockwise to lock it into the housing.

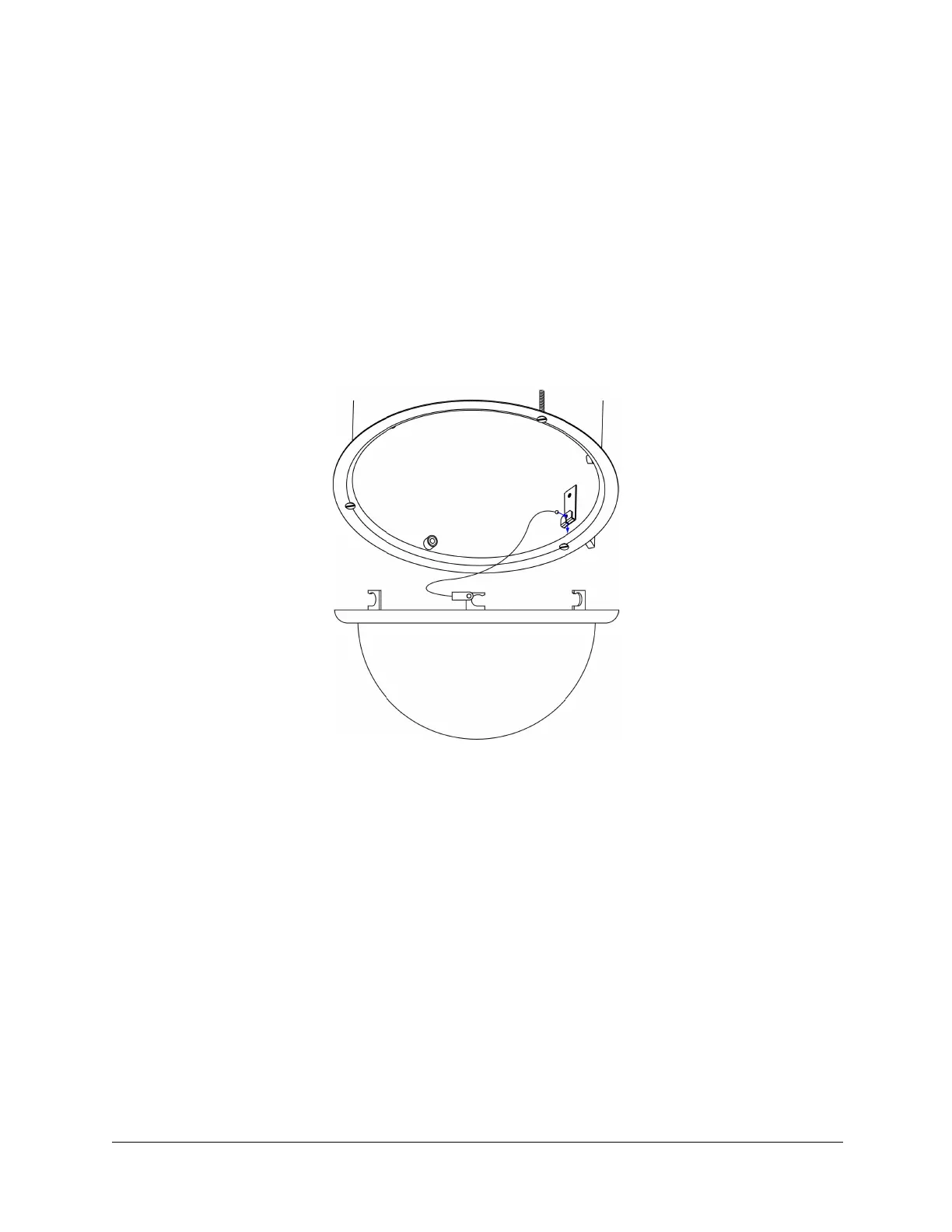

Figure 3-4 In-Ceiling Housing Bubble Installation
