Chapter 6
Removing and Replacing Components
Removing and Replacing Server Covers and Bezel
160
Removing and Replacing the Front Bezel on a Pedestal-Mounted Server
You must remove the front bezel from the chassis to gain access to the power supplies and optical drive.
Removing the Front Bezel
To remove the front bezel, follow these steps:
Step 1. Use the indentation at the top edge of the bezel to pull the bezel away from the chassis and to a 45
degree angle.

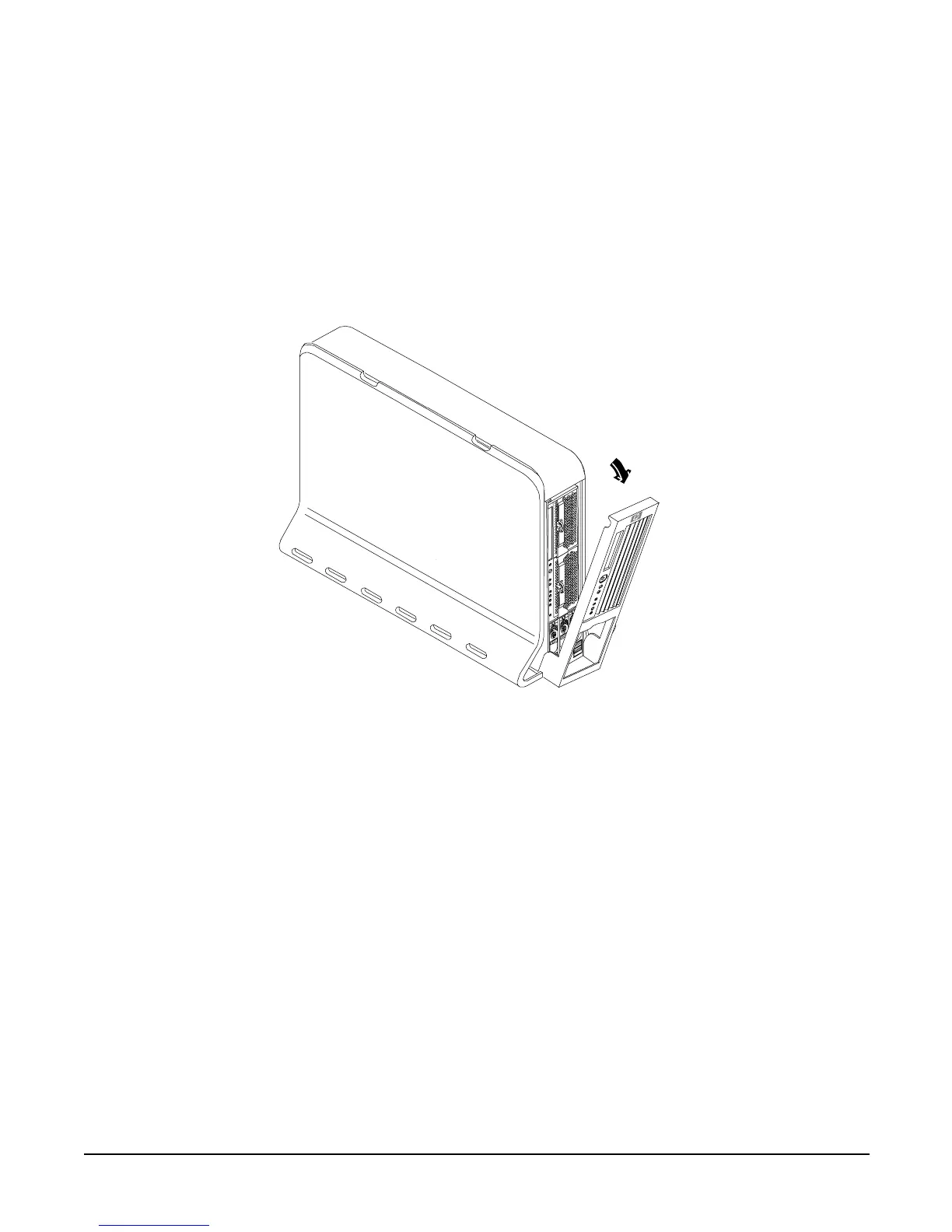

Figure 6-14 Removing the Front Bezel on a Pedestal-Mounted Server
Step 2.
Lift the bezel off the mounting tabs and away from the chassis.
