HP 9000 rp3410 - Figure 6-20 Removing the Power Supply; Figure 6-21 Replacing the Power Supply; Replacing the Power Supply

Chapter 6
Removing and Replacing Components
Removing and Replacing the Power Supply
165
Step 3. Press the power supply release lever down and slide the power supply out of the server.

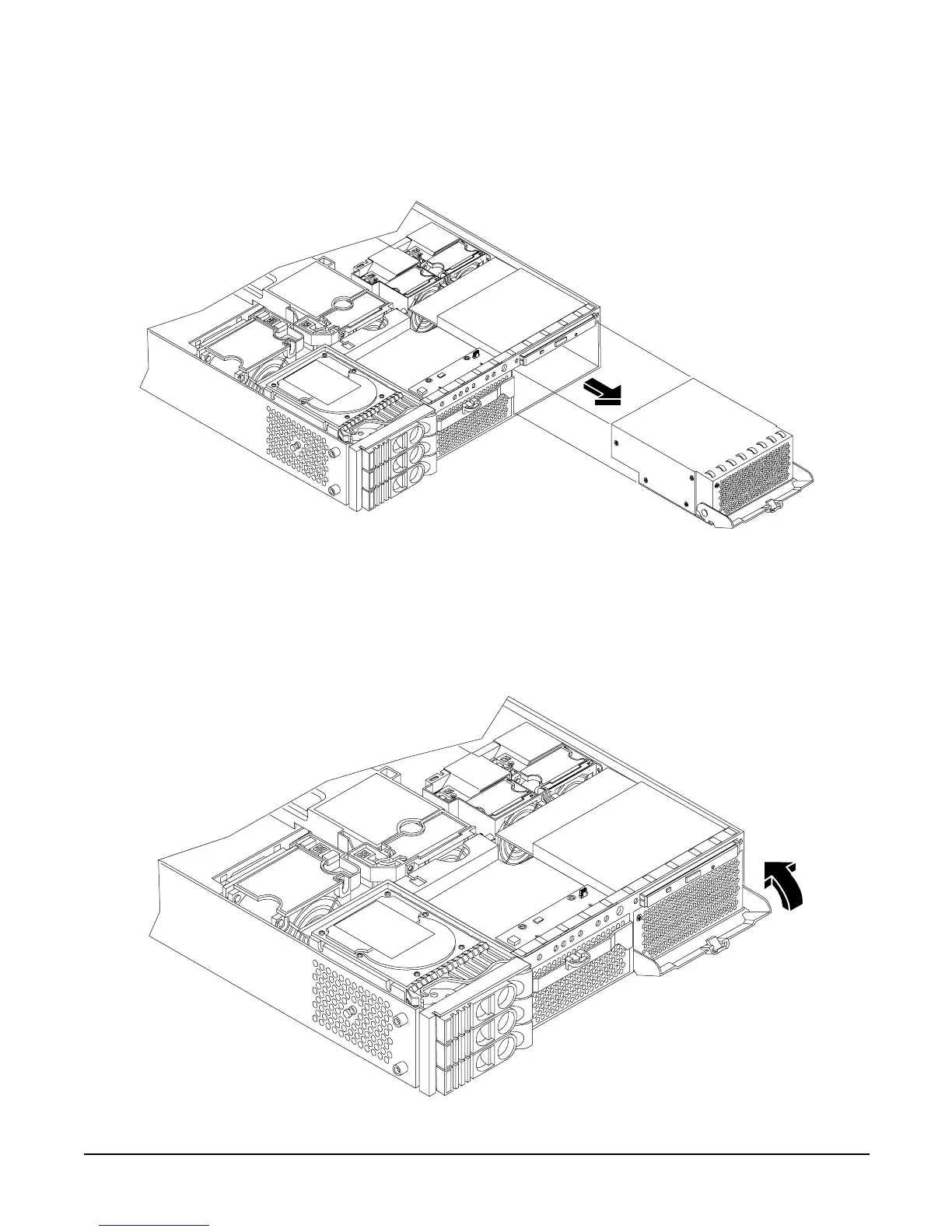

Figure 6-20 Removing the Power Supply
Replacing the Power Supply
To replace the power supply, follow these steps:
Step 1. Open the power supply release lever and slide the power supply into place.
Figure 6-21 Replacing the Power Supply
