Chapter 6
Removing and Replacing Components
Removing and Replacing System Memory
178
Figure 6-33 shows the DIMM slot identification.

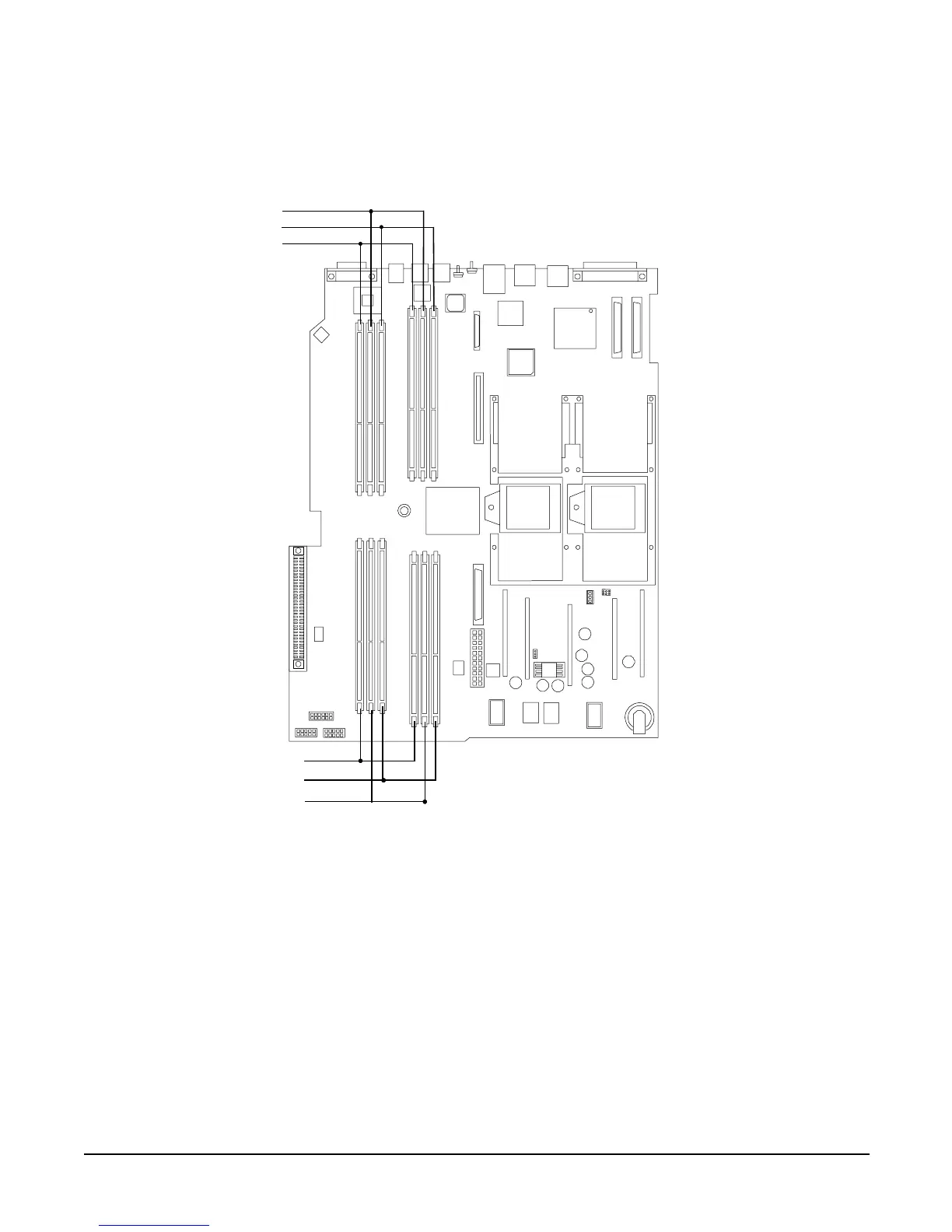

Figure 6-33 DIMM Slot Identification
rp3410 Memory Configuration
The HP 9000 rp3410 supports DDR SDRAM DIMMs with ECC and chip spare protection. This server has 12
DIMM slots and supports a maximum of 6 GB of total system memory. Memory usage in the rp3410 server
varies with the model designation. In the original server (model A7136A), memory is installed as one or two
pairs in the first quad (group of four). This enables memory configurations of two, four, eight, or twelve
DIMMs. In the current server (model A7136B), memory must be installed as quads. This enables memory
configurations of four, eight, or twelve DIMMs.
Thus, the HP 9000 rp3410 server must include a minimum of 512 MB (model A7136A) or 1 GB (model
A7136B) and can include up to 6 GB of memory in combinations of 256 MB, 512 MB, and 1 GB DIMMs.
Different size DIMMs can be installed in the server, but all four DIMMs in a quad must be identical.
Rear
Front
Pair 3 (2A & 2B)
Pair 2 (1A & 1B)
1A
1B
3A
3B
