HP 9000 rp3410 - Figure 6-30 Open the Release Clip

Chapter 6
Removing and Replacing Components
Removing and Replacing Airflow Guides
174
c. Rotate the clip clockwise to release the latch.

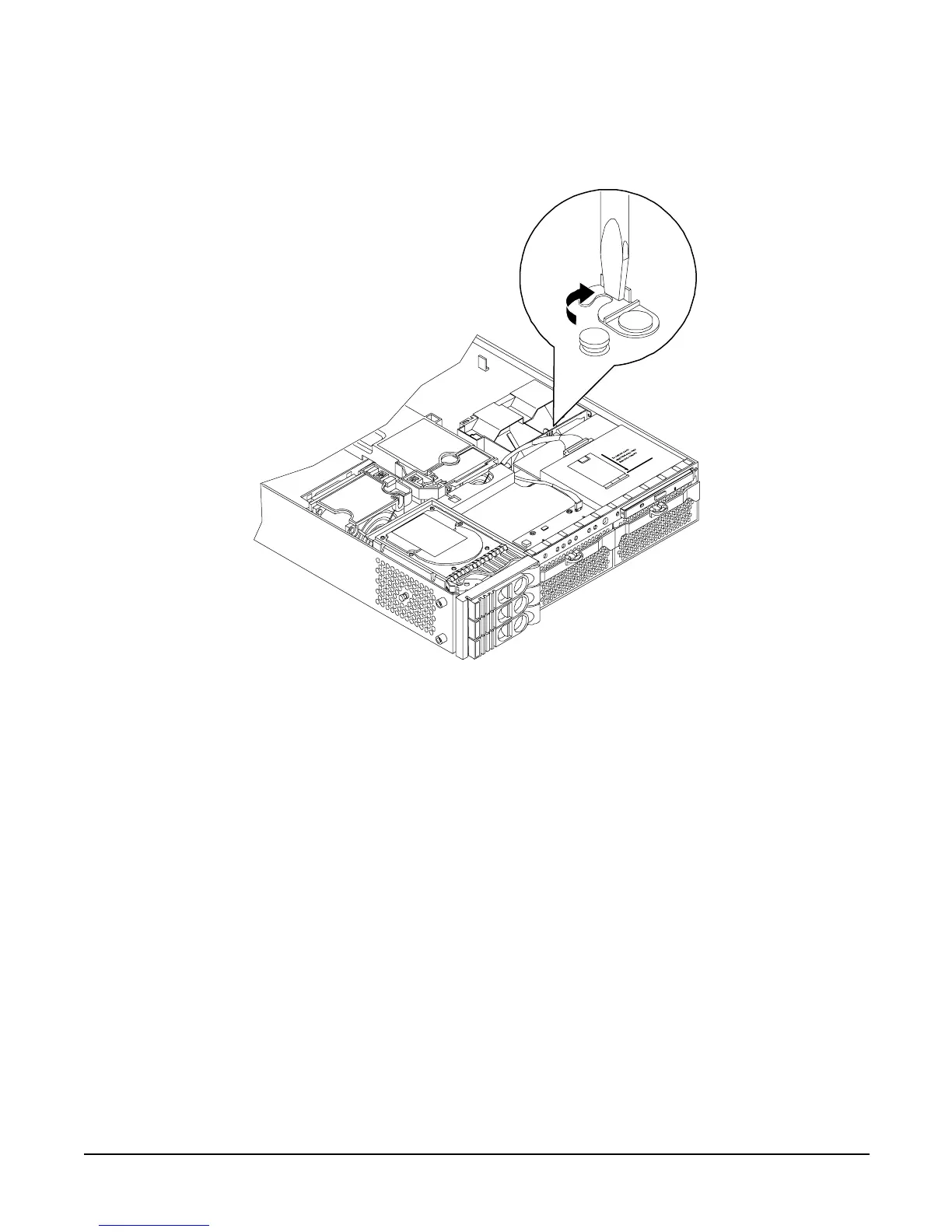

Figure 6-30 Open the Release Clip
d. Disconnect the power cable connected to the guide from the system board by squeezing the clip.
