HP 9000 rp3410 - Figure 6-45 Aligning the Dual Processor Module

Chapter 6
Removing and Replacing Components
Removing and Replacing a Dual Processor Module
192
Step 6. Use the four locator posts on the heatsink and the turbo fan power cable to properly align the fan
and dual processor module on the system board (Figure 6-45). The four locator posts will fit in
locator holes on the system board processor module mount. The turbo fan power cable must be
positioned so that it is located on the side of the heatsink that faces the front of the server.

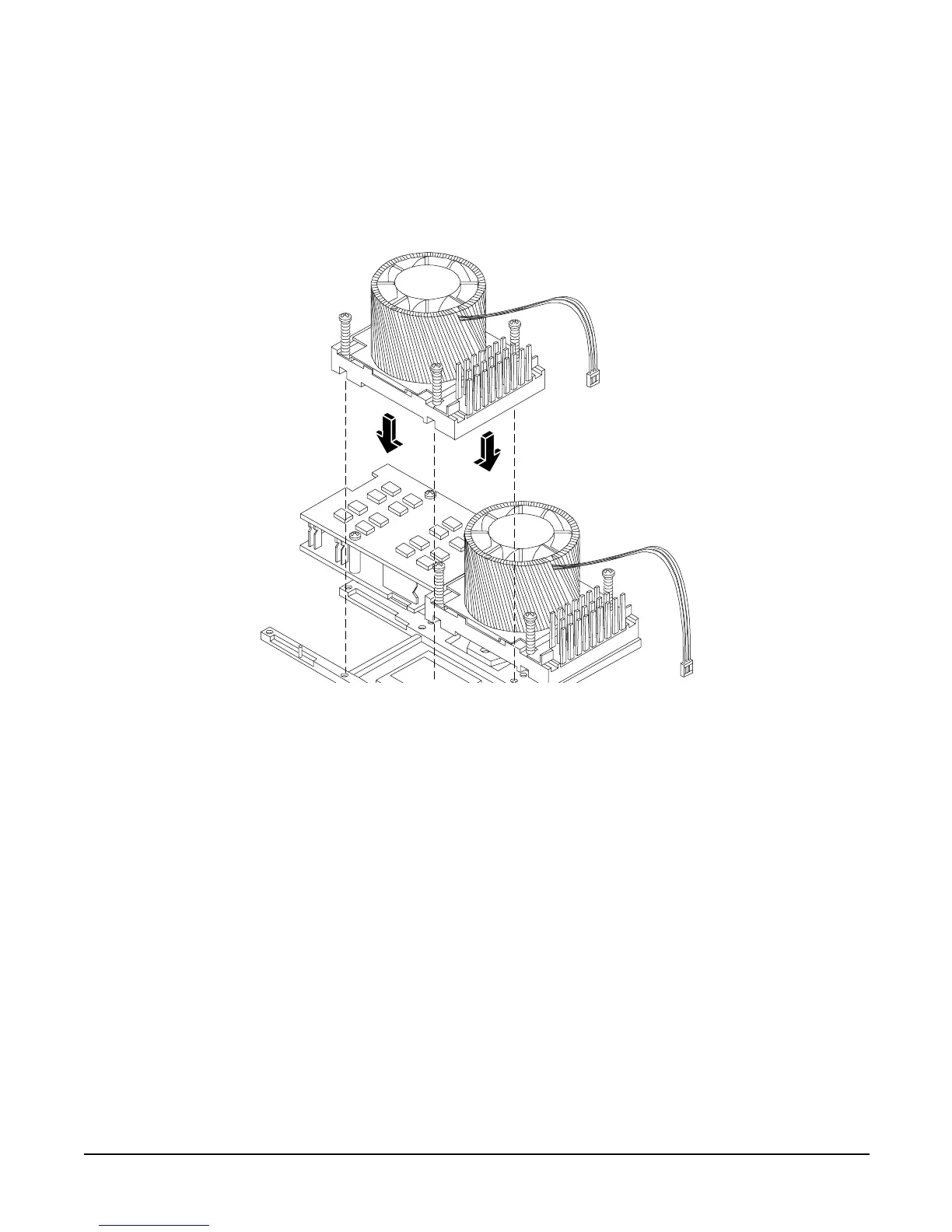

Figure 6-45 Aligning the Dual Processor Module
