multicast packets : 6 , CRC alignment errors : 0
undersize packets : 0 , oversize packets : 0
fragments : 0 , jabbers : 0
collisions : 0 , utilization : 0
# Get the traffic statistics from the NMS through SNMP. (Details not shown.)
Alarm function configuration example
Network requirements
As shown in Figure 33, configure the device to monitor the incoming traffic statistic on
GigabitEthernet 1/0/1, and send RMON alarms when the following events occur:
• The 5-second delta sample for the traffic statistic crosses the rising threshold (100).
• The 5-second delta sample for the traffic statistic drops below the falling threshold (50).

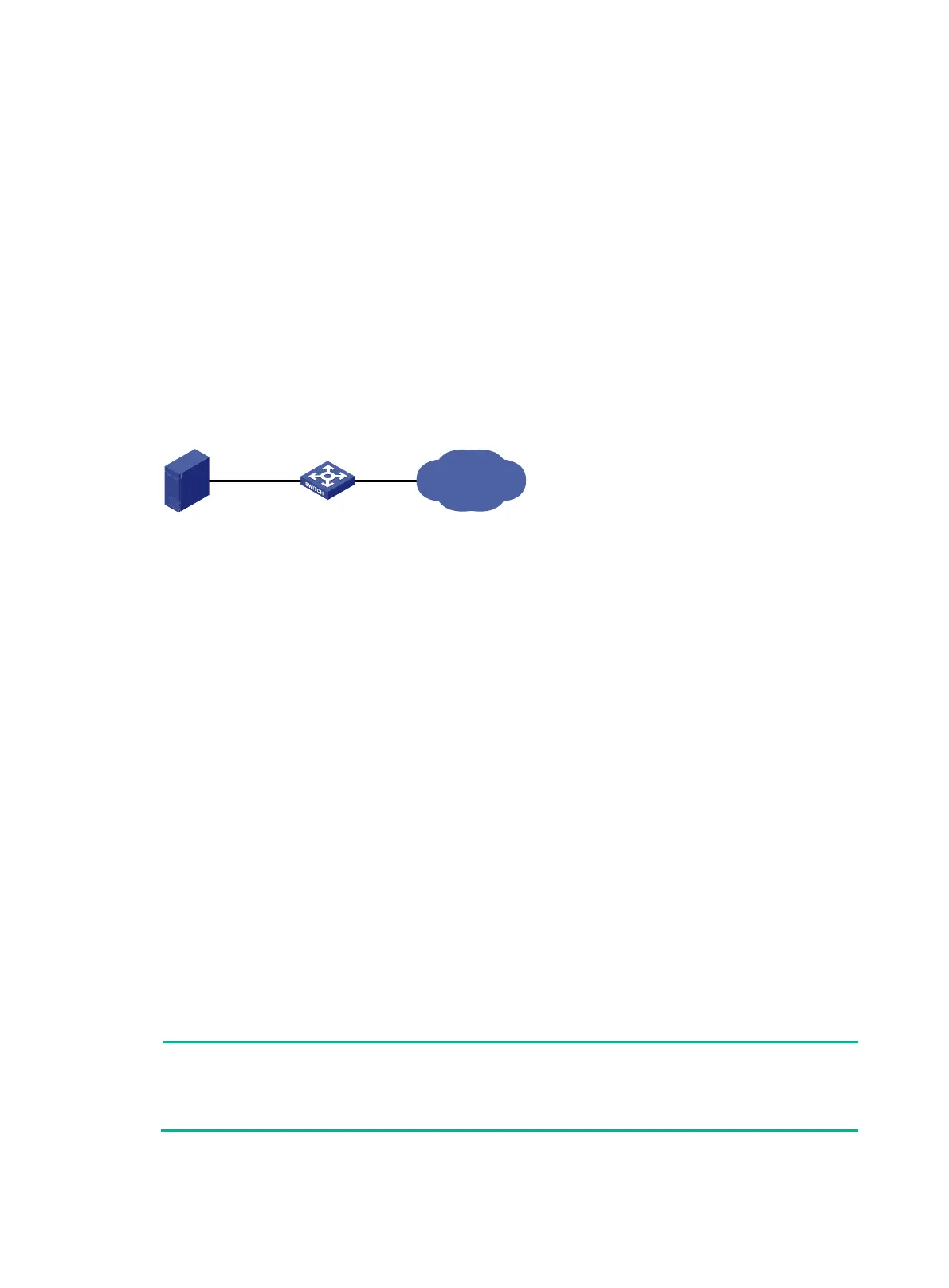

Figure 33 Network diagram
Configuration procedure
# Configure the SNMP agent (the device) with the same SNMP settings as the NMS at 1.1.1.2. This
example uses SNMPv1, read community public, and write community private.
<Sysname> system-view
[Sysname] snmp-agent
[Sysname] snmp-agent community read public
[Sysname] snmp-agent community write private
[Sysname] snmp-agent sys-info version v1
[Sysname] snmp-agent trap enable
[Sysname] snmp-agent trap log
[Sysname] snmp-agent target-host trap address udp-domain 1.1.1.2 params securityname
public
# Create an RMON Ethernet statistics entry for GigabitEthernet 1/0/1.
[Sysname] interface gigabitethernet 1/0/1
[Sysname-GigabitEthernet1/0/1] rmon statistics 1 owner user1
[Sysname-GigabitEthernet1/0/1] quit
# Create an RMON event entry and an RMON alarm entry to send SNMP notifications when the
delta sample for 1.3.6.1.2.1.16.1.1.1.4.1 exceeds 100 or drops below 50.
[Sysname] rmon event 1 trap public owner user1
[Sysname] rmon alarm 1 1.3.6.1.2.1.16.1.1.1.4.1 5 delta rising-threshold 100 1
falling-threshold 50 1 owner user1
NOTE:
1.3.6.1.2.1.16.1.1.1.
4.1 is the object instance for GigabitEthernet 1/0/1, where 1.3.6.1.2.1.16.1.1.1.
4
represents the object for total incoming traffic statistics, and 1 is the RMON Ethernet statistics entry
index for GigabitEthernet 1/0/1.
# Display the RMON alarm entry.
Server
Device
GE1/0/1
IP network
