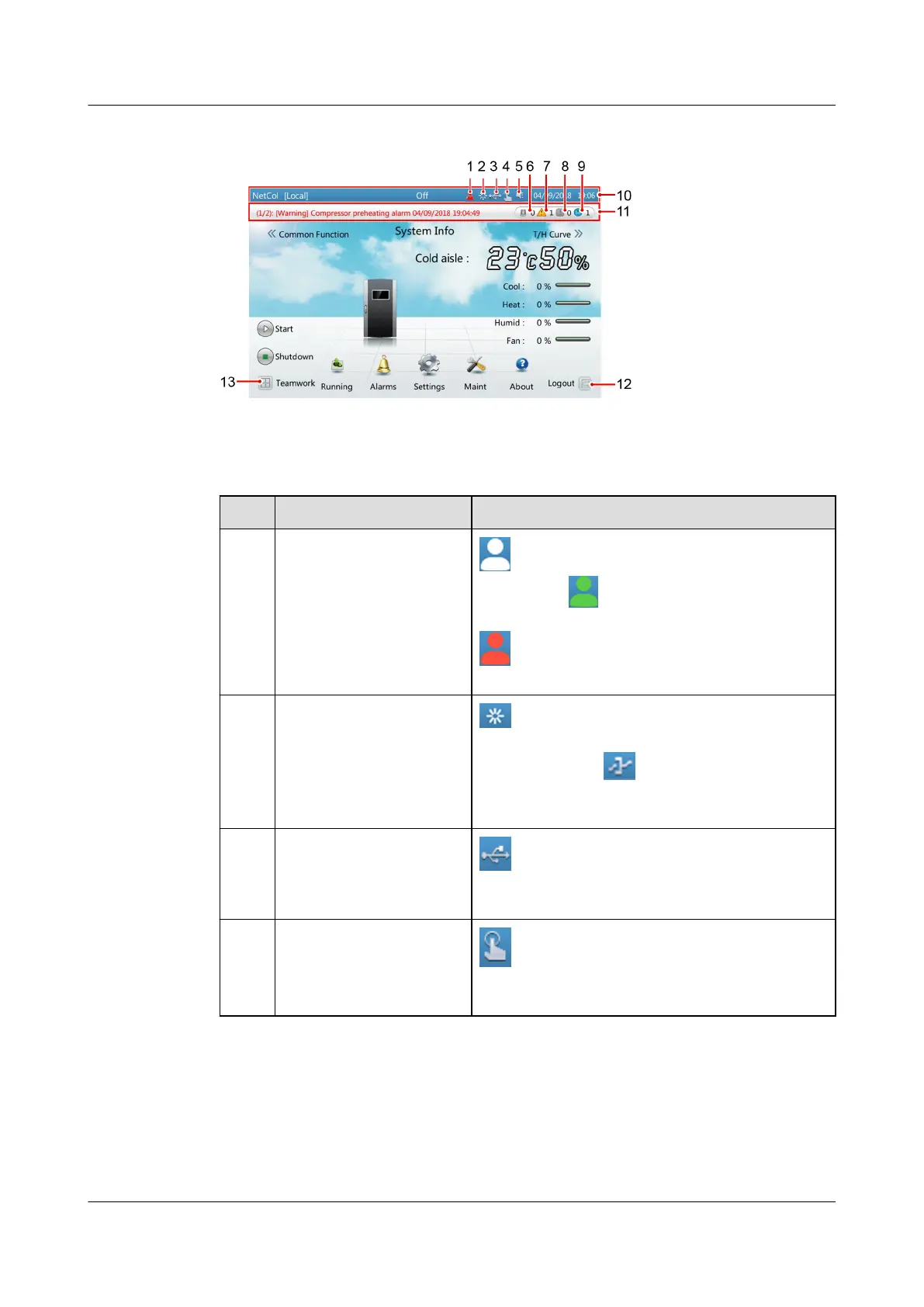

Figure 4-16 Home screen
Table 4-13 Note for the page
No. Items Note
1 Permission status
indicates that you have not logged in to
the system.
indicates that you have
logged in to the system as an operator user.
indicates that you have logged in to the
system as an admin user.
2 Communication status
between the display
panel and the main
control board
in the status bar indicates that the display
panel communicates properly with the main
control board. If
is displayed in this
position in the status bar, the communication
fails.
3 USB status
in the status bar indicates that the USB
ash drive is successfully connected to the
display panel.
4 Diagnostic mode
in the status bar indicates that the smart
cooling product is in diagnostic mode. Tap the
icon to exit from the diagnostic mode.
