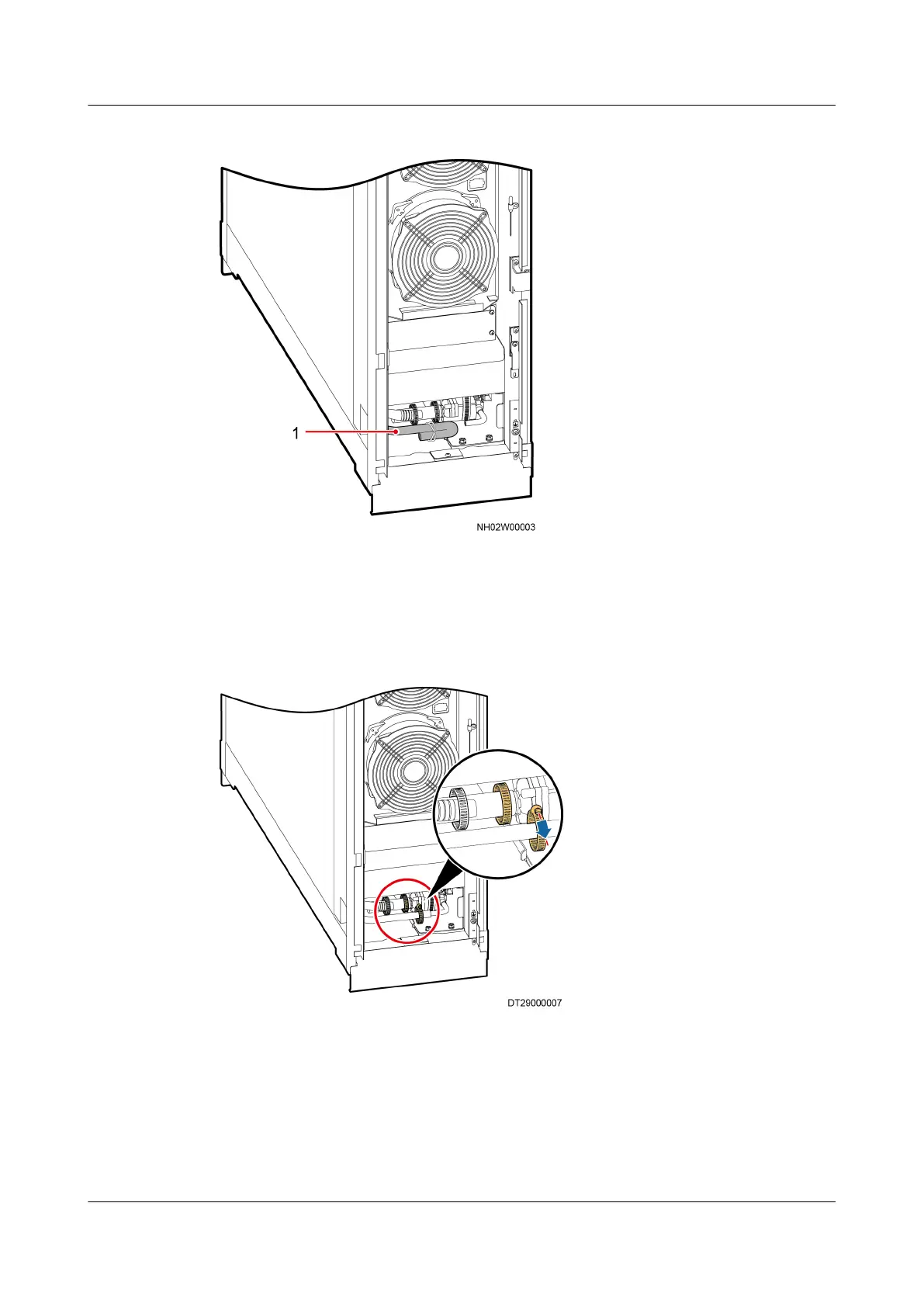

Figure 6-31 Water pump drainpipe
(1) Water pump drainpipe
Step 3 Use a at-head screwdriver to remove the two hose clamps from the pipe, and
remove the hoses at the water inlet and outlet of the condensate pump, as shown
in Figure 6-32.
Figure 6-32 Removing hose clamps from a pipe
Step 4 Use a socket wrench to remove the two M6 screws from the sheet metal fastener
of the water pump, and pull out the water pump assembly, as shown in Figure
6-33.
