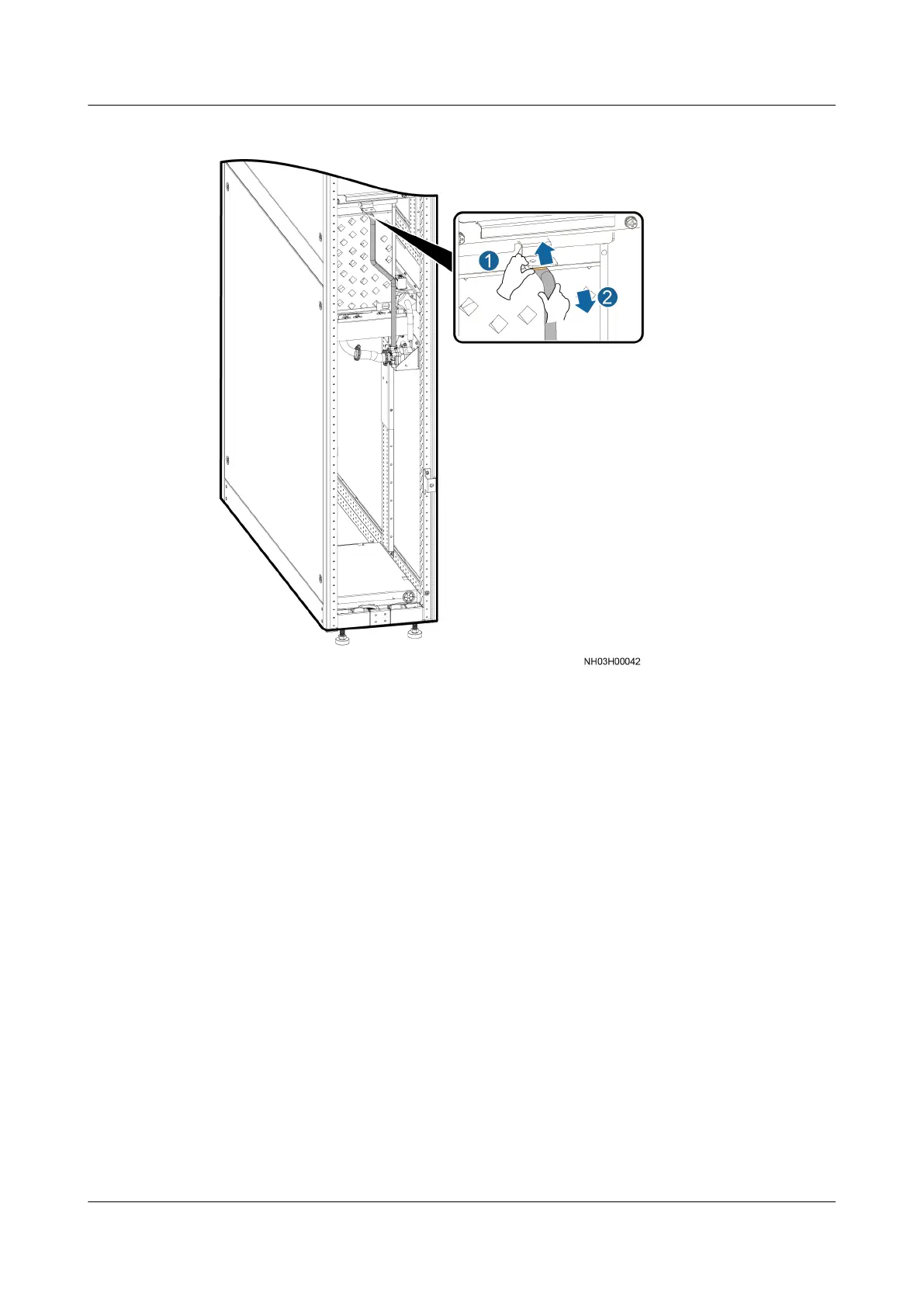

Figure 6-36 Removing the water inlet pipe
Step 5 Promptly place the water inlet pipe in the water bucket to drain water. After water
is drained, use a at-head screwdriver to remove the hose clamps that secure the
water pump, and disconnect the power cable Pump2 of the water pump.
NetCol5000-A025 In-row Air Cooled Smart Cooling
Product
User Manual (300 mm Width) 6 System Operation and Maintenance
Issue 15 (2020-12-10) Copyright © Huawei Technologies Co., Ltd. 263
To Next Page
