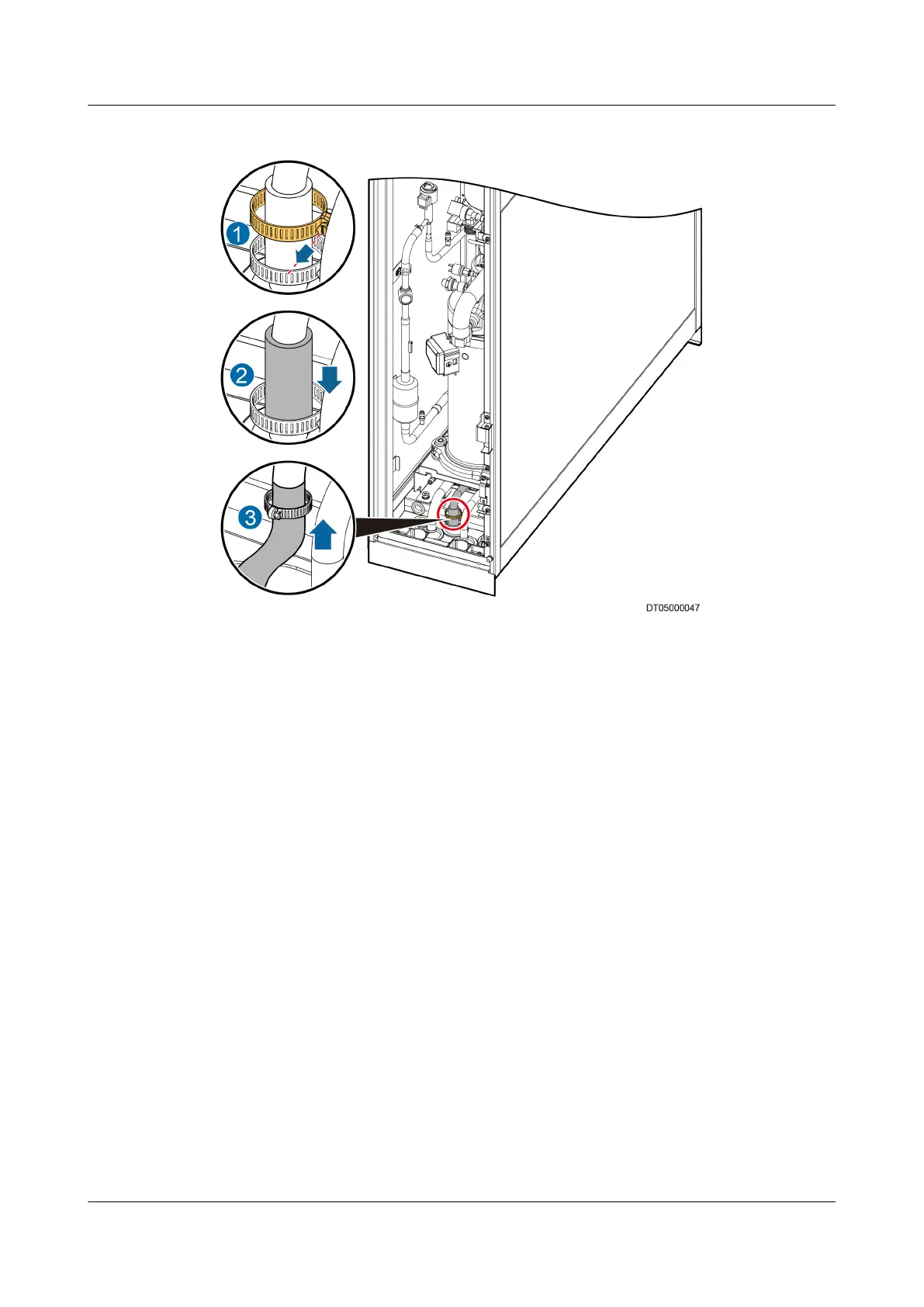

Figure 3-36 Connecting the drainpipe in the scenario of bottom pipe routing
Top Pipe Routing
Use an adjustable wrench to remove the water pipe plug from the top of the
NetCol5000-A, and connect the drainpipe, as shown in Figure 3-37.
NetCol5000-A025 In-row Air Cooled Smart Cooling
Product
User Manual (300 mm Width) 3 Installation Guide
Issue 15 (2020-12-10) Copyright © Huawei Technologies Co., Ltd. 66
