1 Loader motor worm gear 3 Take up reel motor
2 Outer guide rail
WARNING: DO NOT
TOUCH
4 Supply reel motor
2. Begin spooling the tape back into the cartridge by turning the supply reel
motor (4 in Figure 121) clockwise.
3. Continue spooling into the cartridge until the tape is taut and remains within
the flanges of the tape guiding rollers. Ensure that you do not stretch the tape.
Continue spooling until all tape is removed from the take up reel (3 in
Figure 121).
4. Locate the threader intermediate gear (1 in Figure 122 on page 190) near the
rear of the drive. You can use your finger to rotate the threader intermediate
gear and slowly rotate the threader mechanism gear (2 in Figure 122 on
page 190) clockwise. This draws the tape leader block assembly (LBA) into the
cartridge.
3
4
1
2
RLHSV521-0

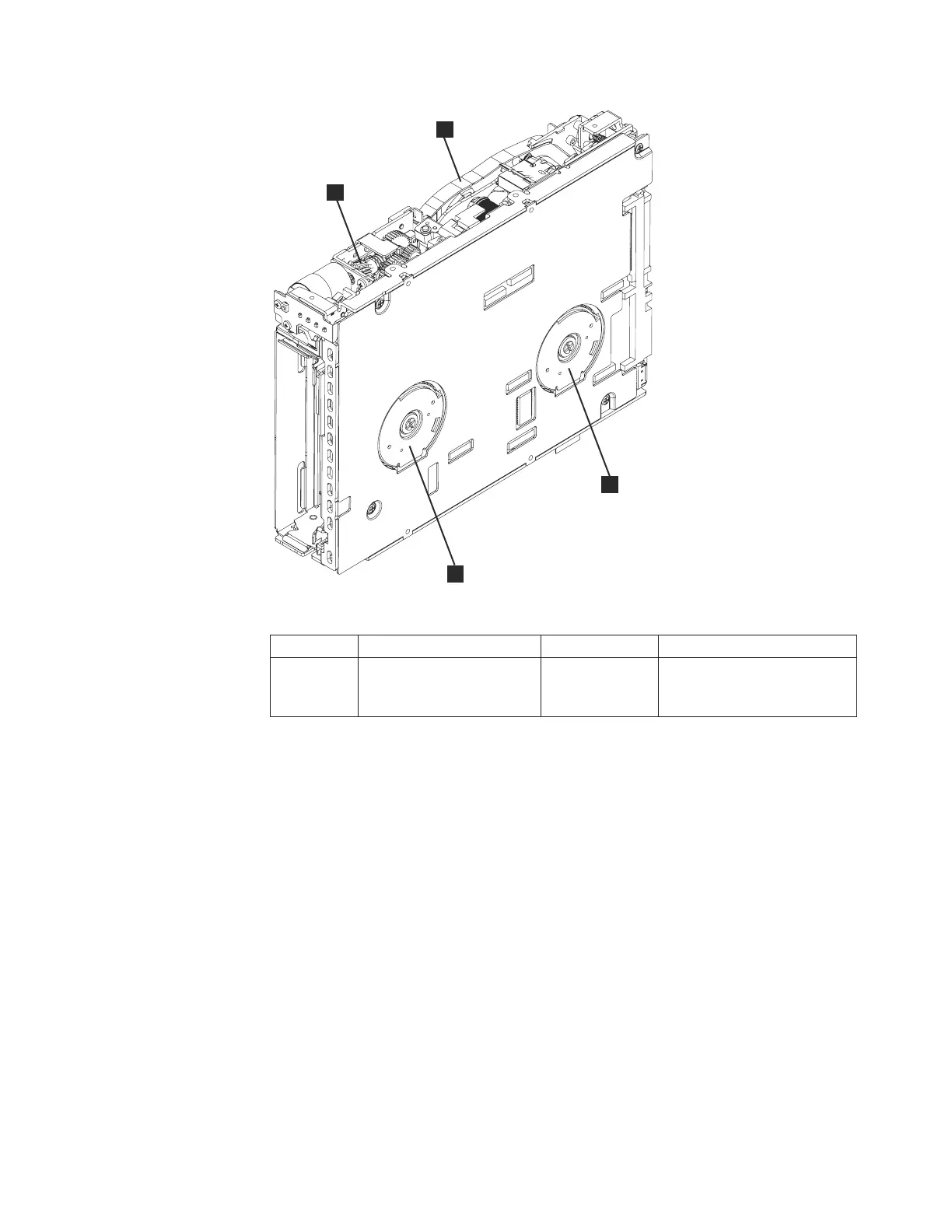

Figure 121. Rewinding the Tape onto the Supply Wheel
Chapter 11. Installation and Removal Procedures 189
