1 Threader intermediate gear 2 Threader mechanism gear
3 Loader motor worm gear
5. As the leader pin is secured in the cartridge, you should hear the leader pin
retention spring clips click into place. If you do not hear the click, continue
rolling until the threader intermediate gear (1 in Figure 122) stops. The LBA
is in the correct position.
Note: Be sure to keep tension on the tape as the LBA is drawn into the
cartridge.
6. Rotate the loader intermediate gear (1 in Figure 123) clockwise as viewed
from the front of the drive until it stops. This releases the LBA leader pin.
7. Rotate the threader motor worm gear (3 in Figure 122) counterclockwise
until the leader block is in front of the Read/Write head. This moves the LBA
out of the cartridge.
1 Loader motor worm gear 2 Leader block assembly (LBA)
3
1
2
RLHSV522-0

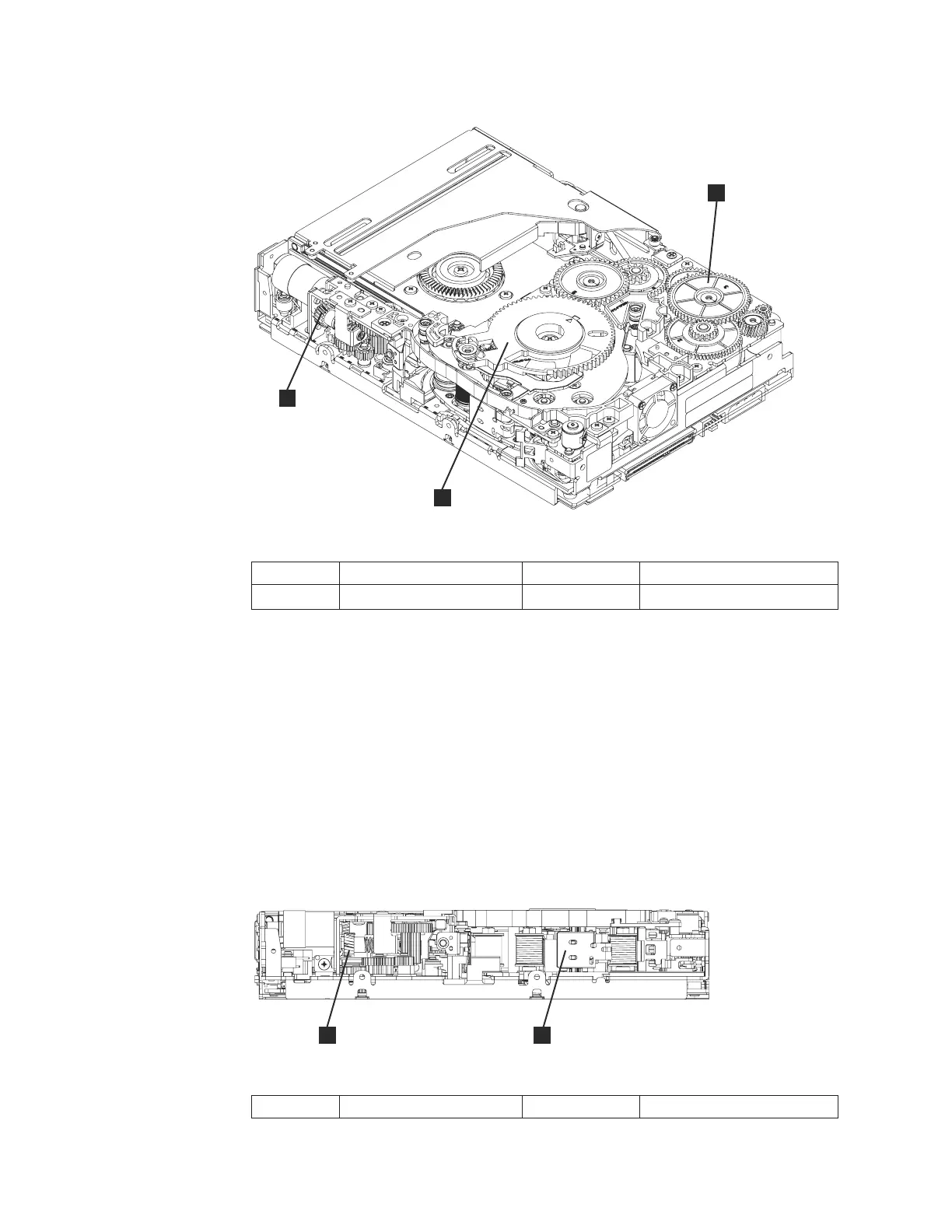

Figure 122. LTO Tape Drive with the Cover Removed
1 2
RLHSV523-0
Figure 123. LTO Tape Drive with the Cover Removed
190 7226 Storage Device Enclosure Setup, Operator and Service Guide
