5. Pull out the mounting bracket pin 1 and slide the mounting bracket 2 into
the slide rail onto which you are installing the cable-management arm. Push
the bracket into the slide rail until the spring-loaded pin snaps into place.
6. Place the cable-management arm on the support arm. Pull out the
cable-management arm pin 1, and then slide the cable-management arm tab
2 into the slot on the inside of the slide rail. Push the tab until it snaps into
place. Pull out the other cable-management arm pin 3, and then slide that
cable management arm tab into the slot 4 on the outside of the slide rail.
Push the tab until it snaps into place.
ROLSOS809-0

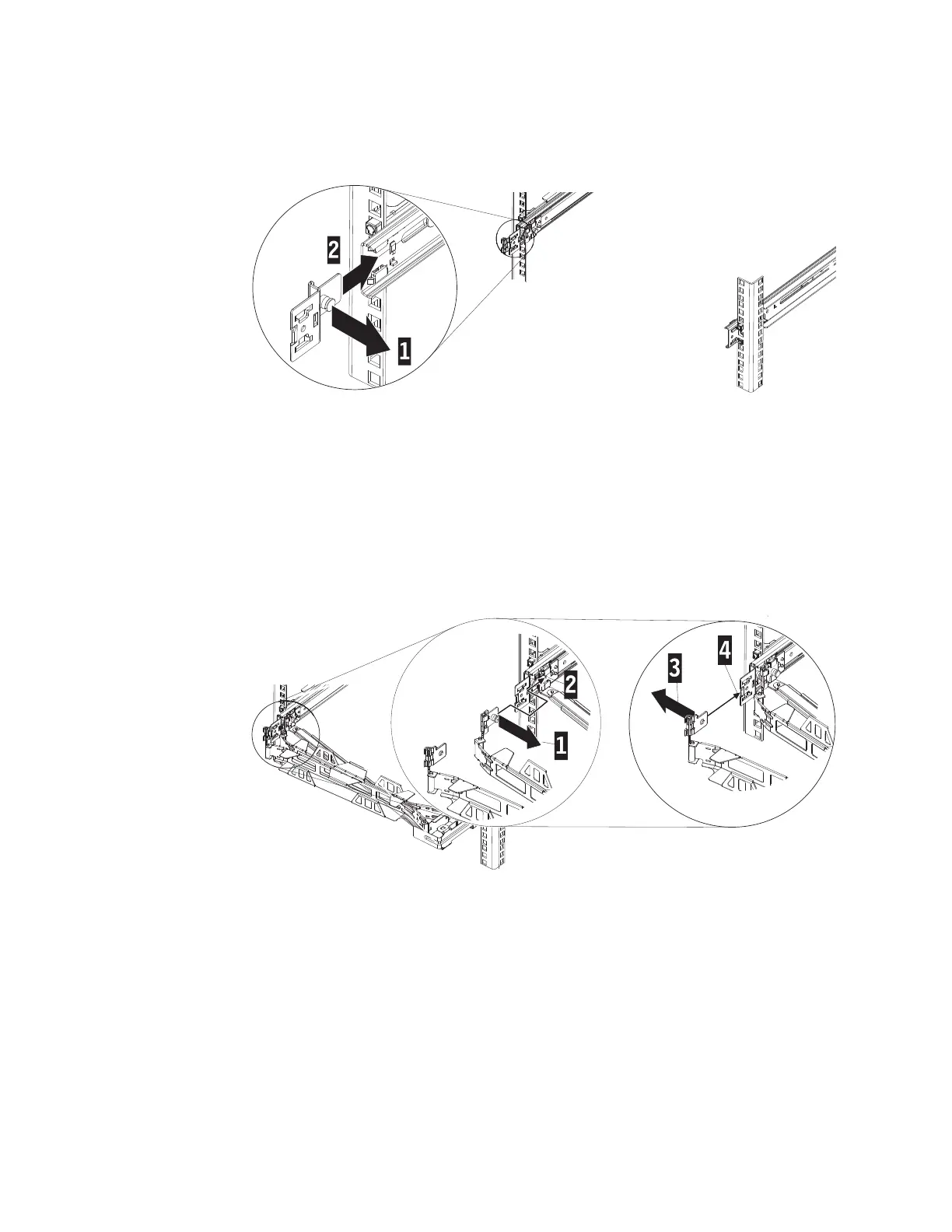

Figure 13. Mounting bracket pin extended and mounting bracket installed into slide rail
ROLSOS810-0
Figure 14. Cable-management arm connection
20 7226 Storage Device Enclosure Setup, Operator and Service Guide
