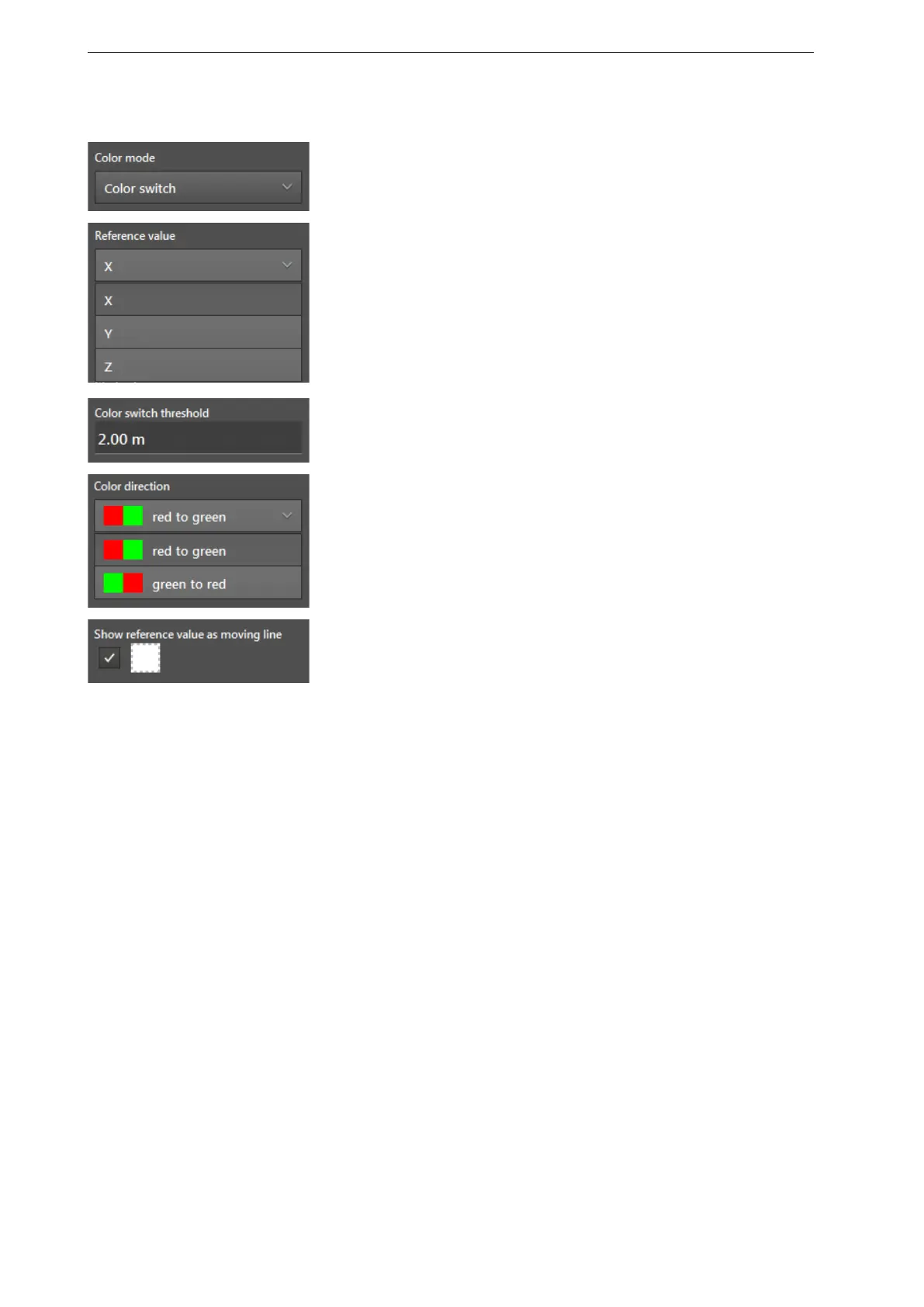

Colour mode [Colour switch]
In the colour mode [Colour switch], there is a change between 2
colours when a threshold is reached.
The "reference value" defines with which ROI group output the "moving
reference line" shifts. The following reference values can be selected:
● [X] - The "moving reference line" is projected in the Y-Z level and
moves with the reference value X.
● [Y] - The projection on the floor is projected in the X-Z level and
moves with the reference value Y.
● [Z] - The projection on the floor is projected in the Y-X level and
moves with the reference value Z.
The "colour switch threshold" defines the threshold for the colour
change. The threshold value is based on the set reference value.
The "colour direction" determines what is to happen when the
threshold is exceeded or not reached. Change from
● [read to green]
● [green to read]
The "moving reference line" shows the output of the ROI groups
graphically as a line in the projection on the floor. The "moving
reference line" can be set:
● By activating the control field, the "moving reference line" is shown.
● By clicking on the colour field, the colour of the "moving reference
line" can be changed.
