Hardware Installations and Upgrades
62 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

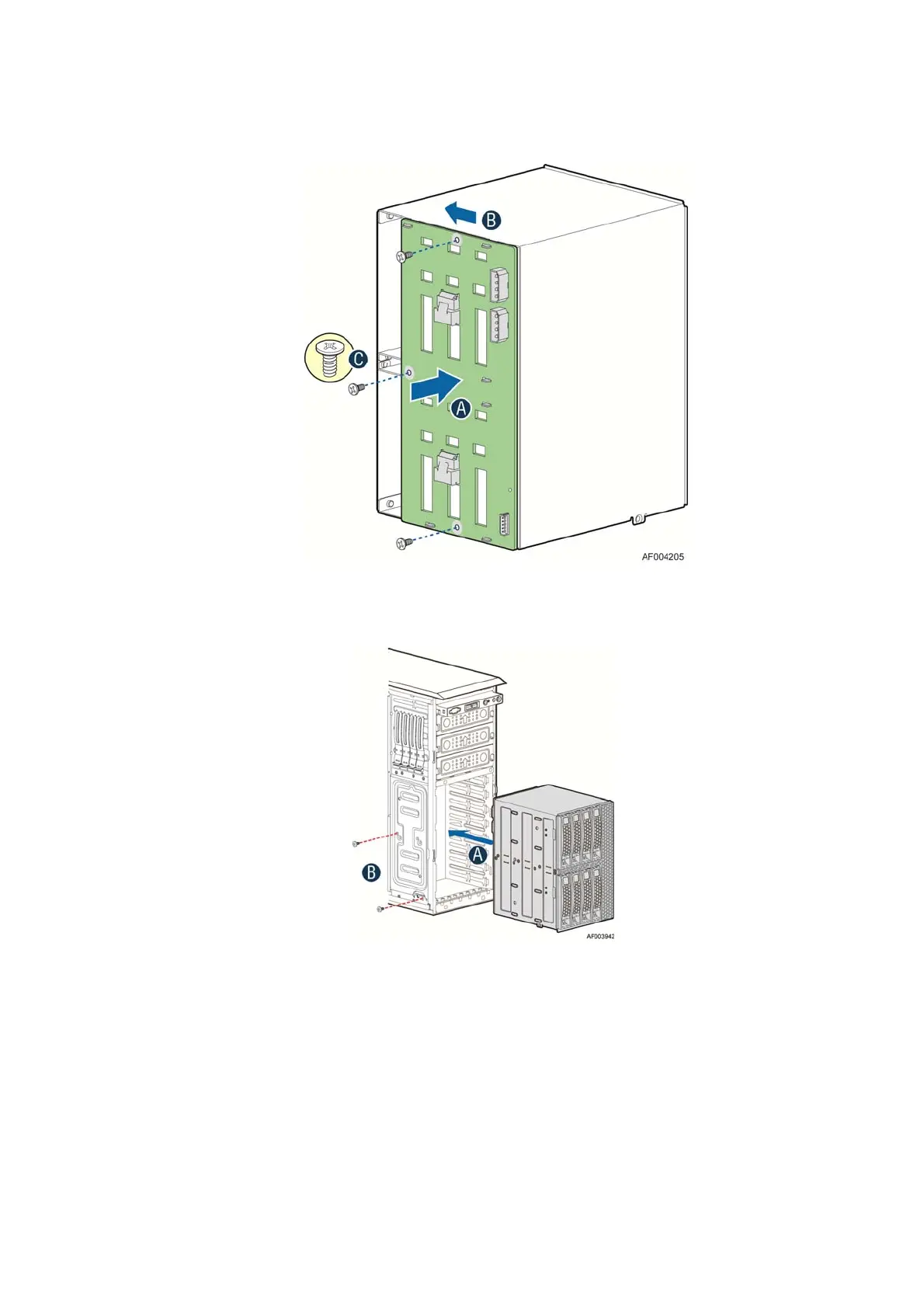

Figure 99. Installing 3.5” hard drive backplane – install the backplane
D. Insert the hard drive cage into server chassis (see letter “A”);
E. Secure the hard drive cage with the screws (see letter “B”);
Figure 100. Installing 3.5” hard drive backplane – install the hard drive cage
3. For server system with 2.5” hard drive bay, do the following:
A. Align the backplane board with the hooks on the hard drive cage (see letter “A”);
B. Slide the backplane board in the direction shown to lock it in place (see letter “B”);
C. Secure the backplane with the screw as shown (see letter “C”);

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
