Hardware Installations and Upgrades
48 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide
14. Insert the power supply(s) into the power supply cage and push all the way until it clicks
into place.

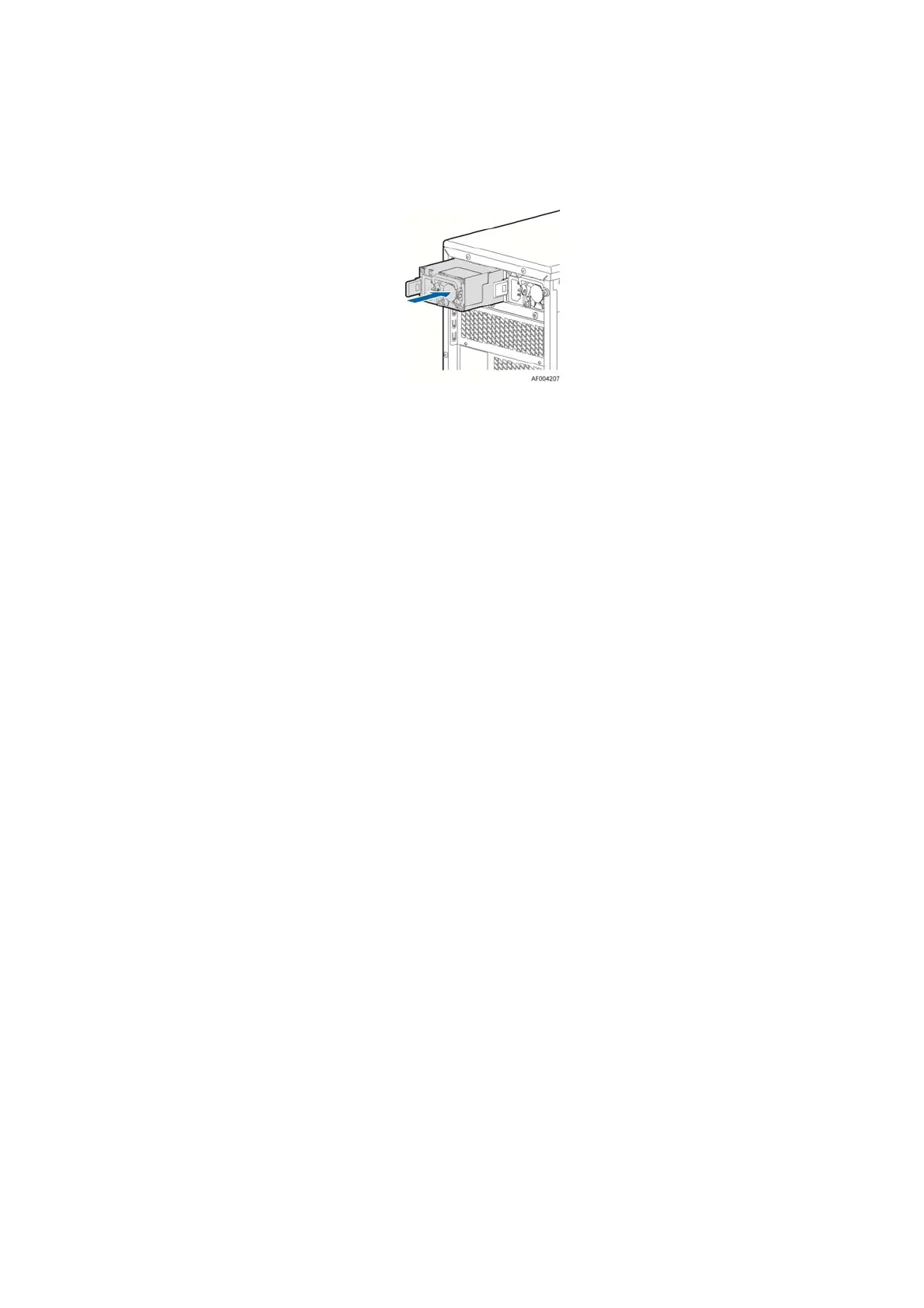

Figure 78. Installing Hot-swap Power Supply Module into Chassis
15. Reinstall the air duct. For instructions, see “Installing the Airduct”.
16. Re-install the chassis cover. For instructions, see “Installing the Chassis Cover”.
17. Plug all peripheral devices and the AC power cable into the server.
18. Power up the server.
Installing and Removing the Server Board
Removing the Server Board
1. Disconnect all cables from the server board.
2. Remove the four screws to release the air duct side wall.
3. Lift the air duct side wall to remove from the server board.
4. Remove the nine screws from the server board (see letter “A”).
5. Lift the server board from the server system (see letter “B”).

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
