Server System Features
8 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

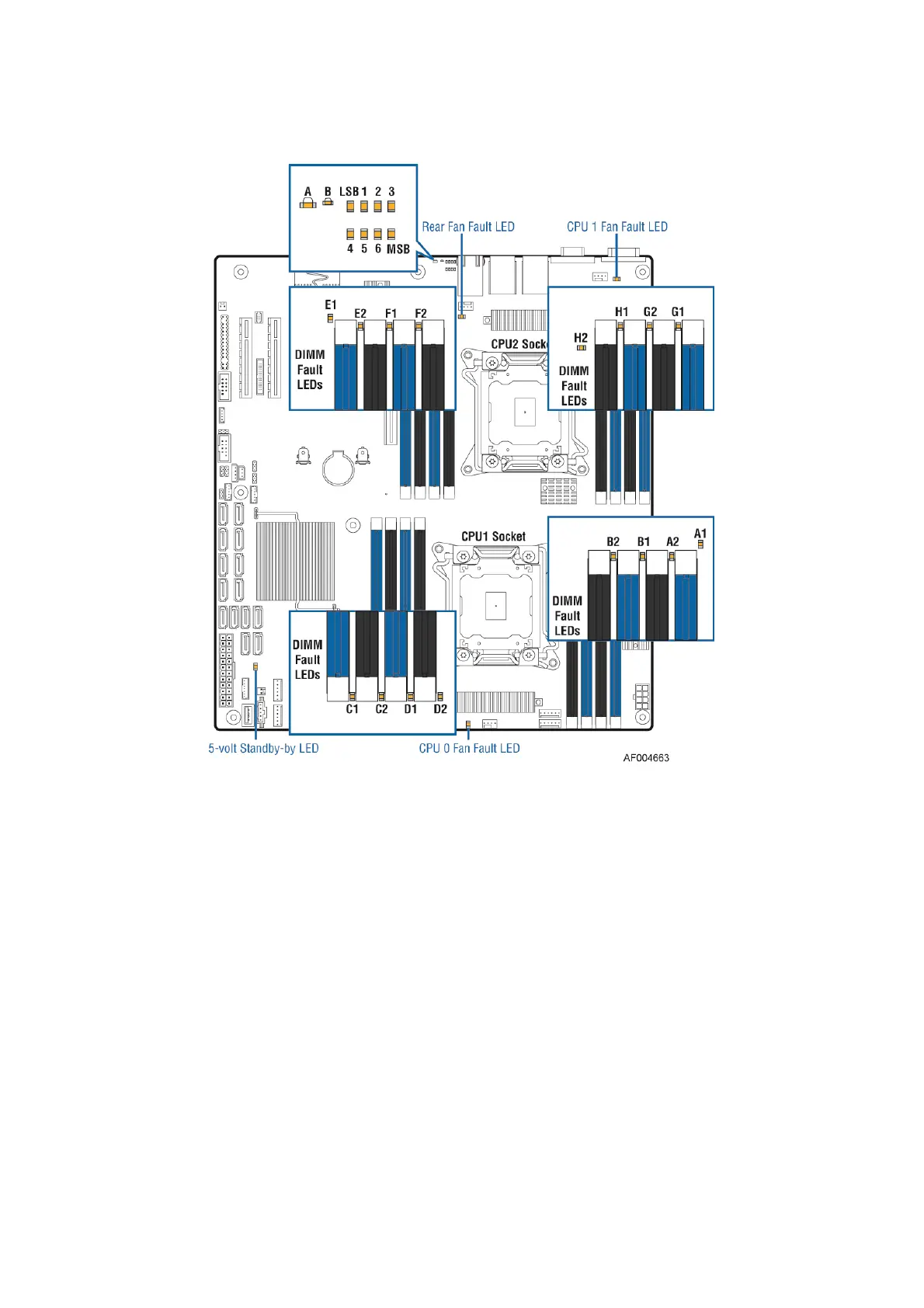

Figure 9. Intel
®
Light-Guided Diagnostic LEDs - Server Board
The server system contains the following diagnostic LEDs, each providing the following functions:
A - The System Status LED on the front and back panels shows the overall health of the system (green,
blinking green, blinking amber, amber, off).
B - The System Identification LED on the front and back panel helps identify the server from among
several servers. The ID LED is off by default, and blue when activated by button or software.
POST Code Diagnostic LEDs on the server board change color or state (off, green, red, amber) according
to the POST sequence.
The 5V-STBY LED on the server board is illuminated (green) when power is applied.
CPU fault LEDs help identify the failure of CPU. The CPU fault LEDs turn on (amber) if there is a CPU
fault.
DIMM Fault LEDs on the server board help identify failed and failing DIMM slots. The DIMM fault
LEDs turn on (amber) if there is a DIMM fault.

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
