Intel S2600CP - Core Component Installation

Server System Features
4 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

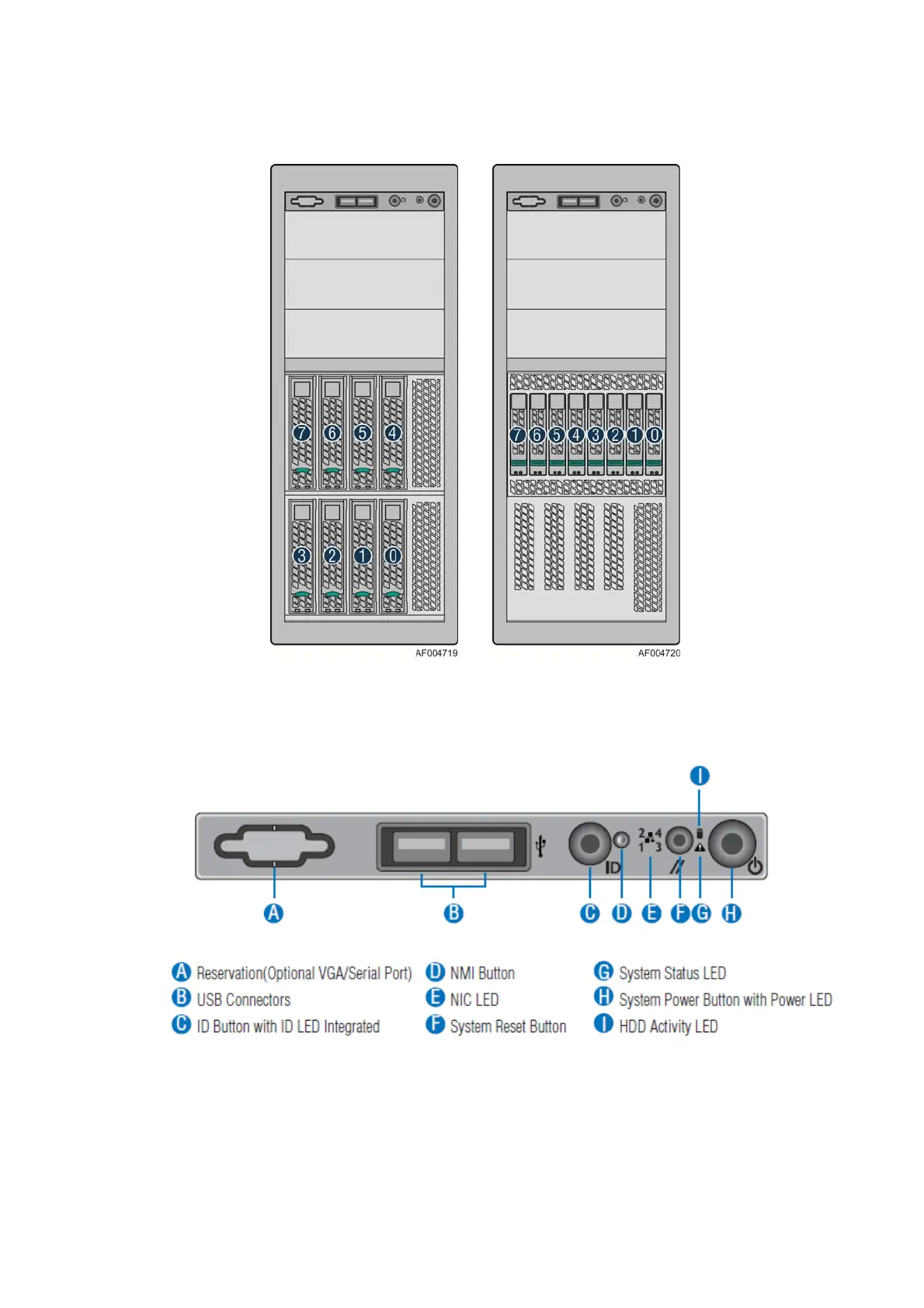

Figure 4. Hot Swap Hard Drive Bay and Front Panel Options
Front Control Panel
Below figure show the layout of components on Front Control Panel.
Figure 5. Front Control Panel
