Intel S2600CP - Figure 45. Open PCI Card Retainer; Figure 46. Open PCI Card Retention Device; Figure 47. Install PCI Card

Hardware Installations and Upgrades
32 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

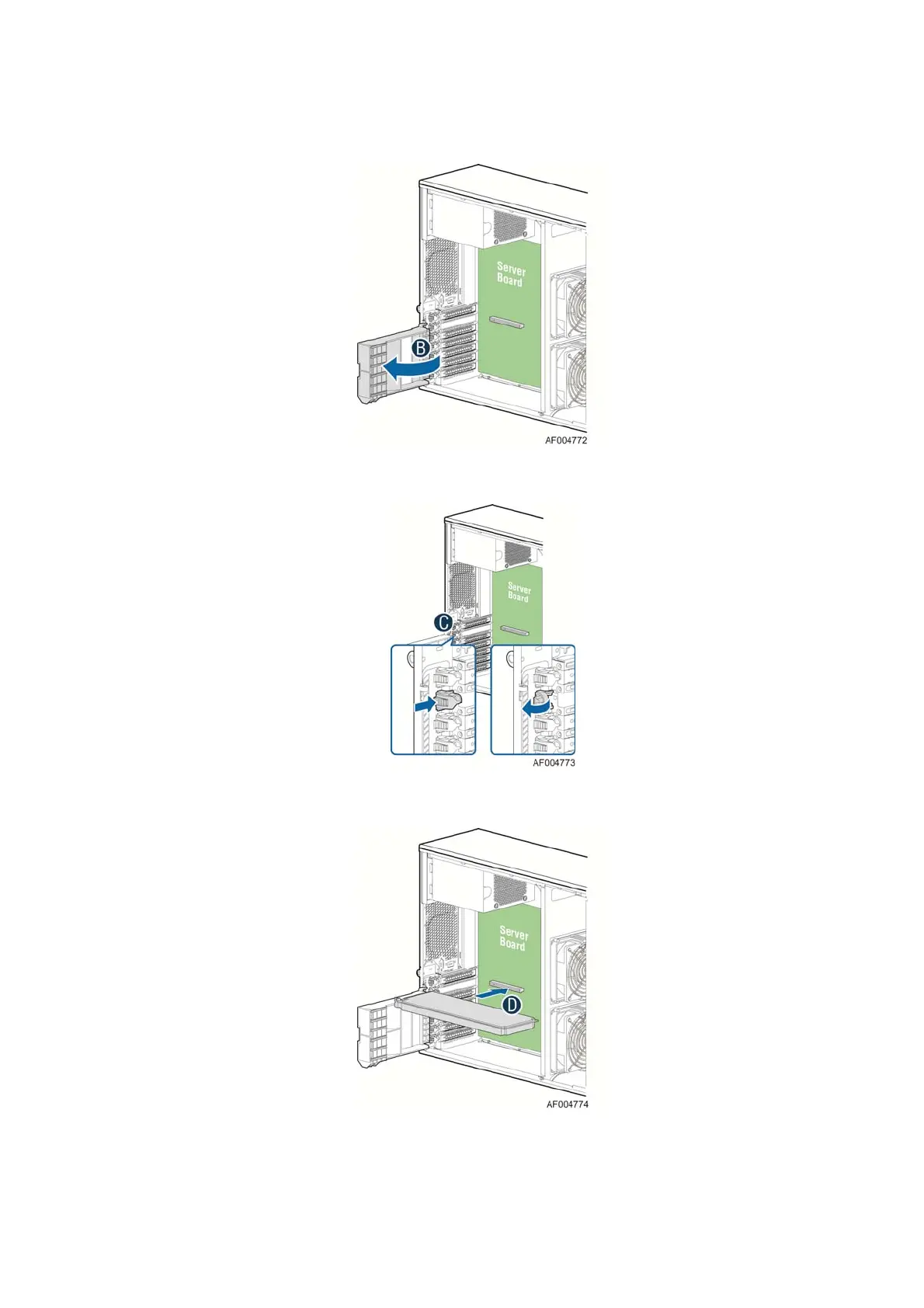

Figure 45. Open PCI card retainer
7. Open the PCI card retention device. See letter C.
Figure 46. Open PCI card retention device
8. Align the PCI card and insert into place. See letter D.
Figure 47. Install PCI card
