Intel S2600CP User Manual

Hardware Installations and Upgrades
18 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

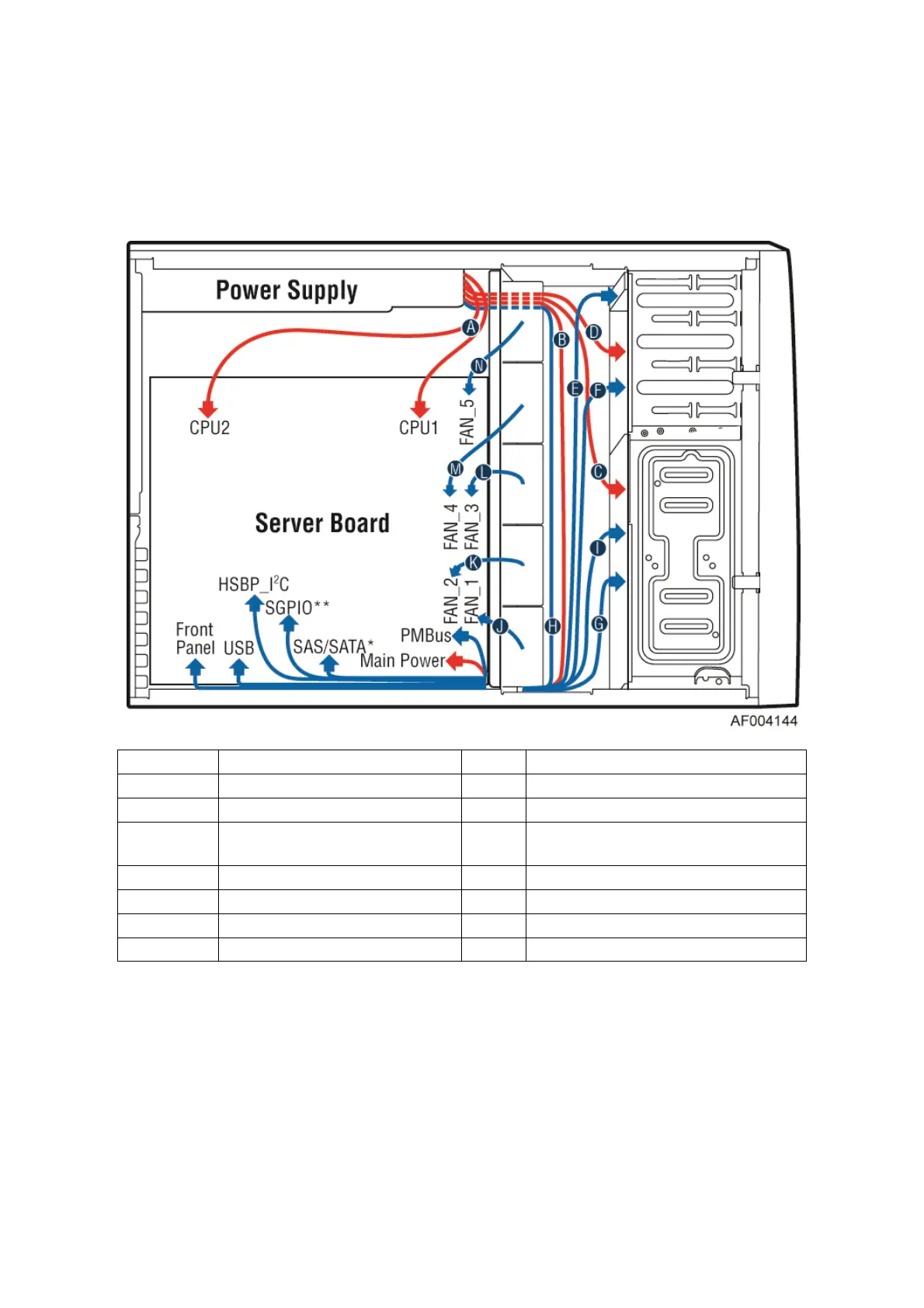

Cable routing for Intel
®
Server System P4308CP4MHGC and P4208CP4MHGC:
Callout
Description Callout Description
A CPU1/CPU2 Power Cable B Server Board Main Power Cable
C Hot-swap Backplane Power Cable D ODD Power Cable
E Front Panel Cable, USB Cable F
ODD Data Cable (Connect To White SATA 6G
Connectors on Server Board)
G MiniSAS and SGPIO H PMBus Cable
I Hot-swap Backplane I2C Cable J System FAN 1
K System FAN 2 L System FAN 3
M System FAN 4 N System FAN5
Figure 19. Cable routing for Intel
®
Server System P4308CP4MHGC and P4208CP4MHGC
