Hardware Installations and Upgrades
68 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

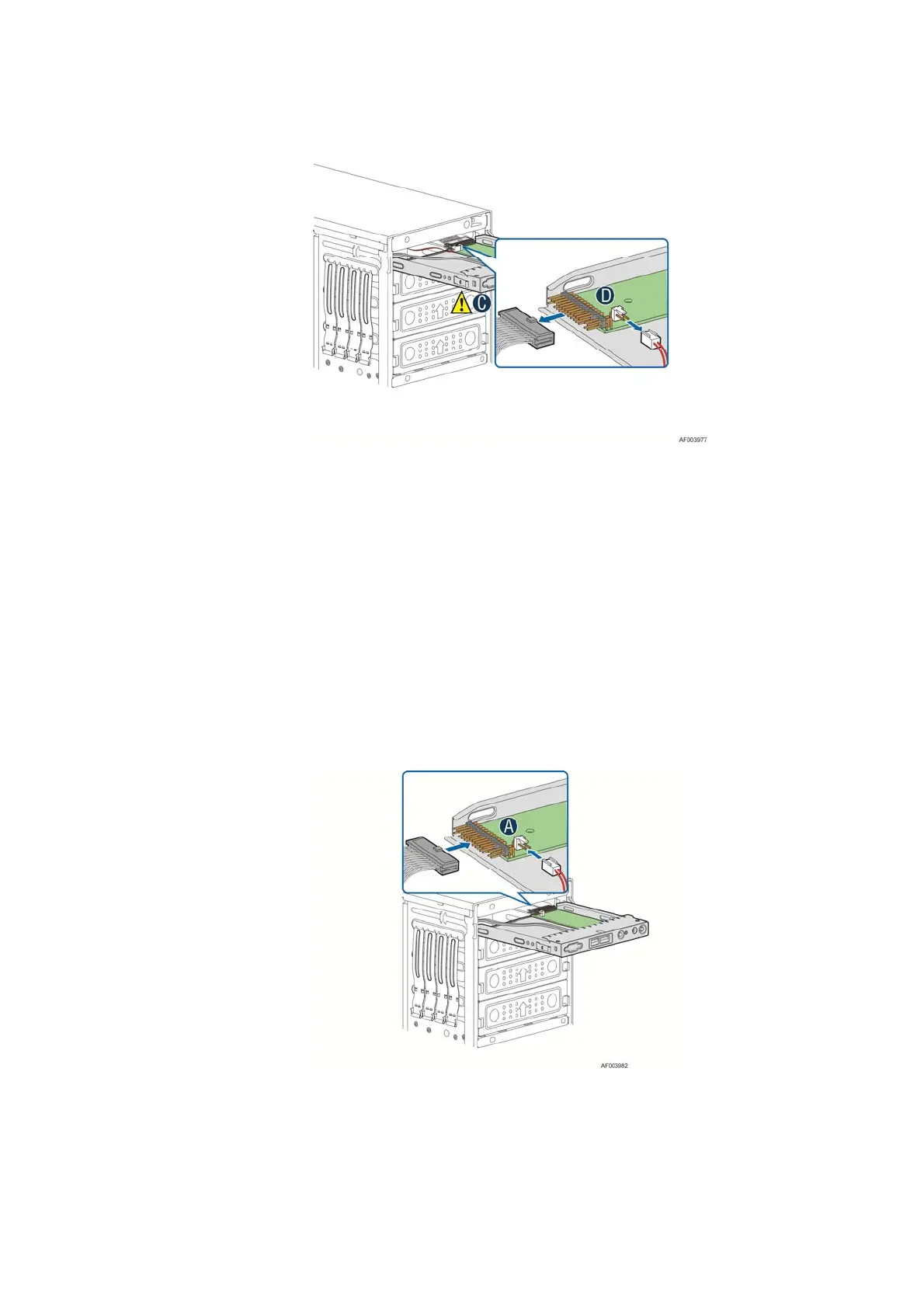

Figure 109. Disconnecting the Cables from Front Panel Board
10. Slide the front panel tray out.
Installing the Fron Panel Tray
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”.
4. Remove the front bezel if it is installed. For instructions, see “Removing the Front Bezel”.
5. Remove the air duct if it is installed.
6. Attach the front panel cable and the chassis intrusion cable (see Letter “A”) to the front panel
board.
Figure 110. Connecting the Cables to the Front Panel Board

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
