4.
Press the latches under the top cosmetic cover to release the cosmetic cover (see letter “A”)
and remove the top cosmetic cover (see letter “B”).

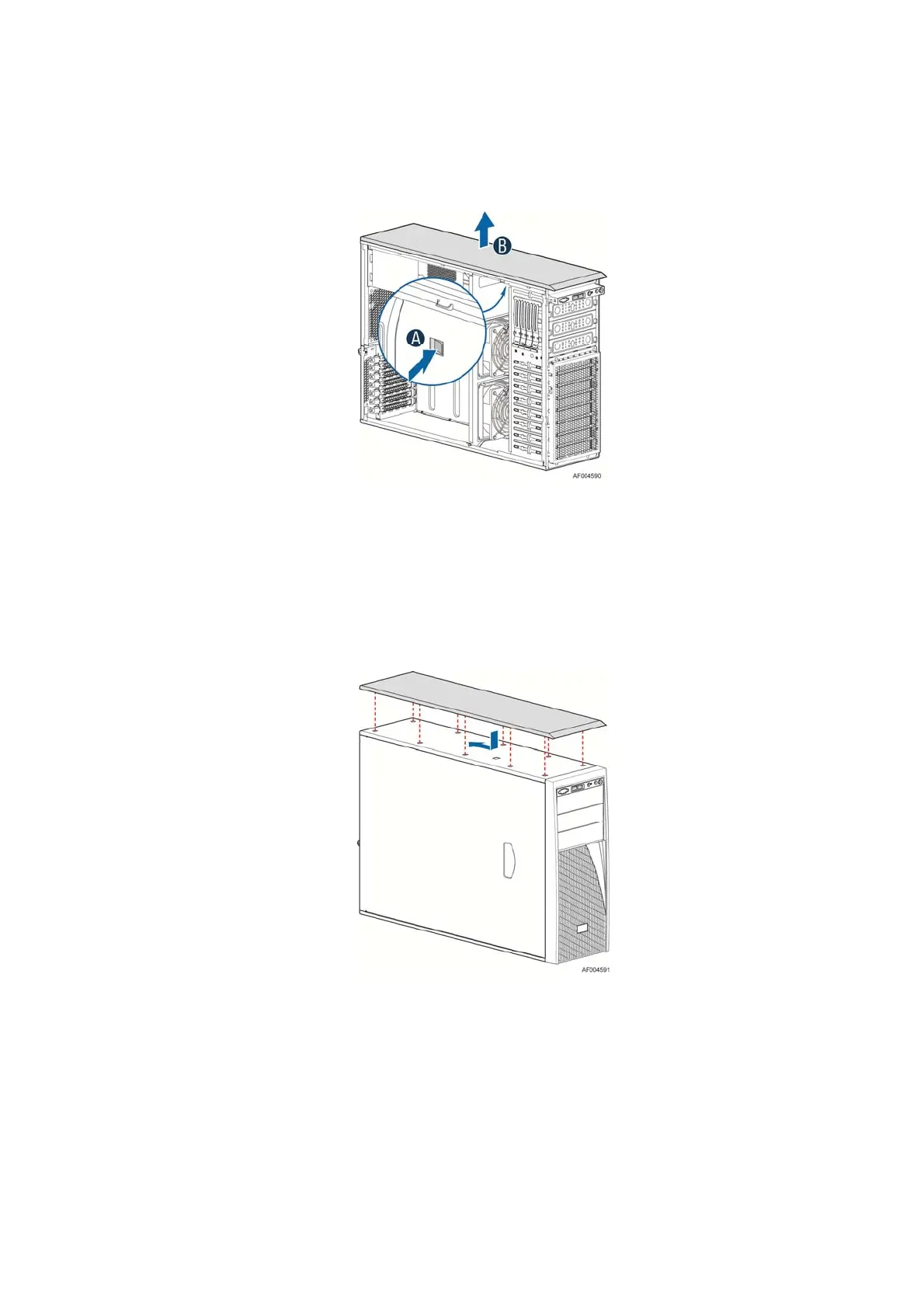

Figure 103. Removing the Top Cosmetci Cover
Installing the Top Cosmetic Cover
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Attach the top cosmetic cover to the chassis and make sure the edges of the top cosmetic
cover fit the sides of the chassis top. Then slide the top cosmetic cover forward until the
latches on the top cosmetic cover are engaged with the chassis.
Figure 104. Installing the Top Cosmetci Cover
Removing and Installing the Chassis Feet
Removing the Chassis Feet
1. Observe the safety and ESD precautions at the beginning of this book.

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
