Intel S2600CP User Manual

Hardware Installations and Upgrades
Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide (Preliminary) 59

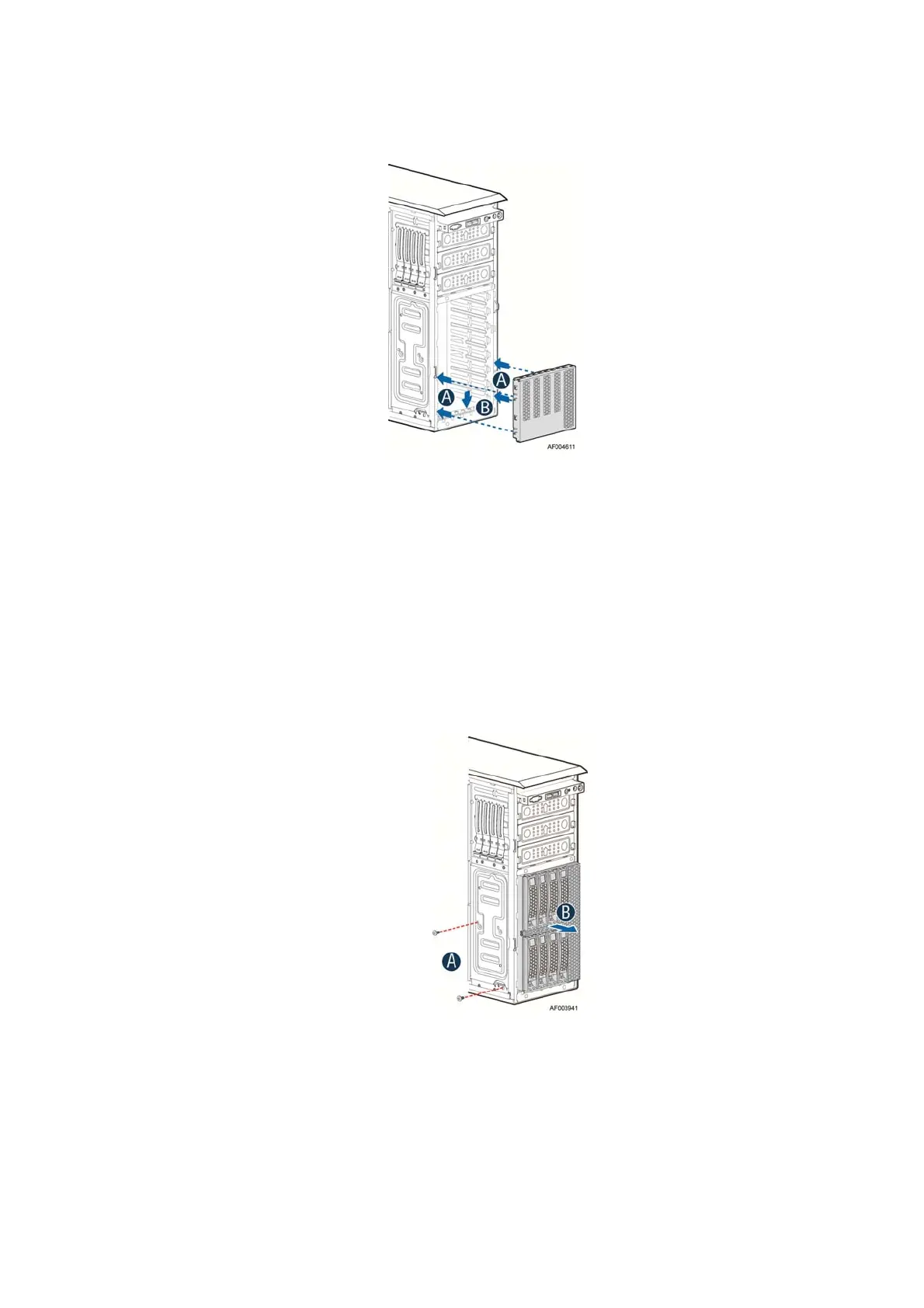

Figure 94. Installing the Hot-swap HDD EMI Shield
Replacing the Backplane
Removing the Backplane
1. Remove all hot-swap drive carriers, regardless of whether or not a drive is installed in the
carrier.
2. Disconnect all cables from the backplane.
3. For server system with 3.5” hard drive bay, do the following:
A. Remove the screw to release the hard drive cage (see letter “A”);
B. Slide the hard drive cage out of the server chass (see letter “B”);
Figure 95. Removing 3.5” hard drive backplane – remove the hard drive cage
C. Remove the screw as shown (see letter “A”);
D. Slide the backplane (see letter “B”);
E. Remove the backplane from the server chassis (see letter “C”).

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
