Hardware Installations and Upgrades
58 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide
Removing and Installing the Hot-swap HDD EMI Shiled
/
NOTE
This procedure applies only to the Intel
®
Server Chassis P4000M family with 8x2.5” hot-swap
hard disk drive cage configuration.
Removing the Hot-swap HDD EMI Shiled
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”.
4. Remove the front bezel. For instructions, see “Removing the front bezel (Pedestal Only)”.
5. Remove the 8x2.5” Hot-swap HDD cage. For instructions, see “Removing 8x2.5” Hot-
swap Hard Disk Drive Cage with Backplane”

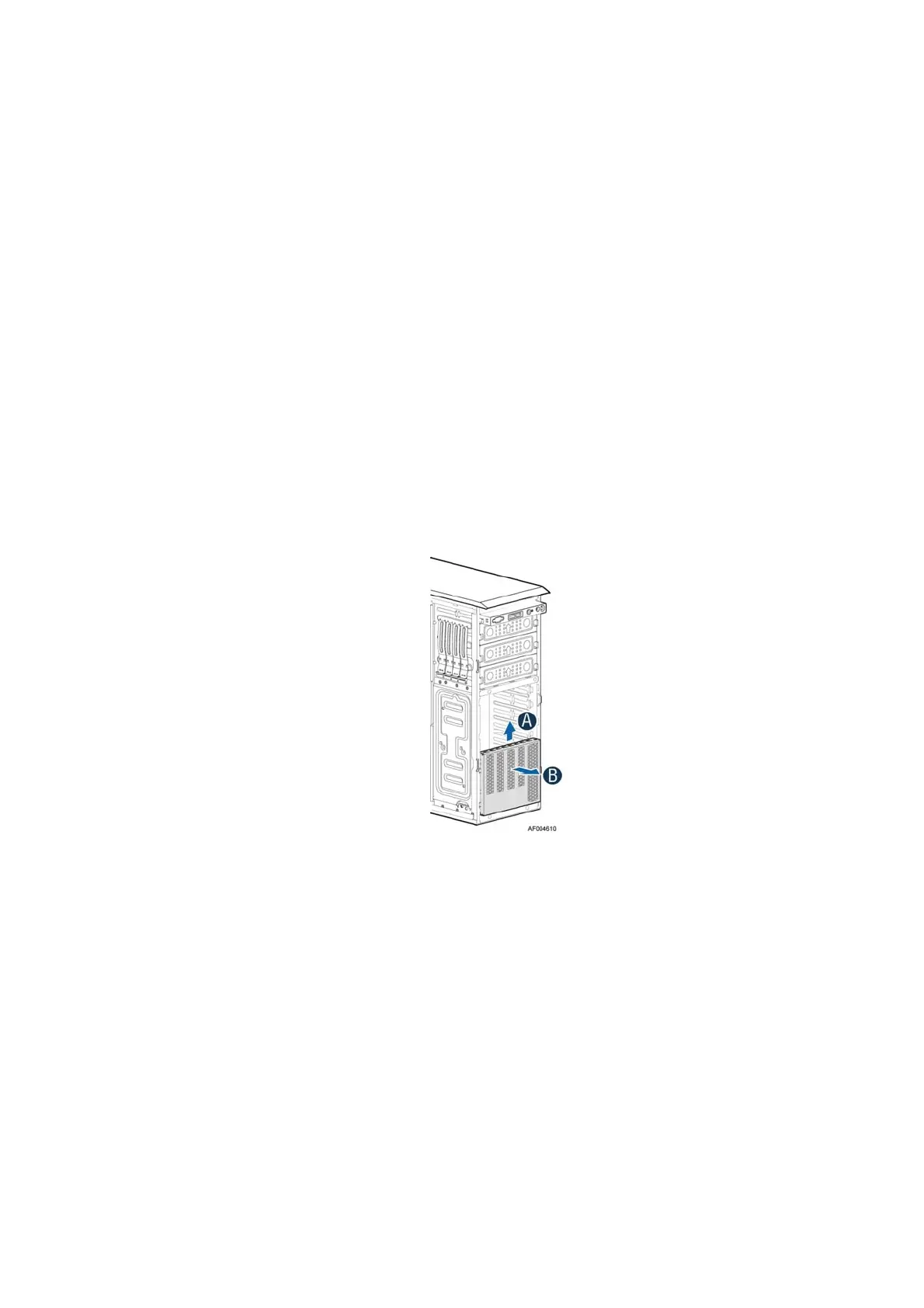

6. Lift the EMI shield (see letter “A”) and move EMI shield outward from the chassis (see
letter “B”).
Figure 93. Removing the Hot-swap HDD EMI Shield
Installing the Hot-swap HDD EMI Shiled
1. Fit the edges of the EMI Shield against the sides of the chassis (see letter “A”).
2. While pressing the EMI Shield, slide the EMI Shield downwards until the latches on the
EMI Shield are engaged with the chassis (see letter “B”).
