Intel S2600CP - System Jumpers; Figure 10. Configuration Jumpers

Server System Features
Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide 9
System Jumpers

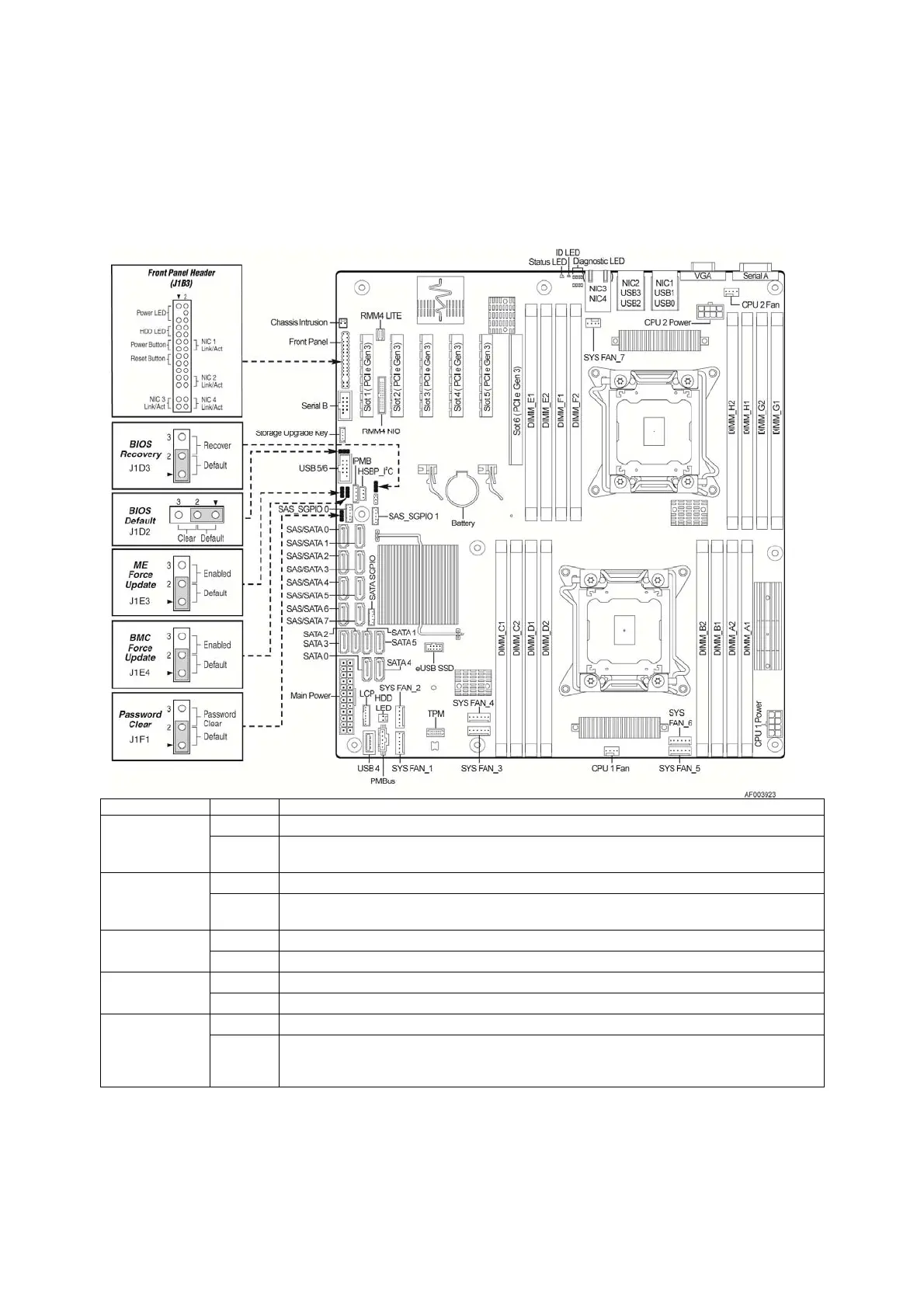

The figure below shows the locations of System Jumpers on Intel
®
Server Board S2600CP.
Jumper Name Pins System Results
BIOS Recovery
1-2 Pins 1-2 should be connected for normal system operation. (Default)
2-3
The main system BIOS does not boot with pins 2-3 connected. The system only boots from EFI-
bootable recovery media with a recovery BIOS image present.
BIOS Default
(a.k.a CMOS
Clear)
1-2 These pins should have a jumper in place for normal system operation. (Default)
2-3
If pins 2-3 are connected when AC power unplugged, the CMOS settings clear in 5 seconds.
Pins 2-3 should not be connected for normal system operation.
ME Force
Update
1-2 ME Firmware Force Update Mode – Disabled (Default)
2-3 ME Firmware Force Update Mode – Enabled
BMC Force
Update
1-2 BMC Firmware Force Update Mode – Disabled (Default)
2-3 BMC Firmware Force Update Mode – Enabled
Password Clear
1-2 These pins should have a jumper in place for normal system operation. (Default)
2-3
To clear administrator and user passwords, power on the system with pins 2-3 connected. The
administrator and user passwords clear in 5-10 seconds after power on. Pins 2-3 should not be
connected for normal system operation.
Figure 10. Configuration Jumpers
