Server System P4000CP Family Service Guide (Preliminary) 21
6. If the bezel assembly does not immediately disconnect from the chassis, tap the left-hand
side of the bezel assembly to disengage the bezel hooks on the right-hand side of the
chassis.

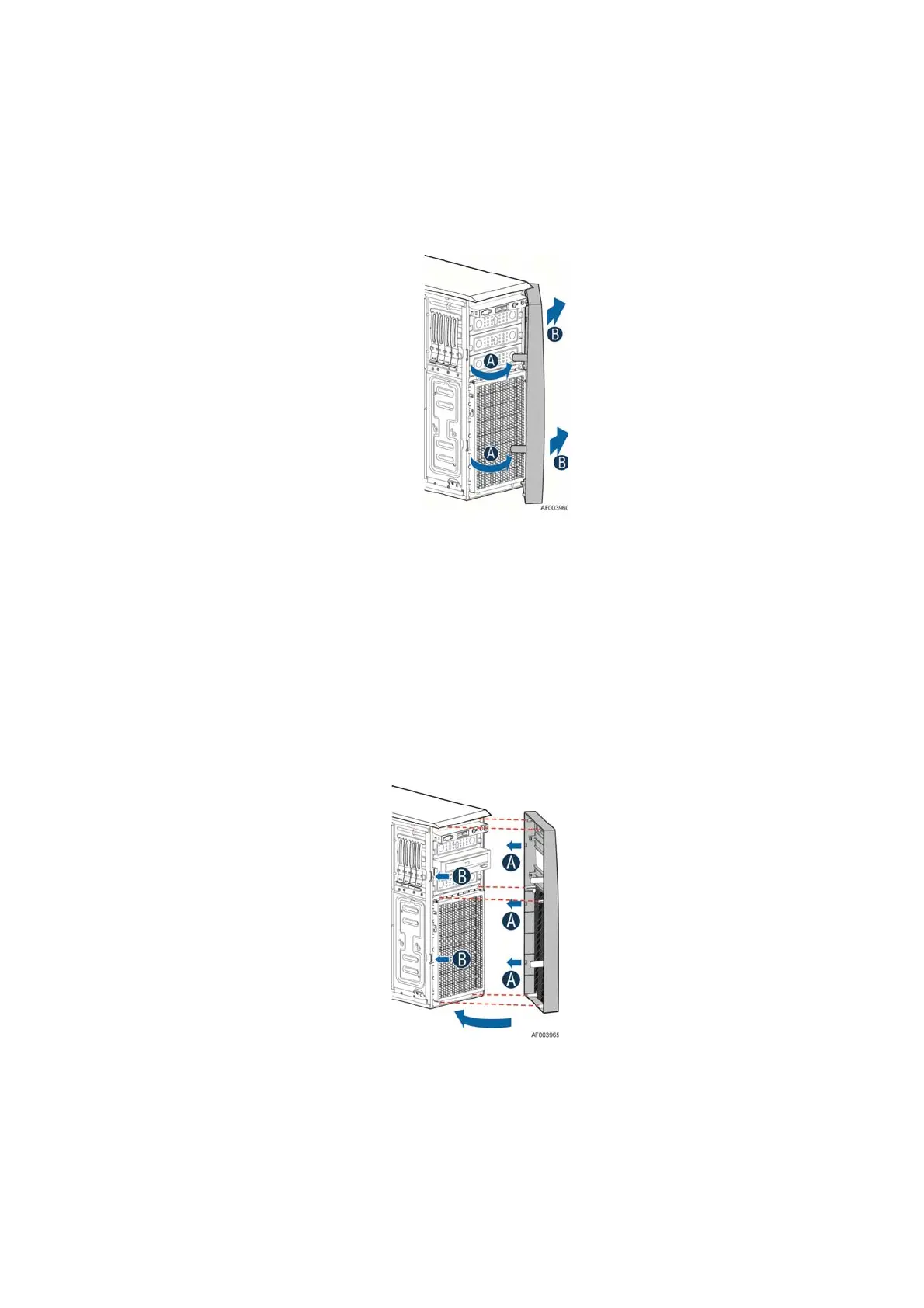

Figure 22. Removing the Front Bezel
Installing the Front Bezel
1. Fit the right edge of the bezel assembly against the right side of the chassis.
2. Engage the plastic bezel hooks (see letter “A”) into the raised metal slots at the chassis
edge.
3. Rotate the bezel assembly toward the chassis.
4. Latch the two plastic tabs (see letter “B”) on the left side of the bezel assembly to the
chassis.
Figure 23. Installing the Front Bezel

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
