Intel S2600CP - Figure 76. Sliding the Bracket into Power Supply Cage; Figure 77. Secruing the Bracket into Power Supply Cage

Hardware Installations and Upgrades
Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide (Preliminary) 47

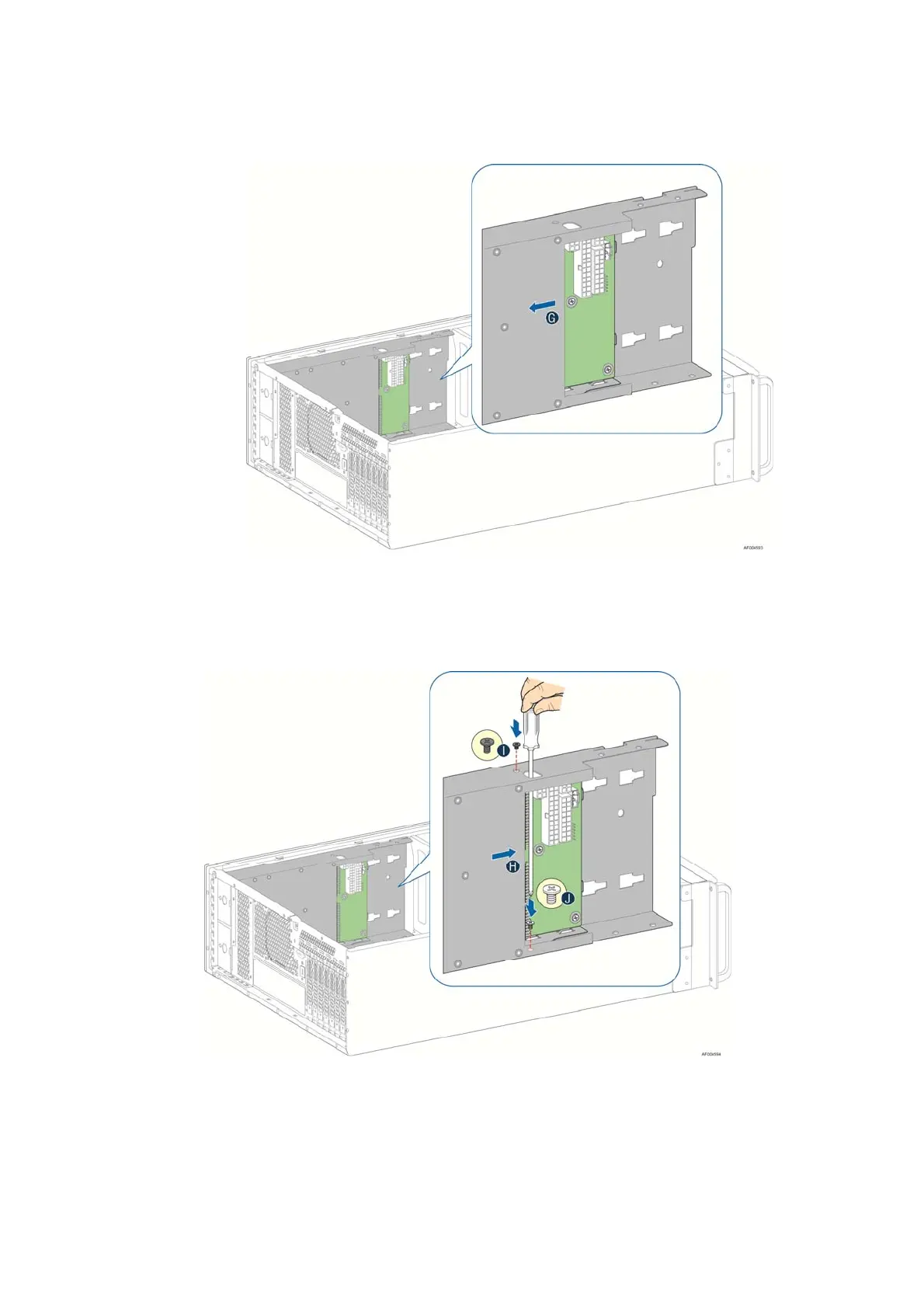

Figure 76. Sliding the Bracket into Power Supply Cage
12. Then pull back until the latch on the bracket is engaged with the power supply cage and
make sure the screw holes on the bracket is aligned with the screw holes on power supply
cage (see letter “H”). And then secure the bracket with the screws (see letter “I” and
“J”).
Figure 77. Secruing the Bracket into Power Supply Cage
13. Reconnect the power cables as appropriate.
