Server System P4000CP Family Service Guide (Preliminary) 67

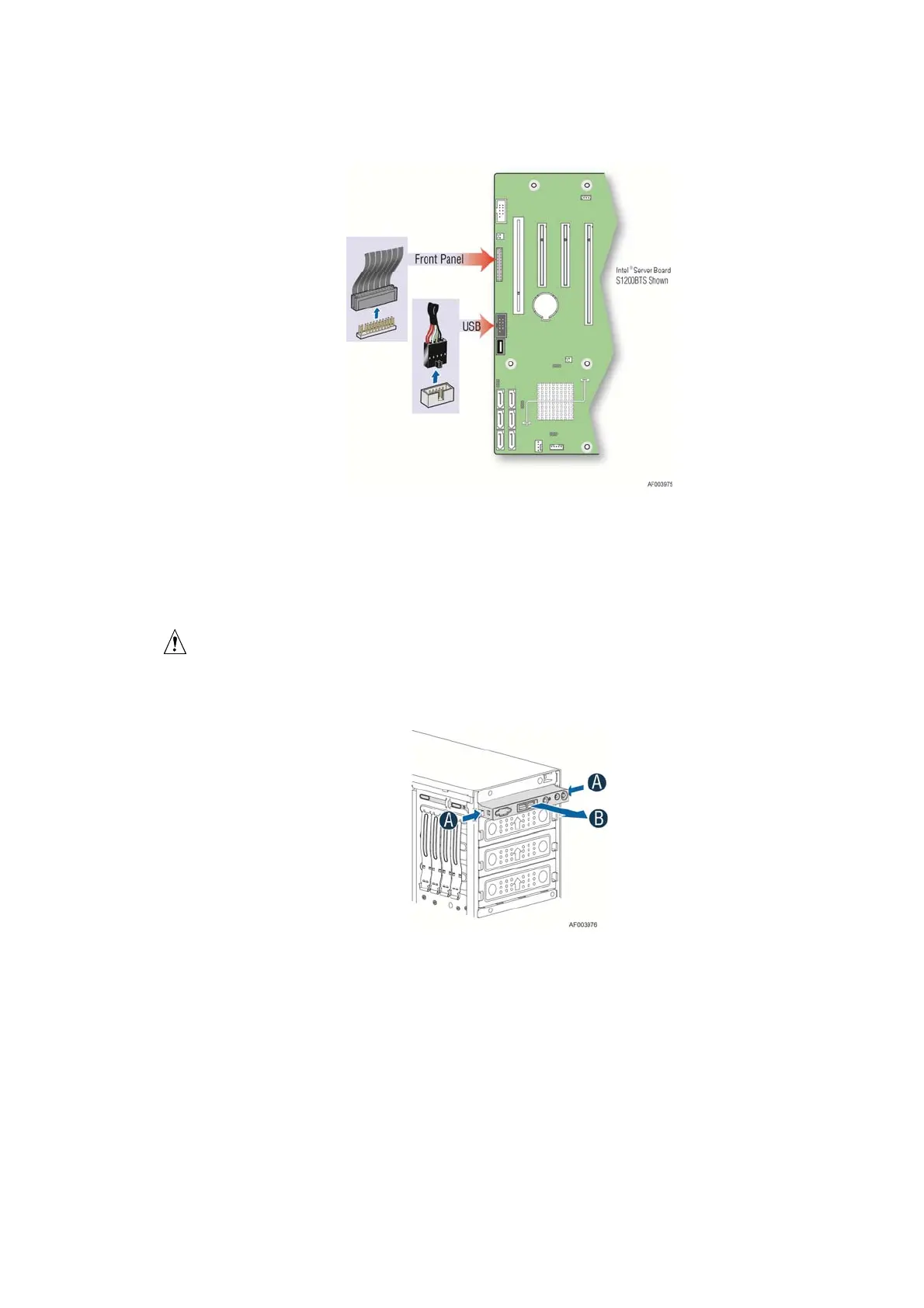

Figure 107. Disconnecting the Cables from the Server Board
7. Loose the front panel cable and USB cable from the wire clip on chassis
8. Press the latch at the sides of the front panel (see Letter “A”) and carefully slide the front
panel out (see Letter “B”).
CAUTION
Do not slide the front panel out far from the front of the chassis before you
disconnect the instruction cable from the front panel board.
Figure 108. Sliding the Front Panel Tray out from the Chassis
9. Slide the front panel out from the front of the chassis to the place (see Letter “C”) so that
you can reach the front panel cable and instrustion cable connectors at the rear of the front
panel. Then disconnect the front panel cable and intrusion switch cable from the front panel
board (see Letter “D”).

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
