Server System Features
2 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide
Intel
®

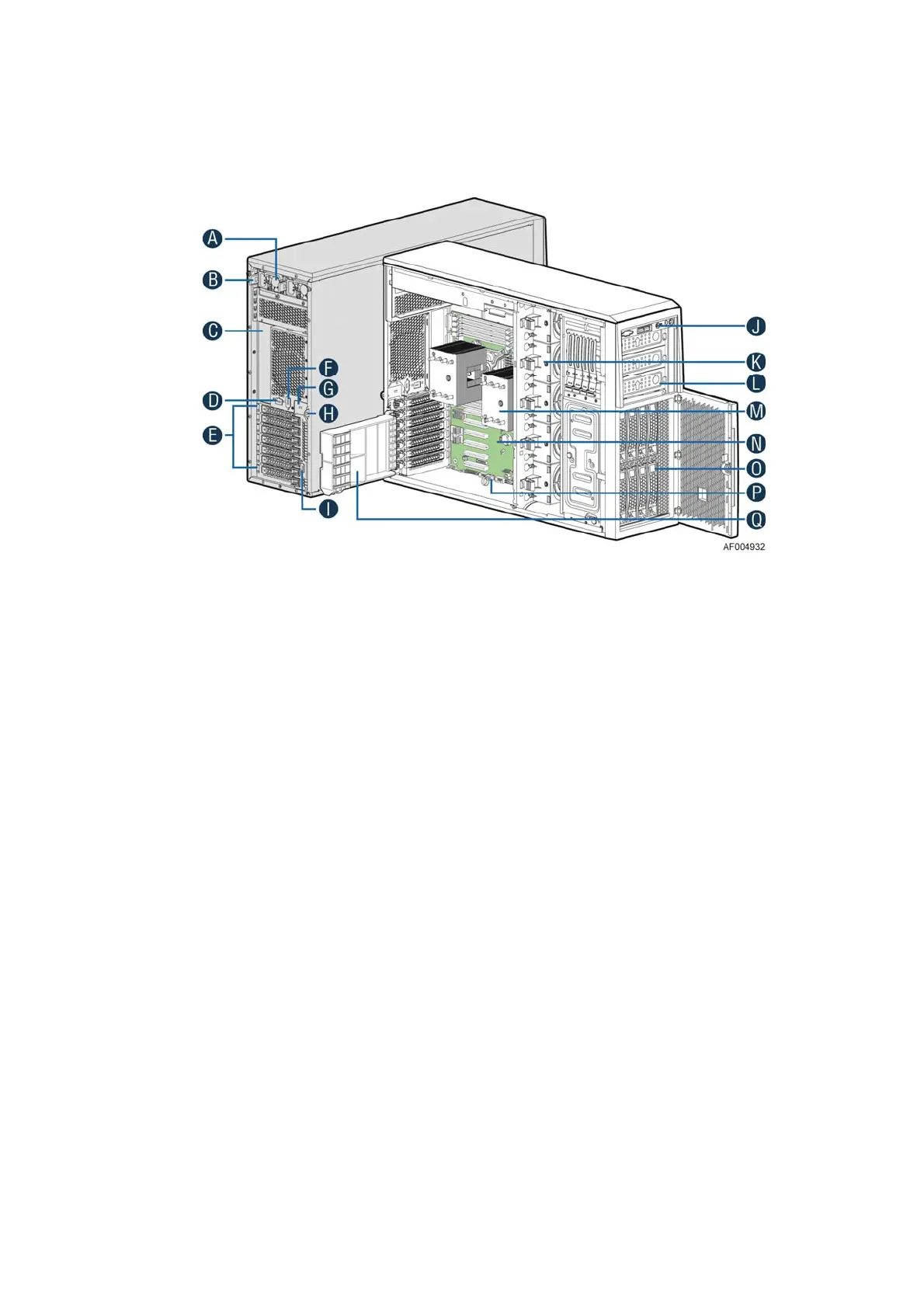

Server System P4308CP4MHGC View
A. 750-W Redundant Power Supply
B. AC Input Power Connector
C. I/O Ports
D. Alternate RMM4 Knockout
E. PCI Add-in Board Slot Covers
F. Serial Port Knockout
G. A Kensington* Cable Lock Mounting Hole
H. Padlock Loop
I. Alternate RMM4 Knockout
J. Front Control Panel
K. Hot-swap System Fan
L. 5.25” Peripheral Bays
M. Heat-sink
N. Intel
®
Server Board S2600CP
O. 8x3.5” Hot-swap HDD Cage
P. Intel
®
RAID C600 Upgrade Key
Q. PCI-e Retainer
Figure 2. Intel
®
Server System P4308CP4MHGC View
/
NOTE:
Airduct is not shown.
