Hardware Installations and Upgrades
44 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

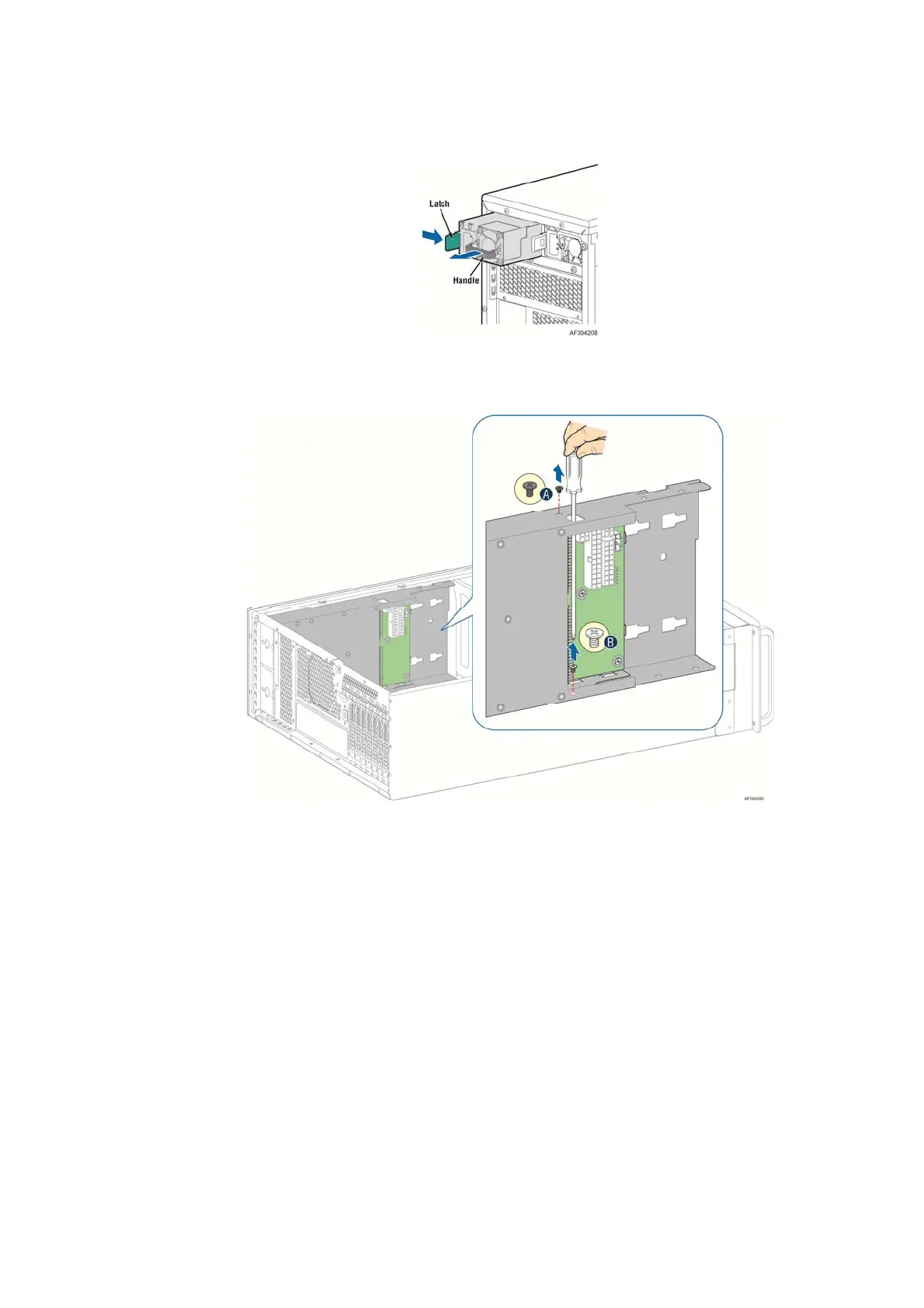

Figure 70. Removing Hot-swap Power Supply Module from Chassis
7. Loosen screws securing the bracket with power distribution board to the chassis (see letter
“A” and “B”).
Figure 71. Loosing the Bracket with Power Distribution Board from Chassis
8. Push the bracket forward to release the latch which secure the bracket then pull out the
bracket from the chassis (see letter “C”).

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
