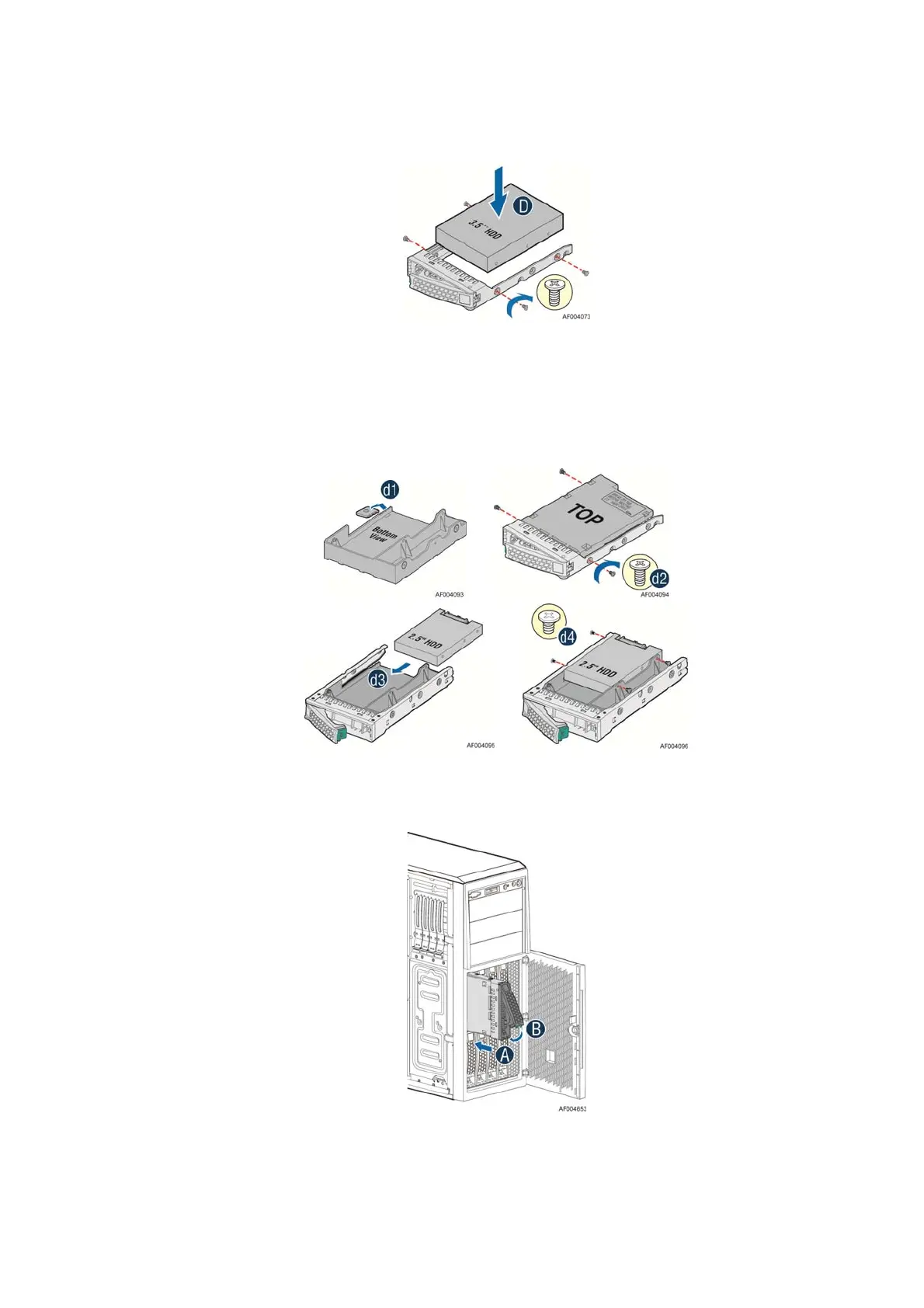

Figure 37. Installing Hard Disk Drive – Installing 3.5” HDD
For installing 2.5” Hard Disk Drive as option:
Break off the tab on the HDD interface bracket (see letter “d1”).Install the HDD interface
bracket from top. Secure the bracket with three screws as shown (see letter “d2”). Slide the 2.5"
HDD into the bracket to align the screw holes with the right and left rail (see letter “d3”). Secure
the hard disk drive using the four screws for 2.5" HDD (see letter “d4”).
Figure 38. Installing Hard Disk Drive – Installing 2.5” HDD
4. With the lever open, insert the hard disk drive assembly into the chassis (see letter “A”). Push
in the lever to lock it into place (see letter “B”).
Figure 39. Installing Hard Disk Drive – Inserting 3.5” HDD assembly
