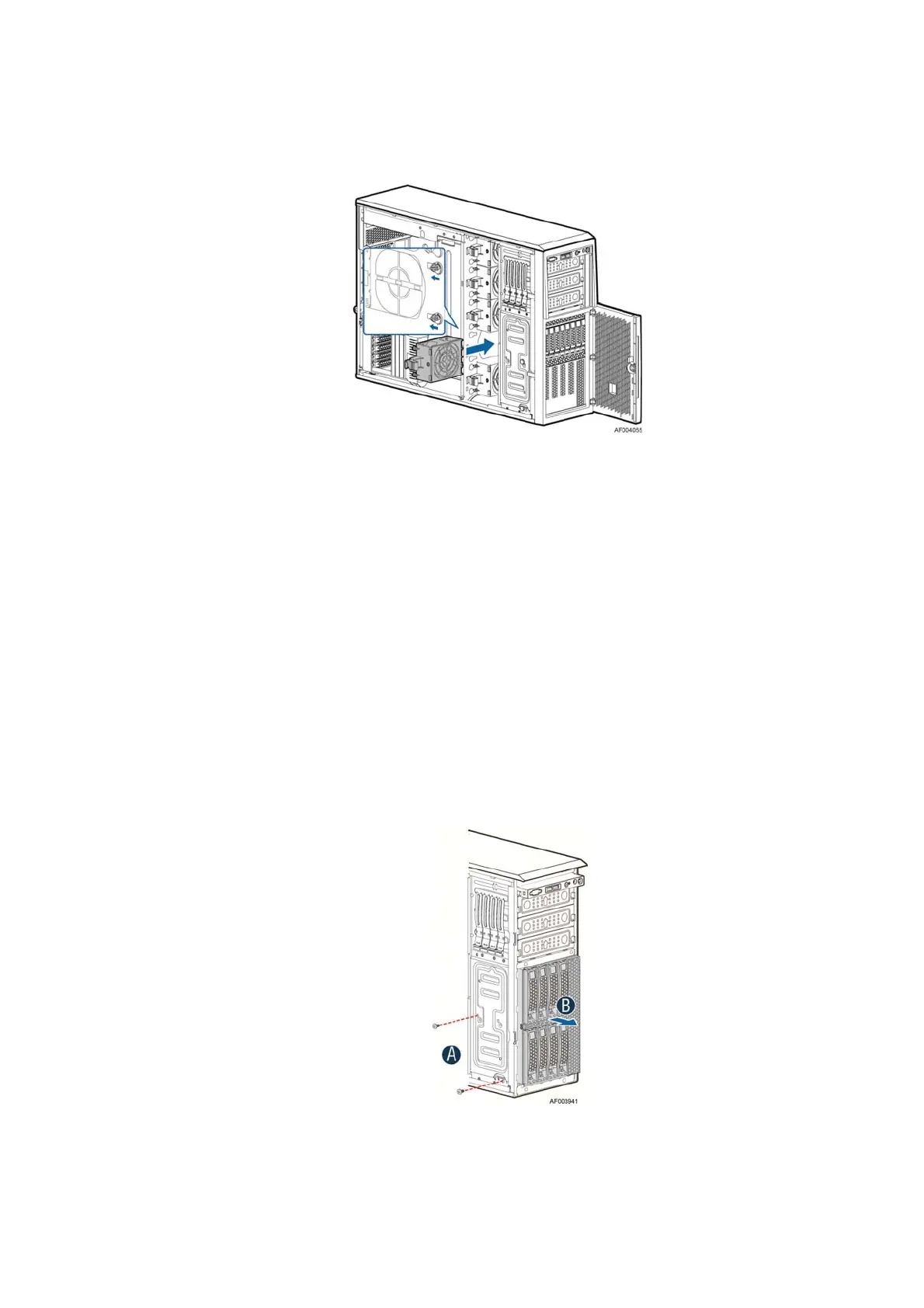

Figure 86. Installing Hot-swap Fan
Removing and Installing 8x3.5” Hot-swap Hard Drive
Cage Assembly
Removing 8x3.5” Hot-swap Hard Drive Cage Assembly
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”.
4. Remove the front bezel if it is installed. For instructions, see “Removing the Front Bezel
(Pedestal Only)”.
5. Disconnect the power and data cables to the backplane.
6. Use screwdriver to release the hot-swap hard drive cage (see letter “A”) from the chassis
and remove the hot-swap hard drive cage (see letter “B”).
Figure 87. Removing the 8x3.5” Hot-swap HDD Cage Assembly
