Hardware Installations and Upgrades
50 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide
Replacing a Fixed Fan
/
NOTE
Please pay attention to the fan cable connector color. The fan with blue connector should be
installed in fan 2 bracket and the fan with white connector should be installed in fan 1 bracket.
The fan numbering is inscribed on the chassis.
This procedure applies only to the Intel
®
Server Chassis P4000M family with fixed fan
configuration.
Removing the Fixed Fan
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”.
4. Remove the air duct if the air duct is installed. For instructions, see “Removing the
Airduct”.
5. Disconnect the appropriate fan power cable from the server board (see letter “A”).

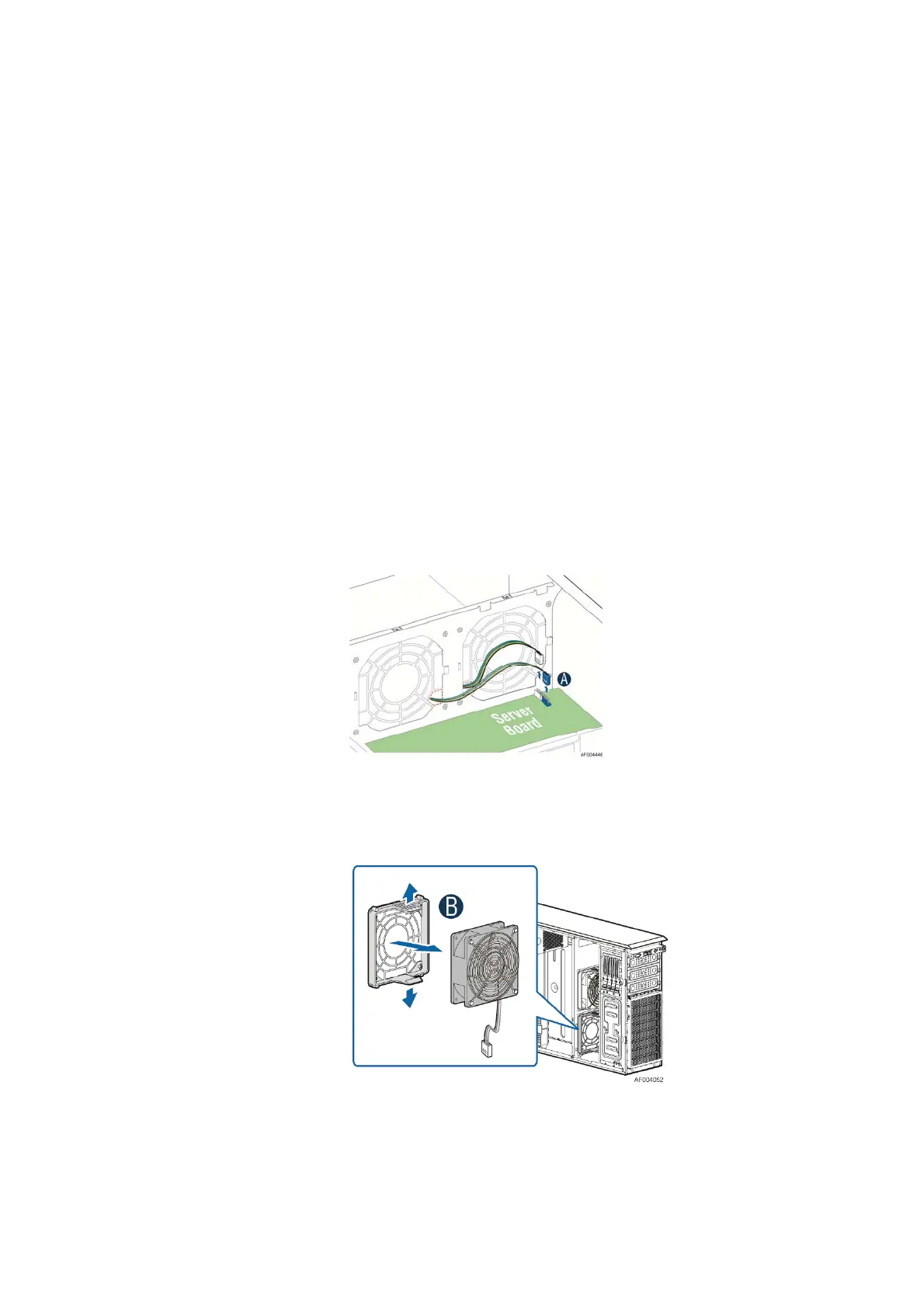

Figure 81. Disconnecting the fan power cable from the server board
6. Remove system fan by pushing the tabs outward and disengaging from its snap-in bracket
(see letter “B”).
Figure 82. Removing fixed system fan from chassis
