Cable Routing Recommendations
When you add or remove components from your server system, make sure your cables are routed
correctly before reinstalling the server system cover. Use caution to make sure no cables or wires are
pinched and that the airflow from the fans is not blocked. Use the figures below to determine the correct
cable routing.
/
NOTE:
To activate the port SATA/SAS 4-7 on the server board, a proper Intel
®
RAID C600 Upgrade Key
must be installed. For instructions, see Intel
®
RAID C600 Upgrade Key Installation Guide.

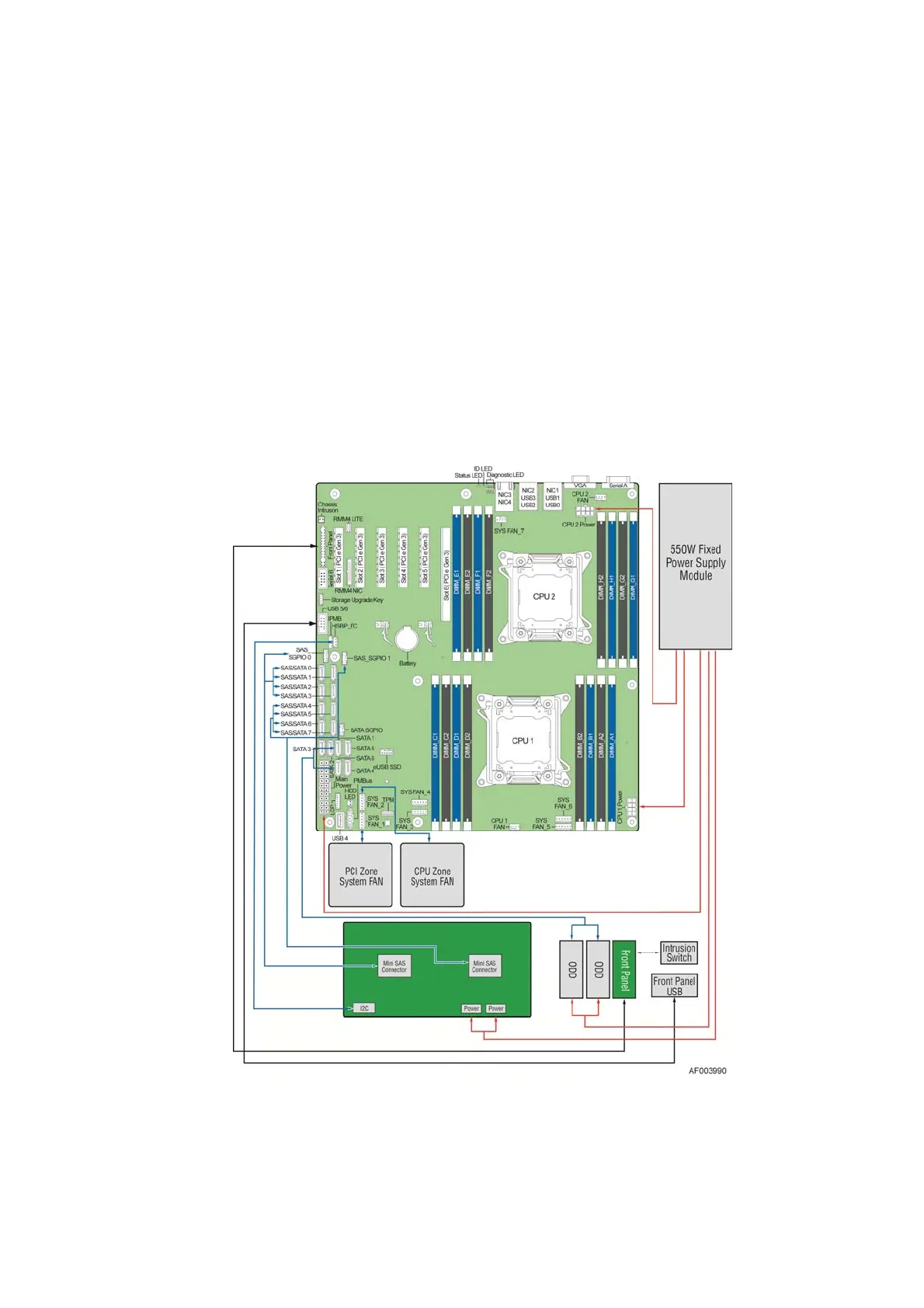

Cable connections for Intel
®
Server System P4308CP4MHEN:
Figure 16. Cable connections for Intel
®
Server System P4308CP4MHEN

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
