Intel S2600CP User Manual

Server System Features
6 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

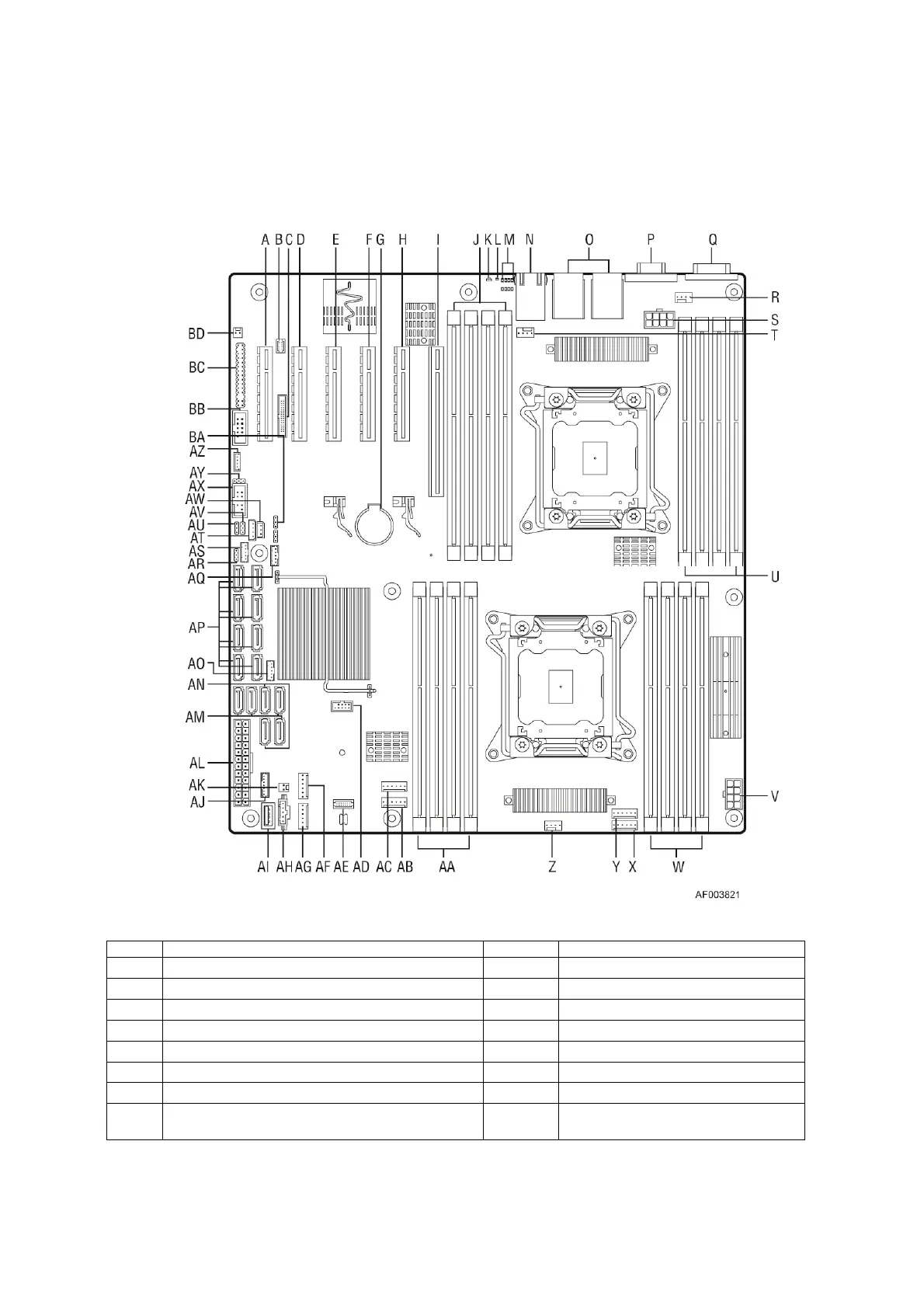

Server Board Components
This section helps you identify the components and connectors on the Intel
®
Server Board S2600CP.
Callout Description Callout Description
A Slot 1, PCI Express* Gen3 AC System Fan 4 connector
B RMM4 LITE AD Internal eUSB SSD
C RMM4 NIC AE TPM
D Slot 2, PCI Express* Gen3 AF System Fan 2
E Slot 3, PCI Express* Gen3, open-ended AG System Fan 1
F Slot 4, PCI Express* Gen3 AH PMBus
G Battery AI Type-A USB
H
Slot 5, PCI Express* Gen3, from second processor,
open-ended
AJ LCP

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
