Figure 96. Removing 3.5” hard drive backplane - remove the backplane
4. For server system with 2.5” hard drive bay, do the following:
A. Remove the three screws to release the hard drive cage;
B. Slide the hard drive cage out of the server chassis;

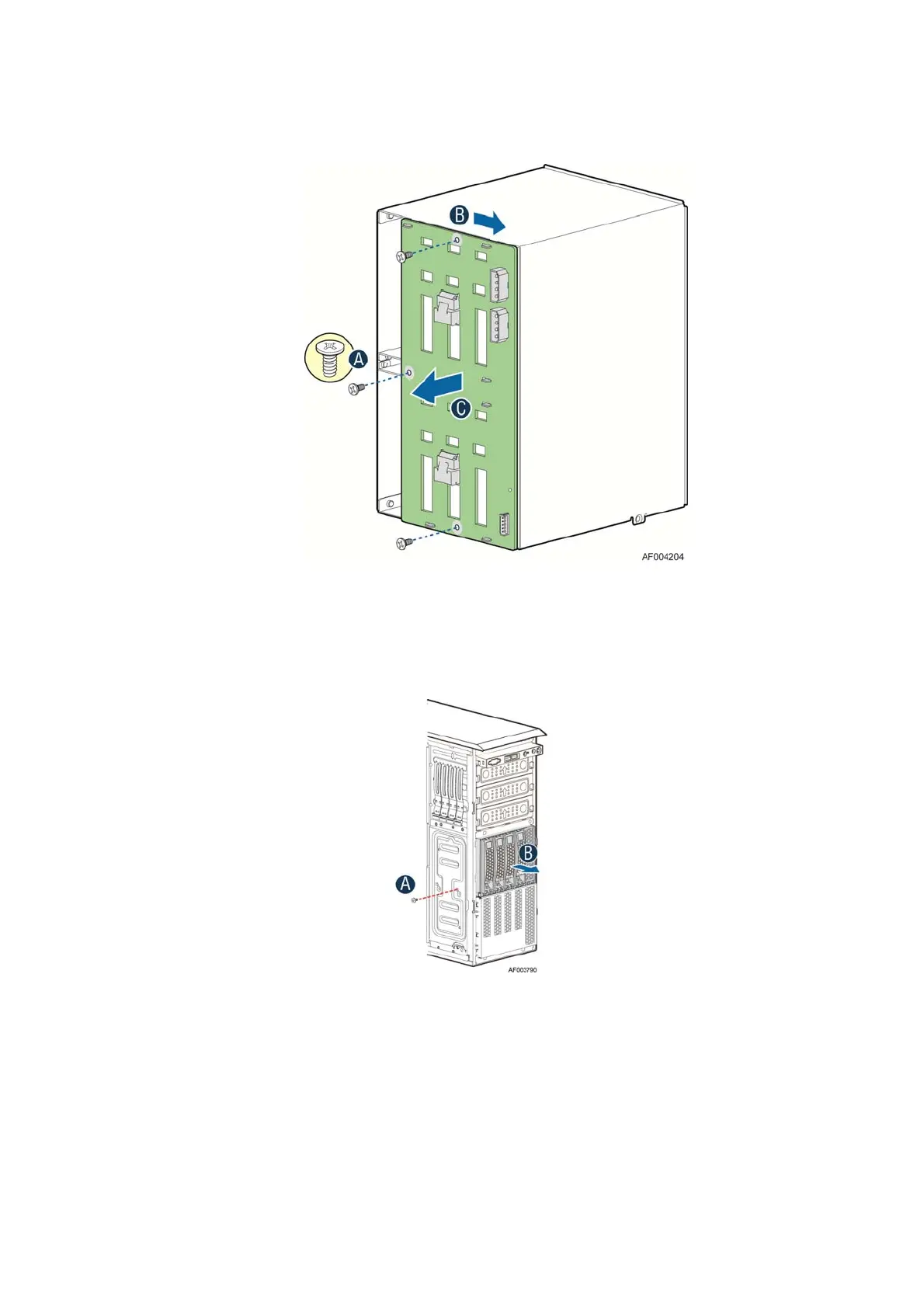

Figure 97. Removing 2.5” hard drive backplane – remove the stiffener
C. Remove the screw from the backplane board (see letter “A”);
D. Slide the backplane board to release it (see letter “B”);
E. Remove the backplane board from the four hooks and pull out of the hard drive cage (see
letter “C”).

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
