Hardware Installations and Upgrades
42 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide
Installing an Additional Hot-swap Power Supply
Module
WARNING
Hazardous voltage, current, and energy levels are present inside the power supply.
There are no user-serviceable parts inside it; servicing should be done by technically
qualified personnel.
1. Observe the safety and ESD precautions at the beginning of this book.
2. Insert finger into finger hole in middle of filler panel and remove the filler panel from
chassis.

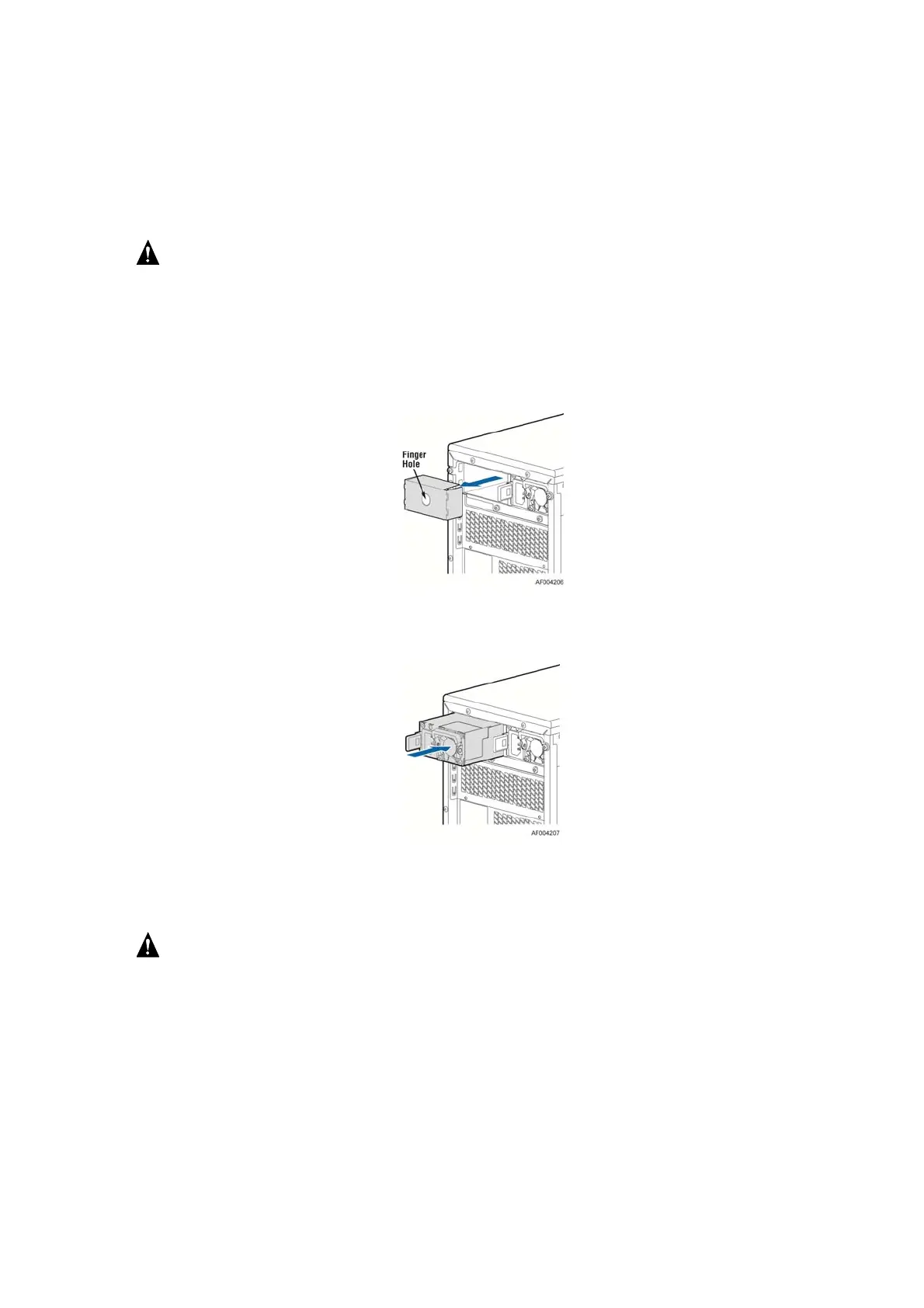

Figure 66. Removing Power Supply Filler Panel
3. Insert the power supply module into the power supply cage and push all the way until it
clicks into place.
Figure 67. Installing Additional Hot-swap Power Supply Module
Replacing a Hot Swap Power Supply Module
WARNING
Hazardous voltage, current, and energy levels are present inside the power supply.
There are no user-serviceable parts inside it; servicing should be done by technically
qualified personnel.
1. Observe the safety and ESD precautions at the beginning of this book.
2. Remove power cable from defective power supply.
3. Press up on green latch in the direction shown while pulling on handle to remove hot swap
power supply from chassis.
