Hardware Installations and Upgrades
46 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

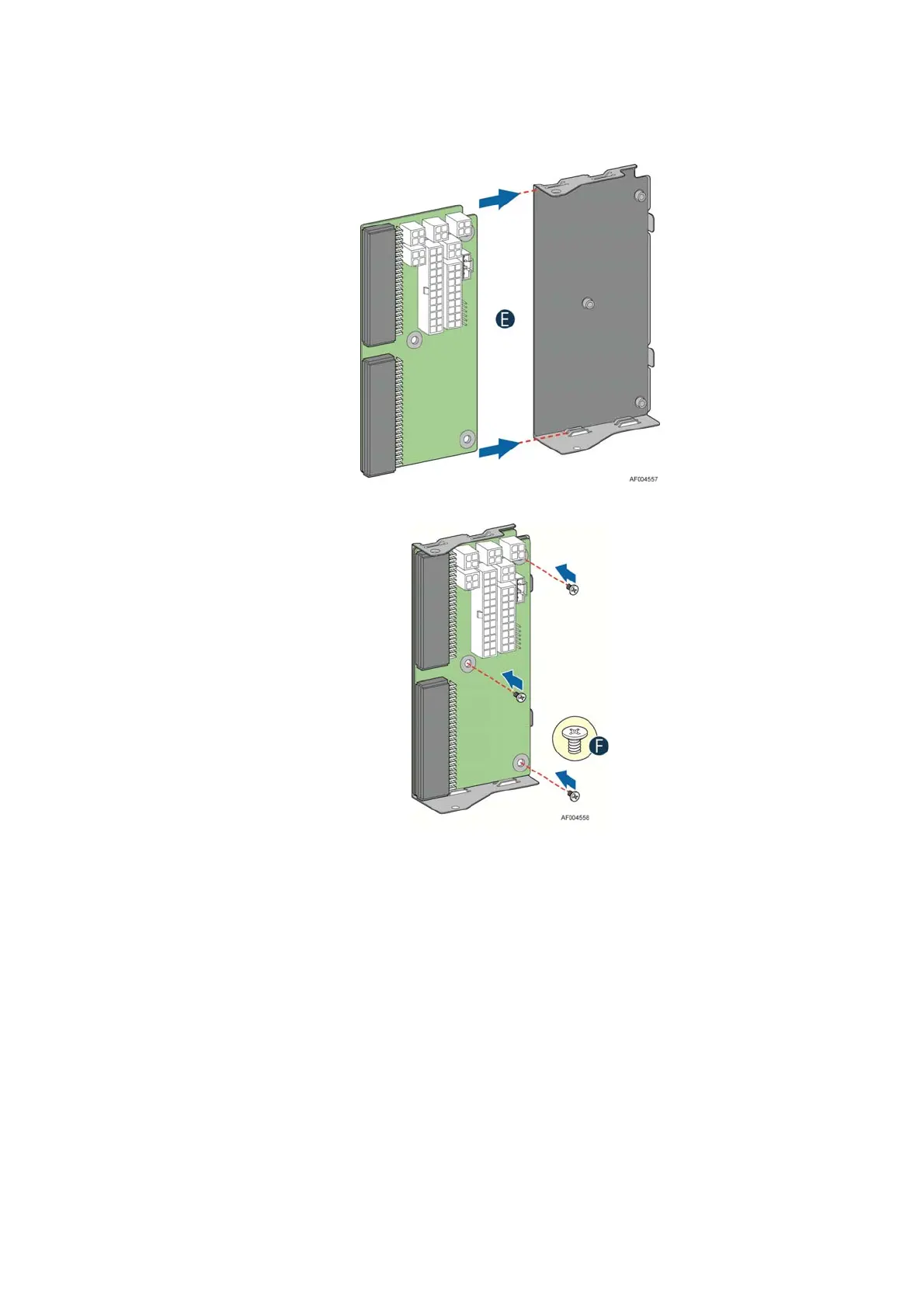

Figure 74. Sliding the New Power Distribution Board in Bracket
Figure 75. Securing the New Power Distribution Board in Bracket
11. Slide the bracket with the new power distribution board all the way into the power supply
cage (see letter “G”).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intel S2600CP and is the answer not in the manual?

Intel S2600CP Specifications

General IconGeneral
Processor SupportIntel Xeon processor E5-2600 product family
ChipsetIntel C602
Memory Slots24 DIMM slots
Form FactorSSI EEB (12" x 13")
StorageUp to 8 SATA/SAS drives
NetworkDual Gigabit Ethernet
CPU Socket TypeLGA 2011
SATASATA II and SATA III
RAID SupportRAID 0, 1, 5, 10
Network ControllerIntel 82574L
Power SupplyRedundant power supply support
ManagementIPMI 2.0
