Intel S2600CP User Manual

Hardware Installations and Upgrades
56 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

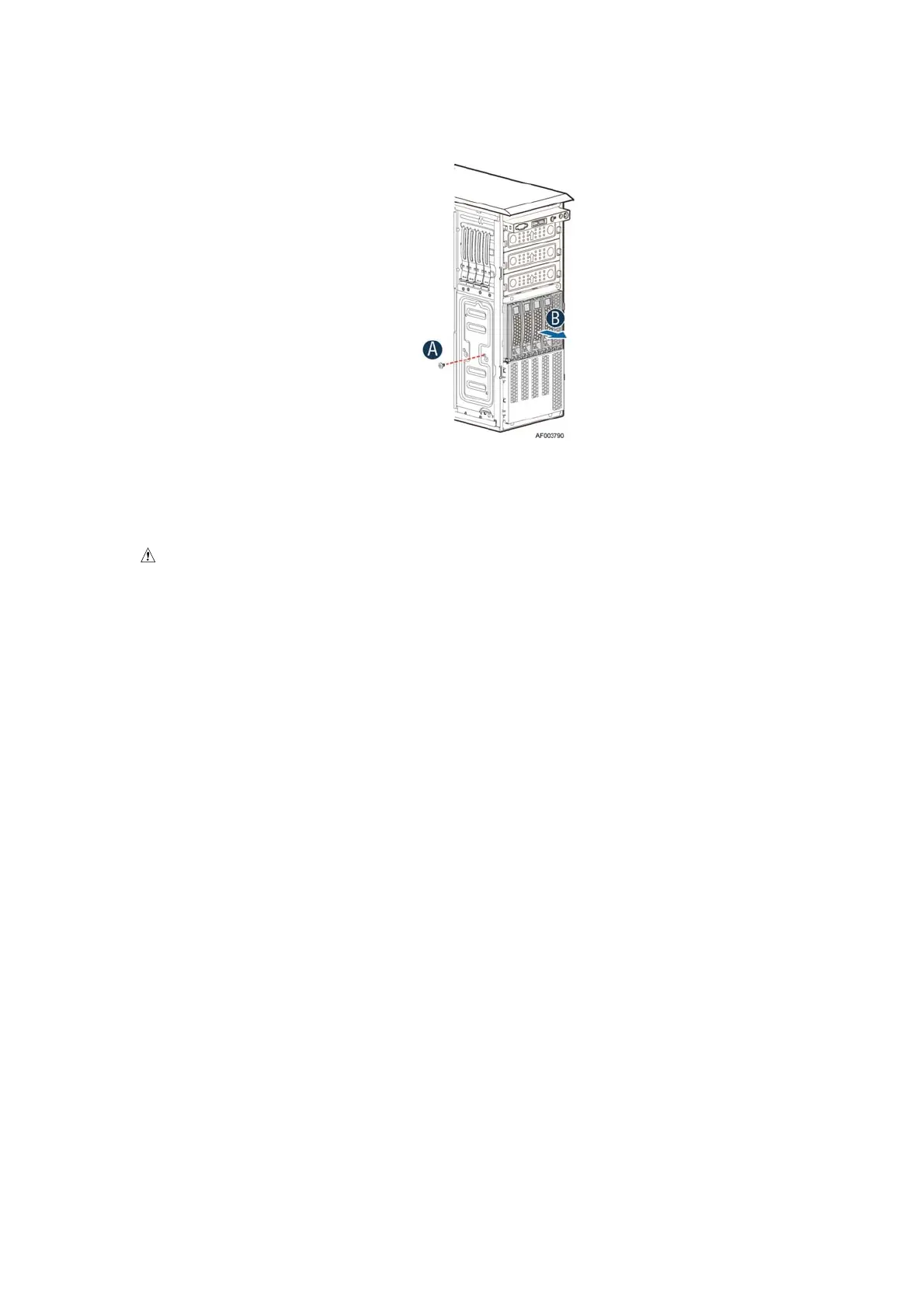

Figure 90. Removing the 8x2.5” HDD Cage Assembly
Installing 8x2.5” Hot-swap Hard Drive Cage Assembly
CAUTION
It is critical that you connect the SAS/SATA data cables correctly from the SAS/SATA
backplane to your server board or RAID controller card. Failure to do so may result in
data loss.
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”.
4. Remove the front bezel if it is installed. For instructions, see “Removing the Front Bezel
(Pedestal Only)”.
5. Install the 8x2.5” Hot-Swap Hard Drive Cage.
A. Slide the 8x2.5” Hot-Swap Drive Cage into the slot (see letter “A”).
B. Secure the Hard Drive Cage with the Screw (see letter “B”).

Intel S2600CP Specifications

General

Processor Support	Intel Xeon processor E5-2600 product family
Chipset	Intel C602
Memory Slots	24 DIMM slots
Form Factor	SSI EEB (12" x 13")
Storage	Up to 8 SATA/SAS drives
Network	Dual Gigabit Ethernet
CPU Socket Type	LGA 2011
SATA	SATA II and SATA III
RAID Support	RAID 0, 1, 5, 10
Network Controller	Intel 82574L
Power Supply	Redundant power supply support
Management	IPMI 2.0
