Intel S2600CP - Intel Server System P4208 CP4 MHGC View; Hot Swap Hard Drive Bay and Front Panel Options; Figure 3. Intel Server System P4208 CP4 MHGC View

Server System Features
Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide 3
Intel
®

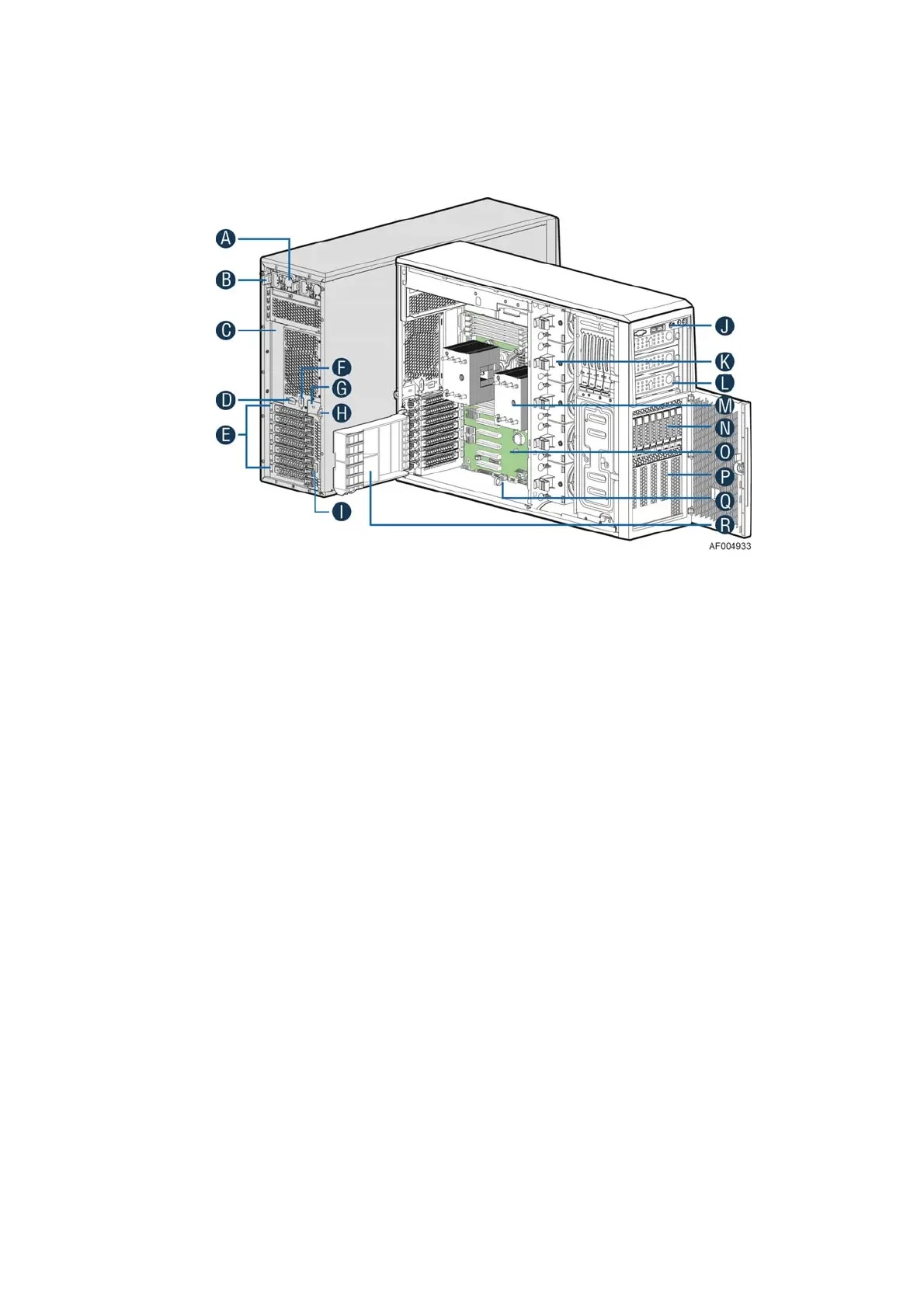

Server System P4208CP4MHGC View
A. 750-W Redundant Power Supply
B. AC Input Power Connector
C. I/O Ports
D. Alternate RMM4 Knockout
E. PCI Add-in Board Slot Covers
F. Serial Port Knockout
G. A Kensington* Cable Lock Mounting Hole
H. Padlock Loop
I. Alternate RMM4 Knockout
J. Front Control Panel
K. Hot-swap System Fan
L. 5.25” Peripheral Bays
M. Heat-sink
N. 8x3.5” Hot-swap HDD Cage
O. Intel
®
Server Board S2600CP
P. EMI Cover
Q. Intel
®
RAID C600 Upgrade Key
R. PCI-e Retainer
Figure 3. Intel
®
Server System P4208CP4MHGC View
/
NOTE:
Airduct is not shown.
Hot Swap Hard Drive Bay and Front Panel Options
The figure below shows the 8x3.5” drive bay for Intel
®
Server System P4308CP4MHEN and
P4308CP4MHGC, and 8x2.5” drive bay for Intel
®
Server System P4208CP4MHGC.
