24 Intel
®
Server Board S2600CP Intel
®
Server System P4000CP Family Service Guide

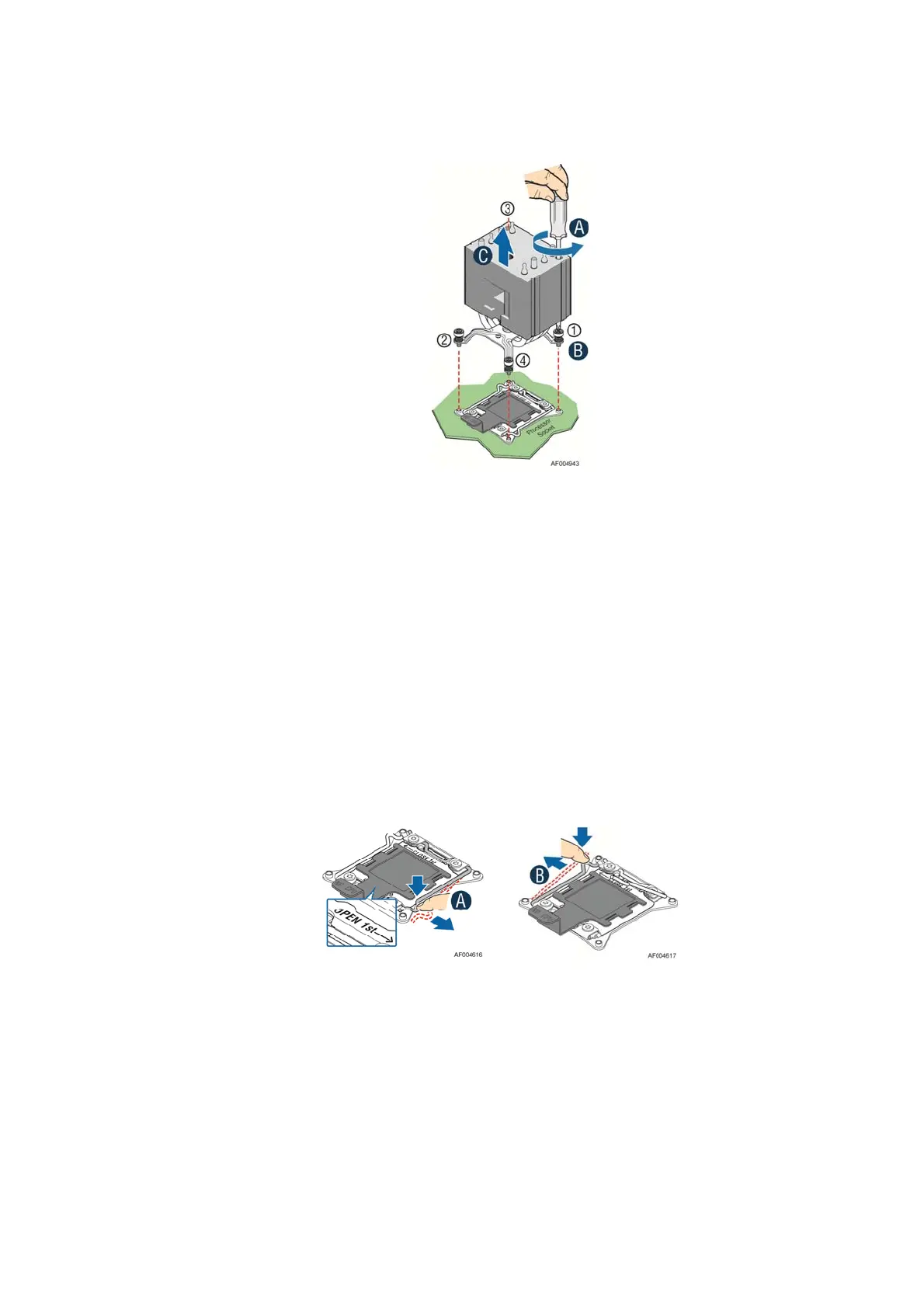

Figure 26. Removing Processor Heatsink
Installing the Processor
Caution: Processor must be appropriate: You may damage the server board if you install a
processor that is inappropriate for your server. For a web link to the list of compatible processor(s),
see “Additional Information and Software”.
Caution: ESD and handling processors: Reduce the risk of electrostatic discharge (ESD) damage
to the processor by doing the following: (1) Touch the metal chassis before touching the processor
or server board. Keep part of your body in contact with the metal chassis to dissipate the static
charge while handling the processor. (2) Avoid moving around unnecessarily.
Caution: Protective socket cover needs to be removed for proper cooling of the processor; failure
to remove the cover could result in damage to the system.
1. Open the Socket Lever. Push down the lever handle on the OPEN 1st side and away from the
socket to release it (see letter “A”). Repeat the steps to release the lever on the other side (see
letter “B”).
Figure 27. Installing Processor – Open the Socket Lever
2. Open the Load Plate. Press the locking lever slightly to raise the load plate (see letter “A”).
Open the load plate all the way (see letter “B”).
To Next Page
