13 Handling and transport
BIESSE S.p.A. © - p725k0003.fm251111
101

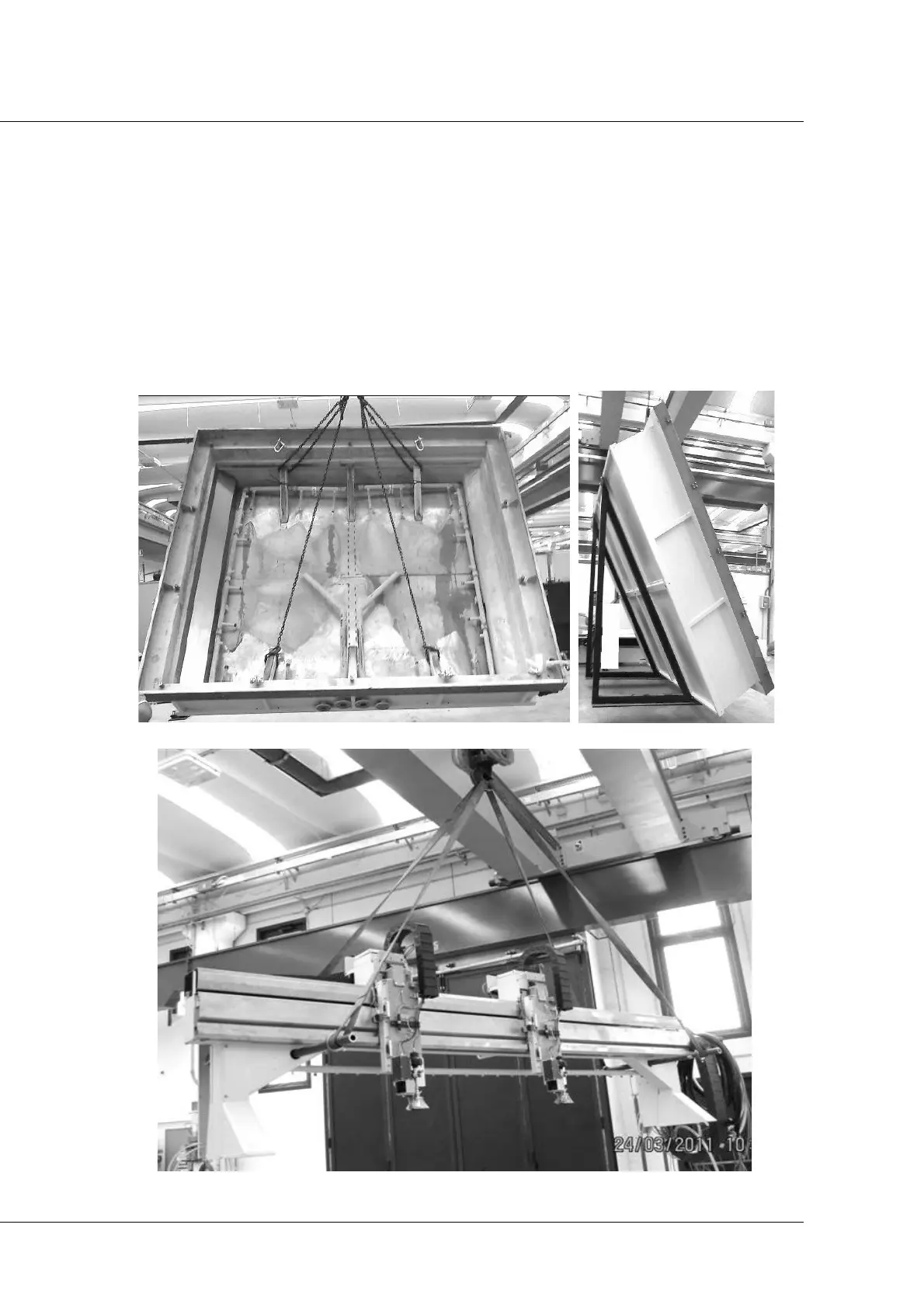

13.3.4 Lifting the Primus 322/324
To lift the machine, pass the slings through the eyebolts screwed into the special holes on the
base; the ends of the sling must embrace the eyebolts fixed to the base, and the central part must
be inserted in the hook of the lifting equipment.
To lift the main structure, use a crane or bridge crane in the manner indicated below:
Primus 322 basin: use 2 slings
Primus 324 basin: use 4 chains
Primus 322/324
