12 Technical characteristics

BIESSE S.p.A. © - p724k0003.fm251111

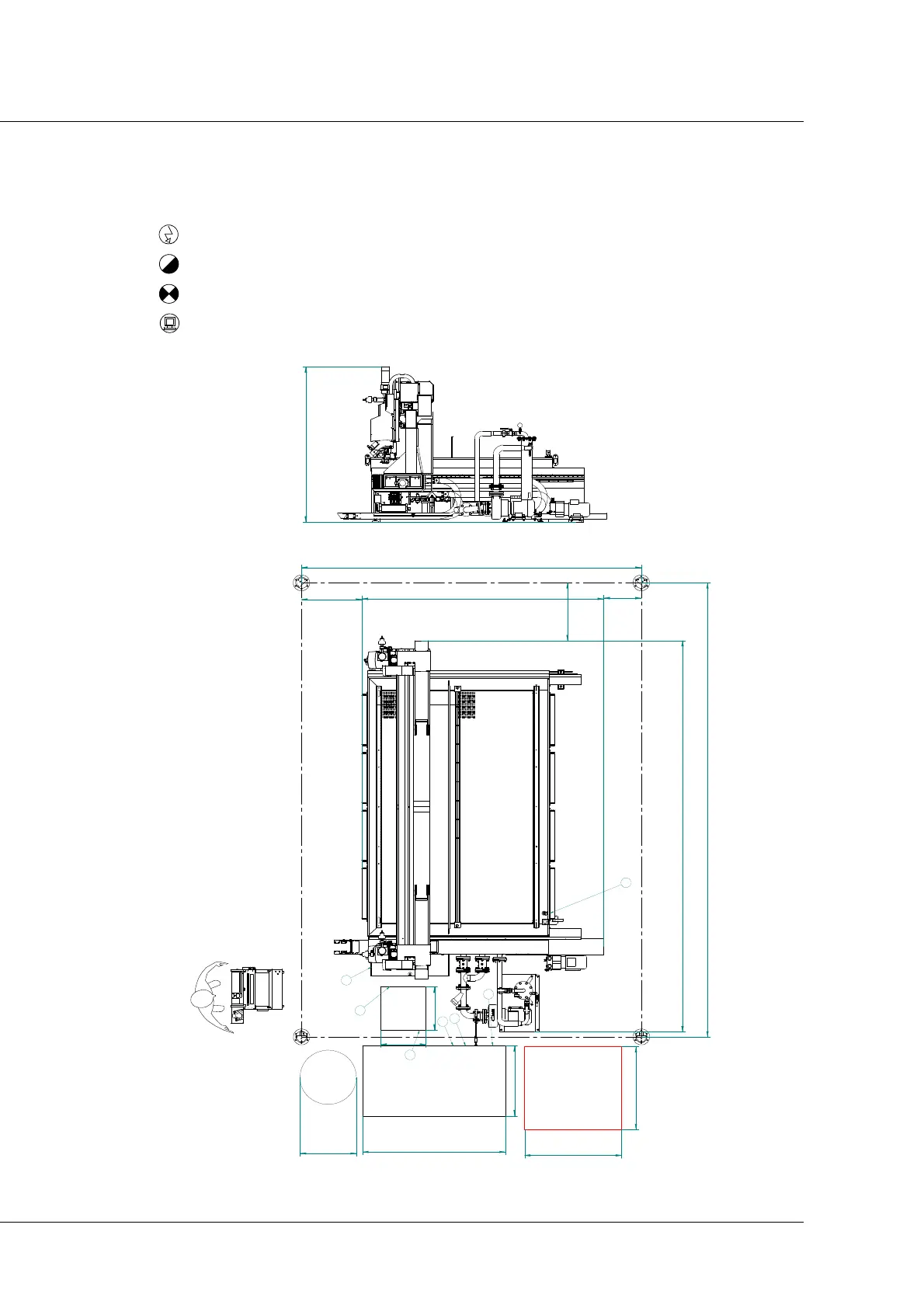

Primus 322

point of connection to the electric system; (height from the ground = 930mm)

point of connection to the pneumatic system; (height from the ground = 740mm)

point of connection to the water system; (height from the ground = 450mm)

cabinet with PC

Porta

BIG-BAG

(opt.)

Armadio

elettrico

Intensificatore

UHP

Tramoggia

6280

4510

O 750

1900

970

1290

1150

600

5410

3210

2150

800

500

800
