5 Commands and indicator devices
44
BIESSE S.p.A. © - p704k0003.fm251111

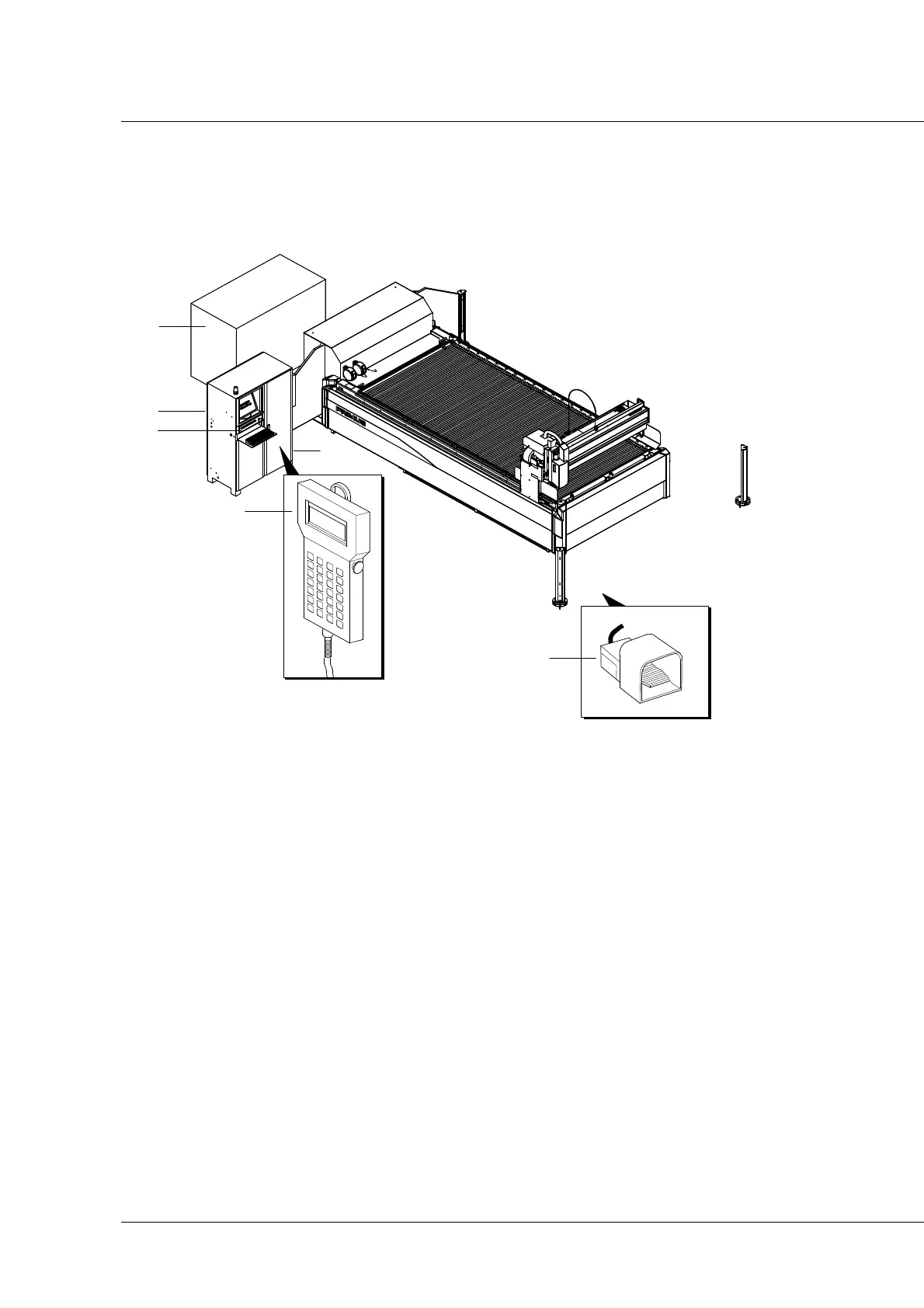

5.1 Layout of the commands and indicator devices -
Primus
A- Main switch: a detailed description is given on page 112
B- Numerical control command unit: consists of a Personal Computer (PC) with monitor and
keyboard. With the aid of special integrated software, it is used to manage machining
operations and axis movements. For further information, refer to the documentation provided
with the PC, and the Software User Manual.
C- Main control panel: a detailed description is given on page 45
D- Hand-held button pad: connected to the main control panel by means of a cable. Once
enable, it allows the operator to carry out certain operations (activating the machine in manual
and semi-automatic mode). It is used during the work table tooling phase.
E- Mobile valve command pedal: used to raise and lower the mobile valve.
F- UHP intensifier command console: for further information, refer to the manufacturer's
manual.
