Invacare®LiNX
1.

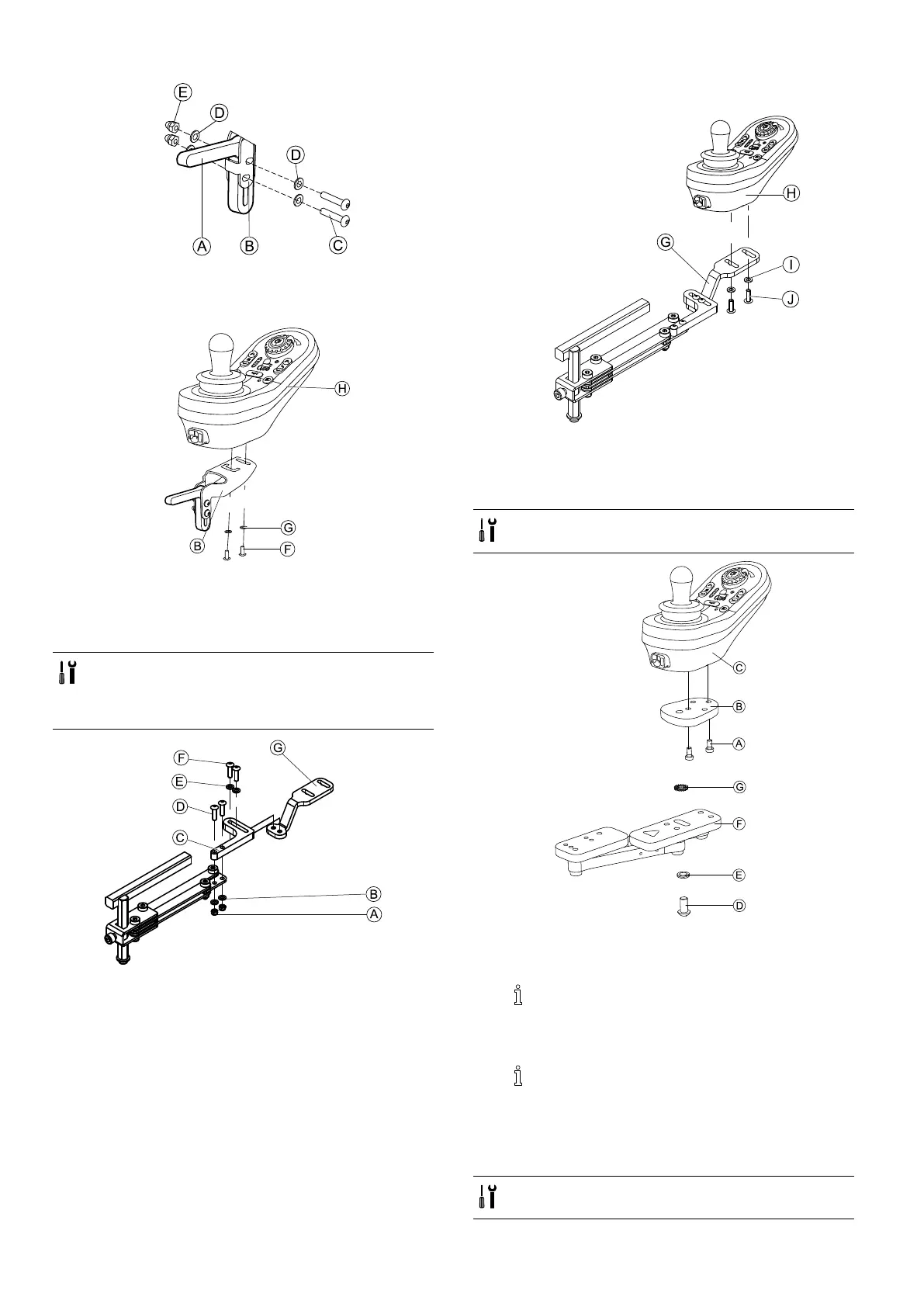

Fig.3-11
MountjoystickholderAtoremoteadapterBwith
screwsC,washersDandnutsE.
2.
Fig.3-12
MountremoteHtoremoteadapterBwithscrews
FandwashersG.
Swing-AwayRemoteHolder
•3mmAllenkey
•4mmAllenkey
•8mmwrench
•10mmwrench
Fig.3-13
1.PullscrewsDthroughbracketC,remoteholderand
washersB.
2.TightenscrewswithnutsA.
3.PullscrewsFthroughwashersE,bracketCand
bracketGandtightenscrews.
4.
Fig.3-14
TightenremoteHwithscrewsJandwashersTto
bracketG.
QuadLinkRemoteHolder
•3mmAllenkey
•5mmAllenkey
Fig.3-15
1.MountLiNXremoteadapterBwithscrewsAto
remoteC.
TheLiNXremoteadaptercanbeturned90°
rightorleftformoreadjustmentoptions.
2.MountremotetoQuadLinkFwithscrewD,
Nord-LockwasherEandserratedlockwasherG.
TightenscrewDwithamaximumtorqueof
25Nm.
RemoteHolderforAttendantonPoweredBackrest
Theremoteisttedtothewheelchairusingabracketon
thepushhandleorthepushbar .
•4mmAllenkey
•8mmwrench
